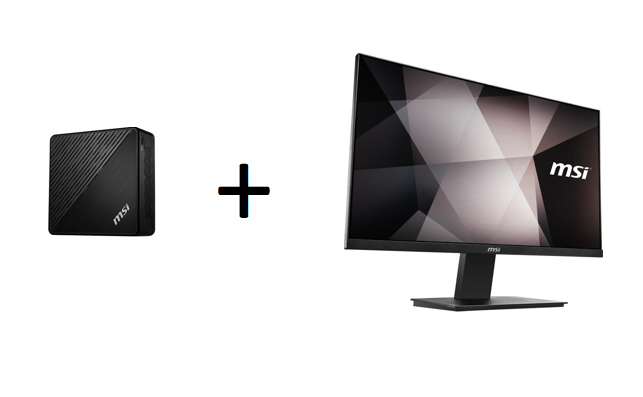

5 10M-033EU + MP241
Model 5 10M-033EU + MP241Part no. MSI-Cubi5-monitor1
141 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- 5 10M-033EU + MP241
- Part number
- MSI-Cubi5-monitor1
- Also known as
- MSI Cubi 5 10M-033EU + MP241 Intel® Core™ i3 i3-10110U 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Home Mini PC Black
Specifications
141 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 4 MB |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-down | 10 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| PCI Express slots version | 3.0 |
| Processor socket | BGA 1528 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2666,2133 MHz |
| Memory bandwidth supported by processor (max) | 41.66 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x9B41 |
| On-board graphics card OpenGL version | 4.5 |
| Number of execution units | 23 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Audio output channels | 2.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | No |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Display brightness | 220 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 196451 |
| Processor package size | 46 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC887 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| VESA mount included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC(Class B) CB/CE UL(CUL) BSMI VCCI RCM(C-Tick) |
