2M-011XRU Intel® Core™ i3 i3-4160
4 GB DDR3-SDRAM 500 GB HDD FreeDOS Mini PC Black
Model 2M-011XRUPart no. 9S6-B08311-011
131 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- Storage500 GB
- GraphicsNot available
- SpeedWi-Fi 4 (802.11n)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Speed
- Wi-Fi 4 (802.11n)
- Type
- Mini PC
- Brand
- MSI
- Category
- PCs/Workstations
- Model
- 2M-011XRU
- Part number
- 9S6-B08311-011
- Also known as
- MSI 2M-011XRU Intel® Core™ i3 i3-4160 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Mini PC Black
Specifications
131 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 4th gen Intel® Core™ i3 |
| Processor model | i3-4160 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 3.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i3-4100 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 54 W |
| Tcase | 72 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.5 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA III |
| HDD size | 2.5" |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4400 |
| Maximum on-board graphics card memory | 1.7 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x41E |
| On-board graphics card OpenGL version | 4.3 |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel® H81 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |

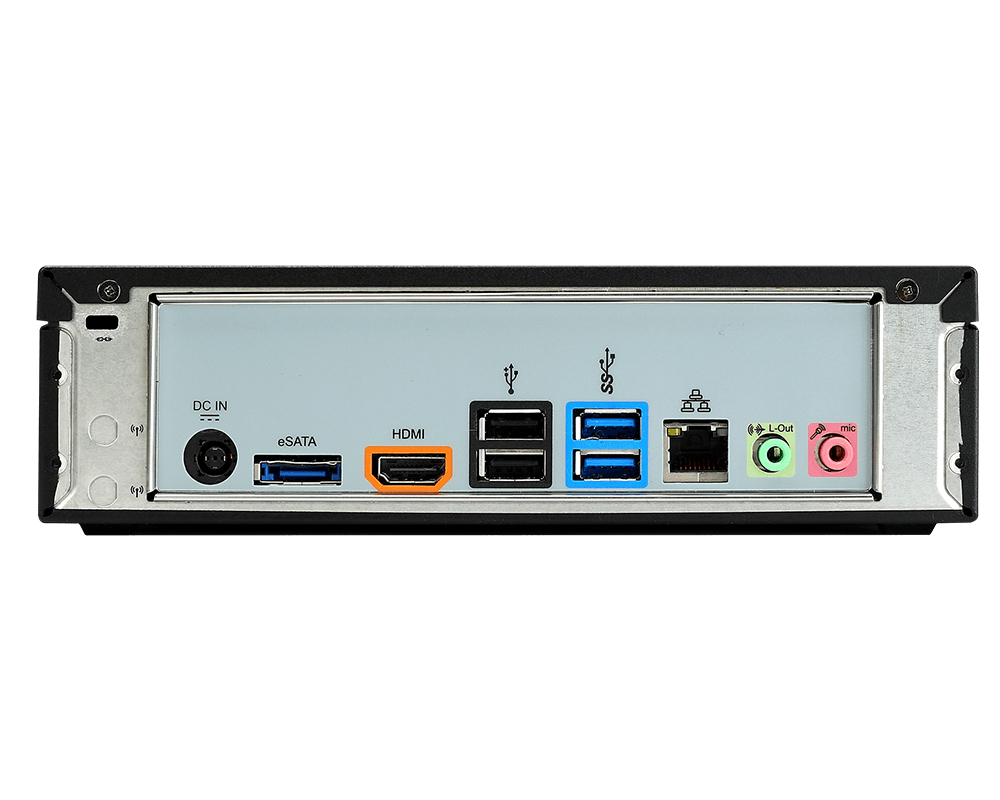

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| eSATA ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 2.3 L |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Built-in Visuals Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 77488 |
| Processor code | SR1PK |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013C |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 202 mm |
| Height | 54.8 mm |
| Weight | 1.15 kg |
