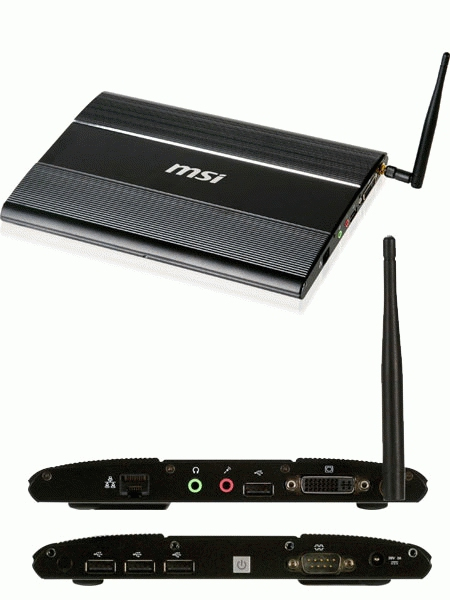

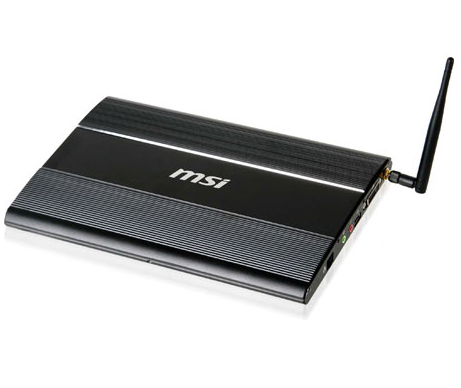

MSI 009A25-010R PC Intel Pentium Mobile N270

1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition Desktop Black

Model 009A25-010REAN 4719072110062

103 specifications

ProcessorIntel Pentium Mobile
Memory1 GB
Storage160 GB
GraphicsIntel® GMA 950
TypePC
OSWindows XP Home Edition

See all specifications

Overview

Processor: Intel Pentium Mobile
Memory: 1 GB
Storage: 160 GB
Graphics: Intel® GMA 950
Type: PC
OS: Windows XP Home Edition

Brand: MSI
Category: PCs/Workstations
Model: 009A25-010R
Part number: 009A25-010R
EAN / UPC: 4719072110062, 4719072144982
Also known as: MSI 009A25-010R PC Intel Pentium Mobile N270 1 GB DDR2-SDRAM 160 GB Intel® GMA 950 Windows XP Home Edition Desktop Black

Specifications

103 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium Mobile
Processor model	N270
Processor cores	1
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor front side bus	533 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	32-bit
Processor series	Intel Atom N200 Series
Processor codename	Diamondville
Thermal Design Power (TDP)	2.5 W
Tjunction	90 °C
Processor socket	Socket F (1207)
Number of Processing Die Transistors	47 M
Processing Die size	26 mm²
CPU multiplier (bus/core ratio)	12
Stepping	C0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB

Storage

Specification	Value
Total storage capacity	160 GB
HDD interface	SATA II
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 950
Graphics card family	Intel

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	100 Mbit/s
Wi-Fi	Yes
Networking features	Fast Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	1
Parallel ports quantity	0

Power

Specification	Value
Power supply type	DC
Power requirements	20V
Power supply	40 W

Design

Specification	Value
Chassis type	Desktop
Product colour	Black

Software

Specification	Value
Operating system installed	Windows XP Home Edition

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36331
Processor code	SLB73
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 80 °C

Weight & dimensions

Specification	Value
Width	255 mm
Depth	180 mm
Height	19 mm
Weight	1.08 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.11b,IEEE 802.11g
Certification	BSMI, CB, CE, FCC B, TUV, UL, VCCI, RoHS

Other features

Specification	Value
TV tuner integrated	No
