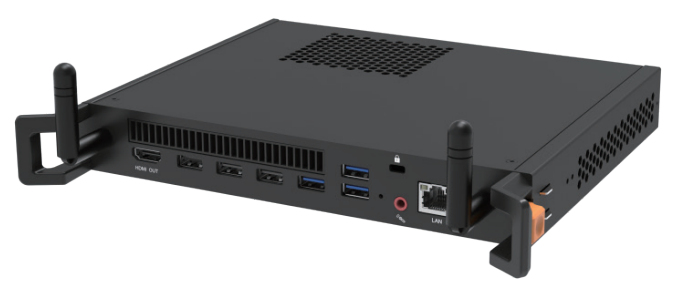

MT71E 12th Gen Intel-i5 Windows 11 Pro PC module
Model MT71EEAN 6927433607290
56 specifications
- ProcessorIntel® Core™ i5
- Memory12 GB
- Storage256 GB
- TypeMini PC
- OSWindows 11 Pro
- Weight1.2 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 12 GB
- Storage
- 256 GB
- Type
- Mini PC
- OS
- Windows 11 Pro
- Weight
- 1.2 kg
- Brand
- MAXHUB
- Category
- PCs/Workstations
- Model
- MT71E
- Part number
- MT71E
- EAN / UPC
- 6927433607290
- Also known as
- MAXHUB MT71E 12th Gen Intel-i5 Windows 11 Pro PC module
Specifications
56 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-12450H |
| Processor cores | 8 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 4 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 95 W |
| Processor base power | 45 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 12 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Antenna type | 1x1 |
| Antenna design | External |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 18 V |
| Power consumption (max) | 110 W |
| Power consumption (standby) | 2.3 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack-mounted chassis |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244.5 mm |
| Depth | 32 mm |
| Height | 207.2 mm |
| Weight | 1.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 70 mm |
| Package height | 256 mm |
| Package weight | 1.79 kg |
