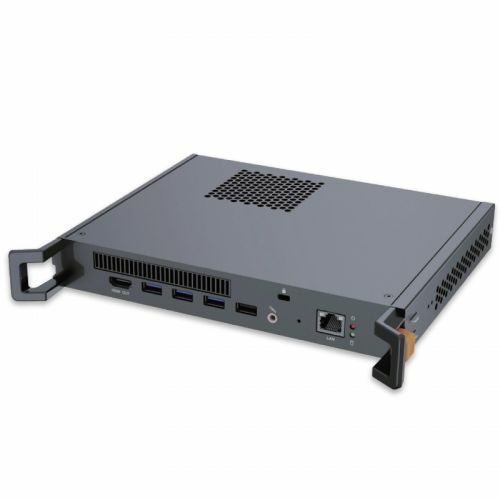

MT61N I5
Model MT61N I5Part no. MT61N I5 128GEAN 6927433603940
44 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage128 GB
- OSWindows 10 IoT
- Weight1.32 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 128 GB
- OS
- Windows 10 IoT
- Weight
- 1.32 kg
- Colour
- Black
- Brand
- MAXHUB
- Category
- PCs/Workstations
- Model
- MT61N I5
- Part number
- MT61N I5 128G
- EAN / UPC
- 6927433603940
- Also known as
- MAXHUB MT61N I5 Intel® Core™ i5 8 GB DDR4-SDRAM 128 GB Windows 10 IoT Mini PC Black
Specifications
44 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Market positioning | OPS |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 18 V |
| Power consumption (standby) | 1.1 W |
| Power consumption (typical) | 106.5 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 202 mm |
| Depth | 30 mm |
| Height | 133.5 mm |
| Weight | 1.32 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 314 mm |
| Package depth | 70 mm |
| Package height | 256 mm |
| Package weight | 1.75 kg |
