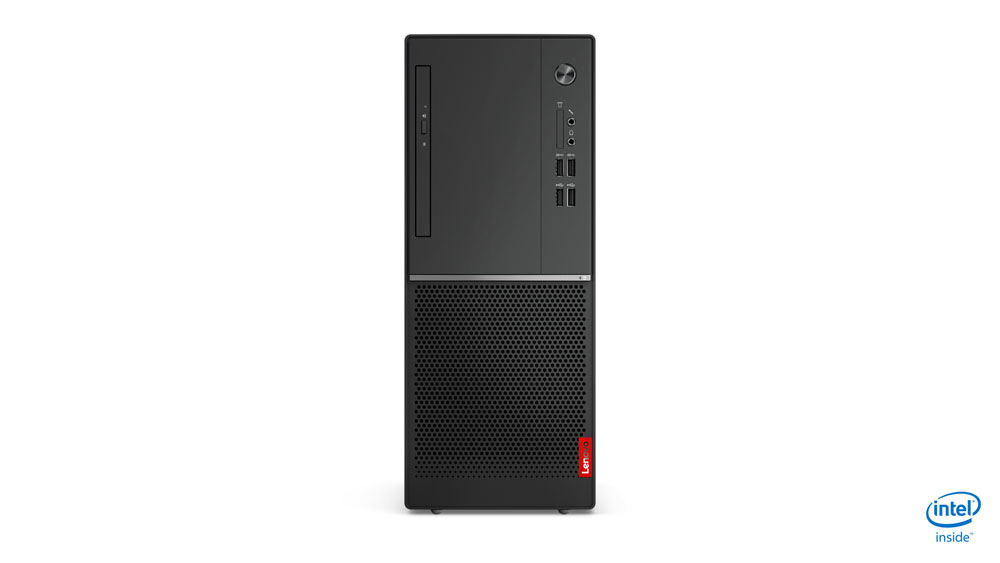

Lenovo V330 Intel® Celeron® J4005

4 GB DDR4-SDRAM 1 TB HDD Tower PC Black

Model V330Part no. 10TSS01100

115 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage1 TB
GraphicsNot available
TypePC
OSNo

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: No

Brand: Lenovo
Category: PCs/Workstations
Model: V330
Part numbers: 10TSS01100, 10TS0008RU, 10TS0007RU, 10TS001JRU, 10TS001KRU, 10TS001LRU +14 more
Also known as: Lenovo V330 Intel® Celeron® J4005 4 GB DDR4-SDRAM 1 TB HDD Tower PC Black

Specifications

115 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J4005
Processor cores	2
Processor threads	2
Processor boost frequency	2.7 GHz
Processor frequency	2 GHz
Processor cache	4 MB
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Gemini Lake
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express configurations	1x2, 1x2+2x1, 1x4, 2x1, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1090
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Memory clock speed	2400 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 600
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	250 MHz
On-board graphics card burst frequency	700 MHz
On-board graphics card dynamic frequency (max)	700 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3185
Number of execution units	12

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel SoC

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

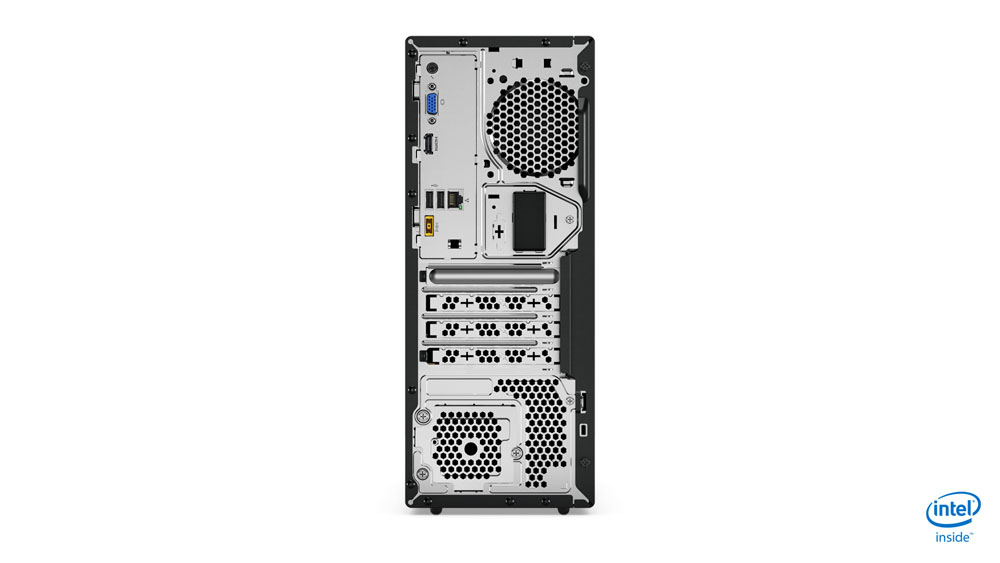

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Tower
Volume	15 L
Placement supported	Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	0.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	128992
Processor package size	25 x 24 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	145 mm
Depth	275 mm
Height	360 mm
Weight	4.8 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
