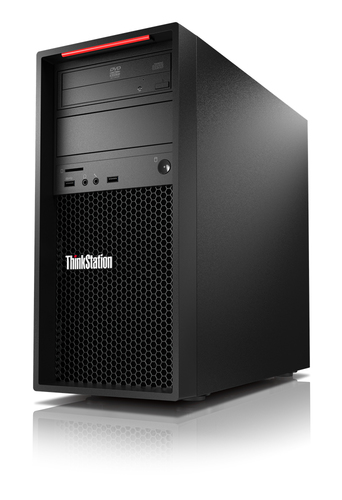

Lenovo TS P520c W-2223 16GB 256GB W10P

Model TS P520c W-2223 16GB 256GB W10PPart no. 30BX00C1SPEAN 195477708112

95 specifications

ProcessorIntel® Xeon®
Memory16 GB
Storage256 GB
GraphicsNot available
TypeWorkstation
OSWindows 10 Pro for Workstations

See all specifications

Overview

Processor: Intel® Xeon®
Memory: 16 GB
Storage: 256 GB
Graphics: Not available
Type: Workstation
OS: Windows 10 Pro for Workstations

Brand: Lenovo
Category: PCs/Workstations
Model: TS P520c W-2223 16GB 256GB W10P
Part number: 30BX00C1SP
EAN / UPC: 195477708112
Also known as: Lenovo TS P520c W-2223 16GB 256GB W10P Intel® Xeon® DDR4-SDRAM SSD Windows 10 Pro for Workstations Tower Workstation Black

Specifications

95 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	W-2223
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.6 GHz
Processor cache	25 MB
Number of processors installed	1

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	4x DIMM
Memory clock speed	2933 MHz

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD±RW
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C422
Password protection	Yes
Password protection type	Power on, Supervisor
Trusted Platform Module (TPM)	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
LAN controller	Intel® I219-LM
Wi-Fi	No
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Power

Specification	Value
Power supply	625 W

Design

Specification	Value
Chassis type	Tower
Volume	25 L
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro for Workstations
Operating system architecture	64-bit
Operating system language	Spanish
Windows 11 free upgrade	No

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Audio

Specification	Value
Audio chip	Realtek ALC662
Audio system	High Definition Audio

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width	175 mm
Depth	426 mm
Height	376 mm
Weight	14.5 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver, GREENGUARD
