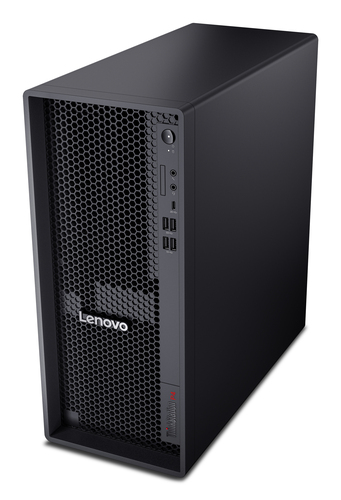

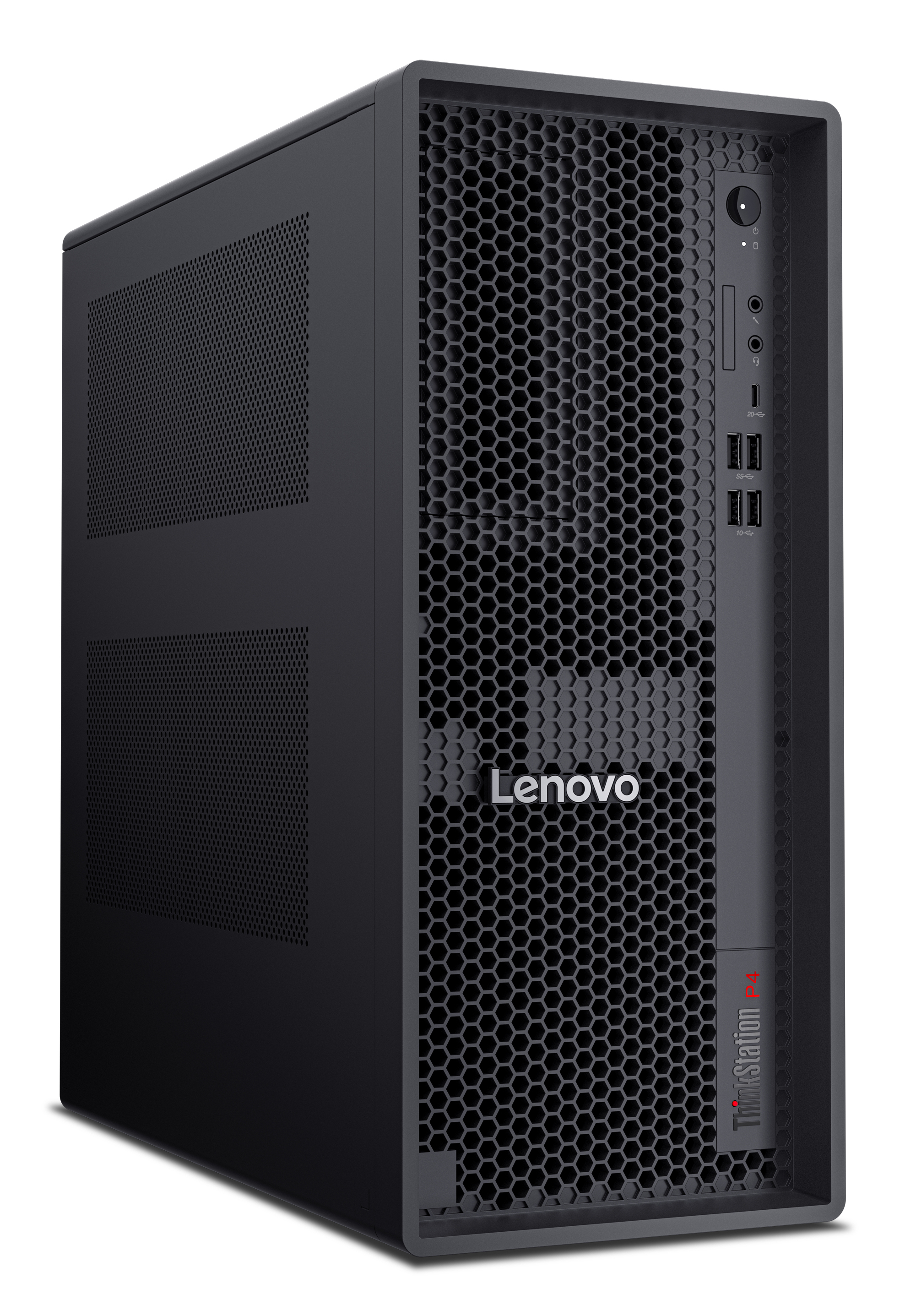

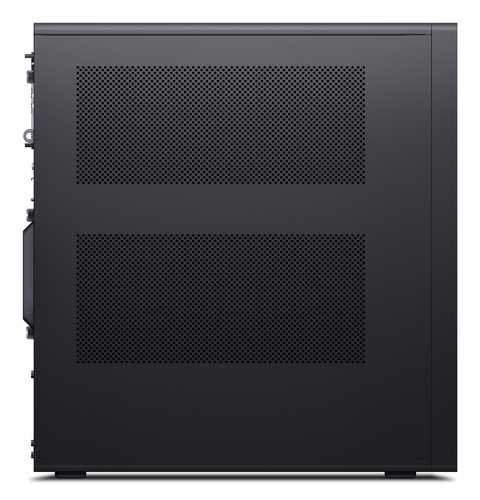

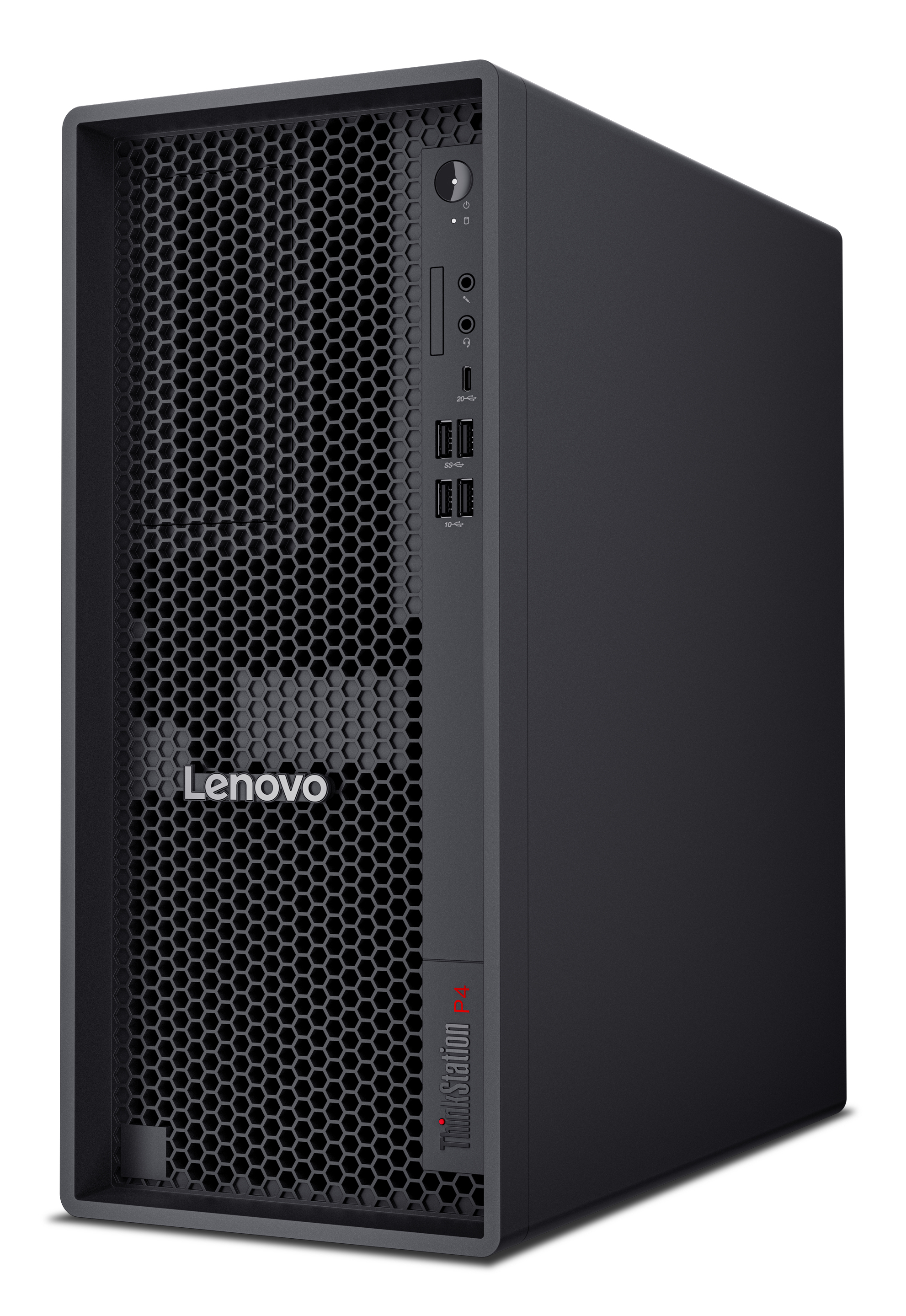

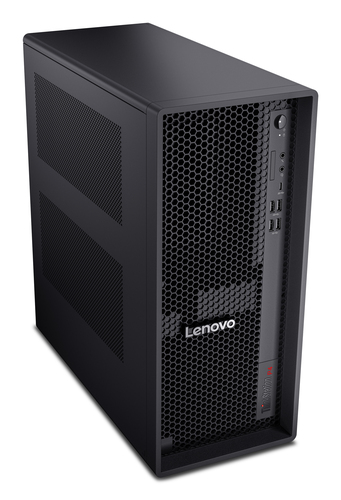

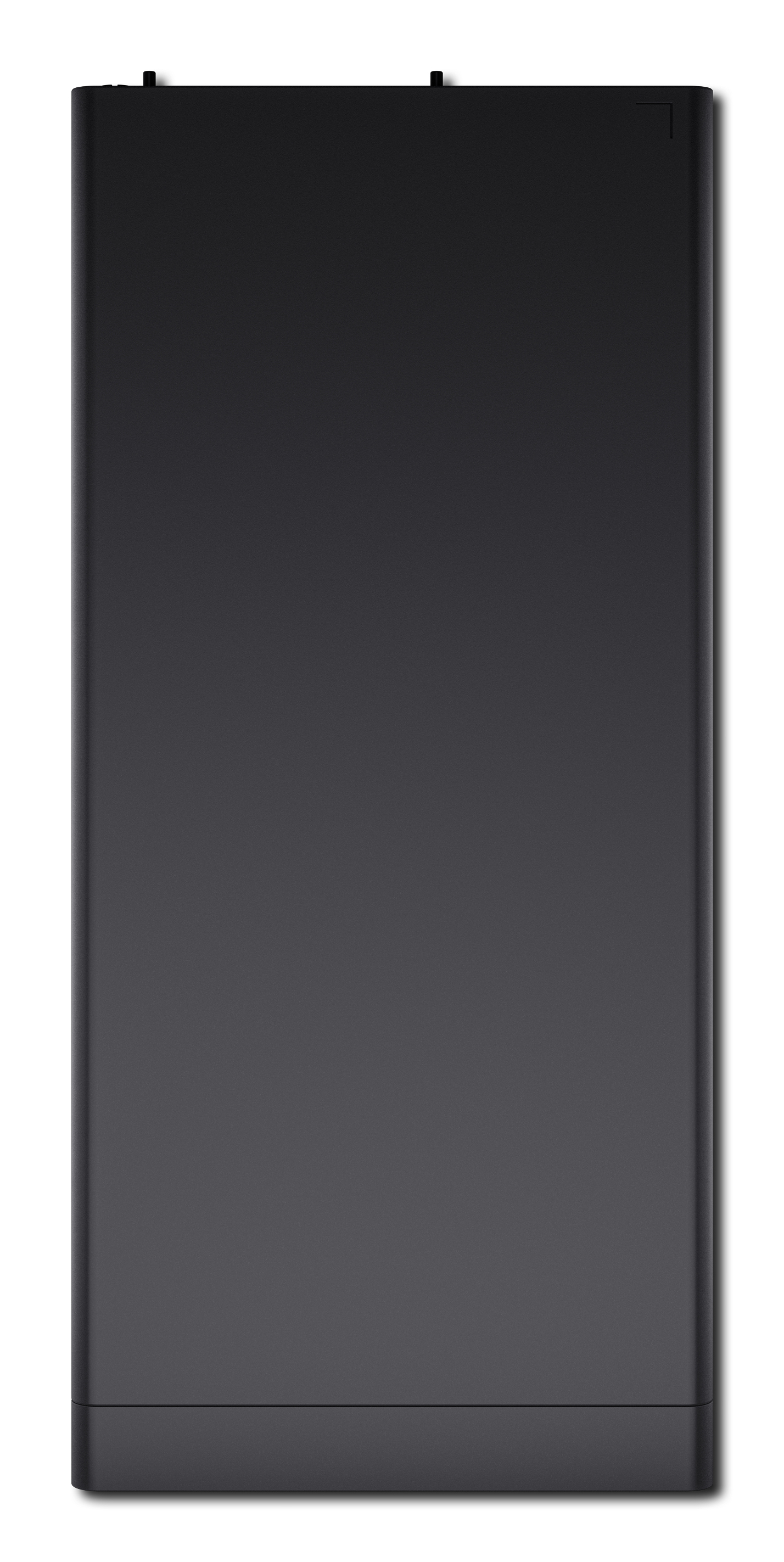

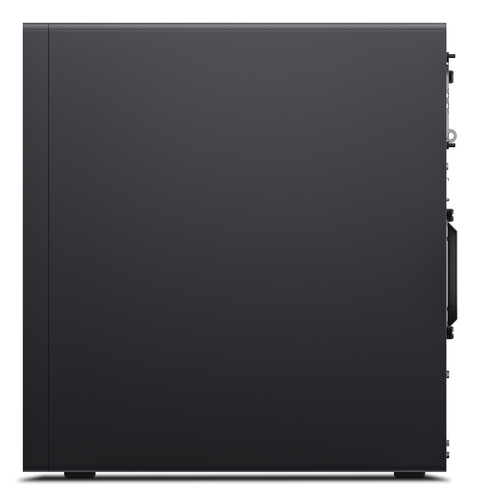

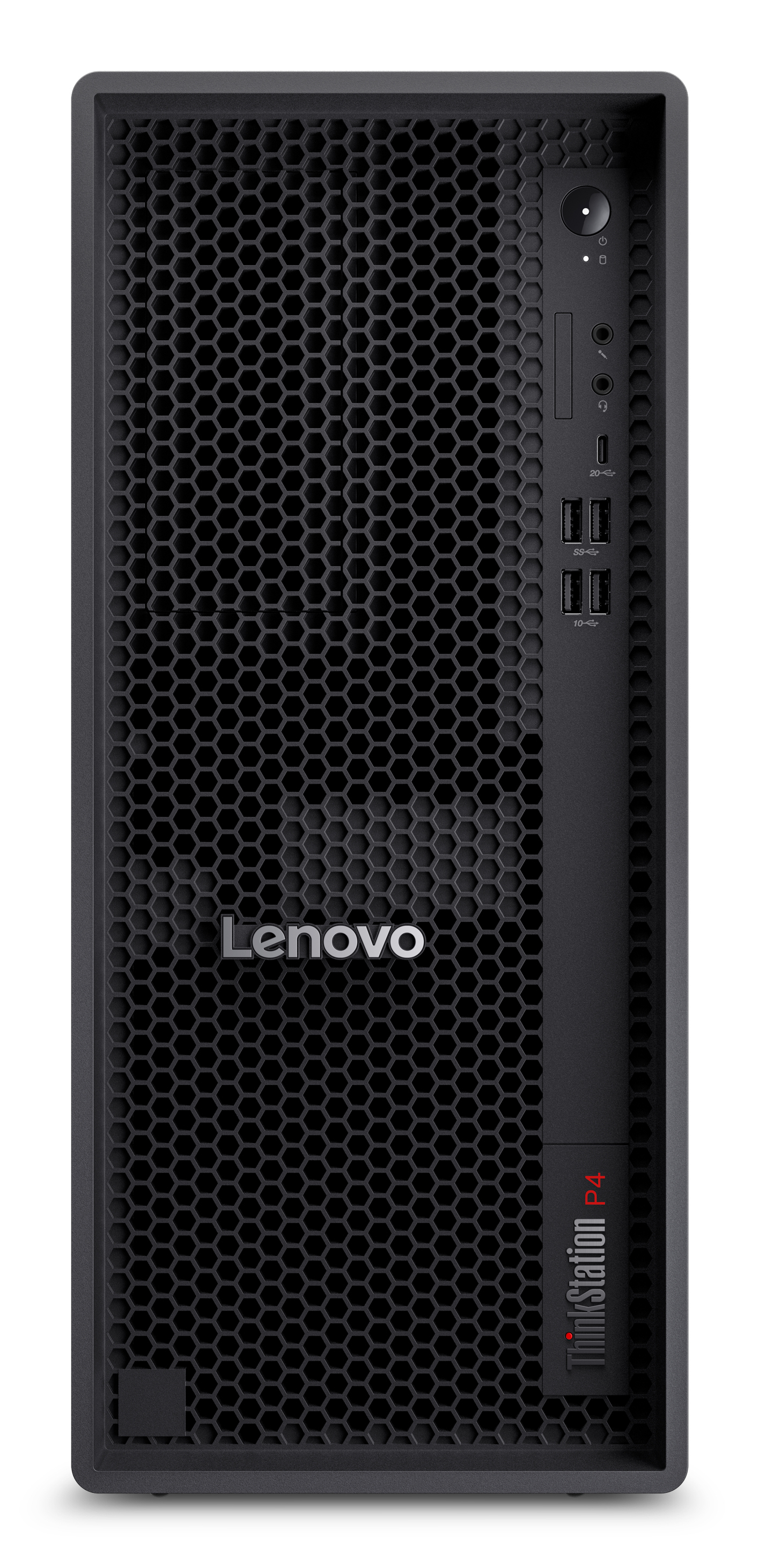

ThinkStation P4
Model ThinkStation P4Part no. 30KN0047USEAN 199276554444
98 specifications
- ProcessorAMD Ryzen™ 7 PRO
- Memory32 GB
- Storage512 GB
- GraphicsNVIDIA RTX A1000
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- AMD Ryzen™ 7 PRO
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- NVIDIA RTX A1000
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkStation P4
- Part numbers
- 30KN0047US, 30KN003NBF, 30KN003MBF, 30KN003RBF, 30KN003PBF, 30KN0043US +34 more
- EAN / UPC
- 199276554444, 199276903143, 199276903266, 199276903273 +56 more
- Also known as
- Lenovo ThinkStation P4 AMD Ryzen™ 7 PRO PRO 9745 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A1000 Windows 11 Pro Tower PC Black
Specifications
98 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 PRO |
| Processor generation | Ryzen PRO 9000 Series |
| Processor model | PRO 9745 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.4 GHz |
| Processor frequency | 3.8 GHz |
| L2 cache | 8 MB |
| L3 cache | 32 MB |
| Processor cache type | L2 & L3 |
| Thermal Design Power (TDP) | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 5600 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX A1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD PRO 675 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Realtek RTL8125BP-CG |
| Wi-Fi | No |

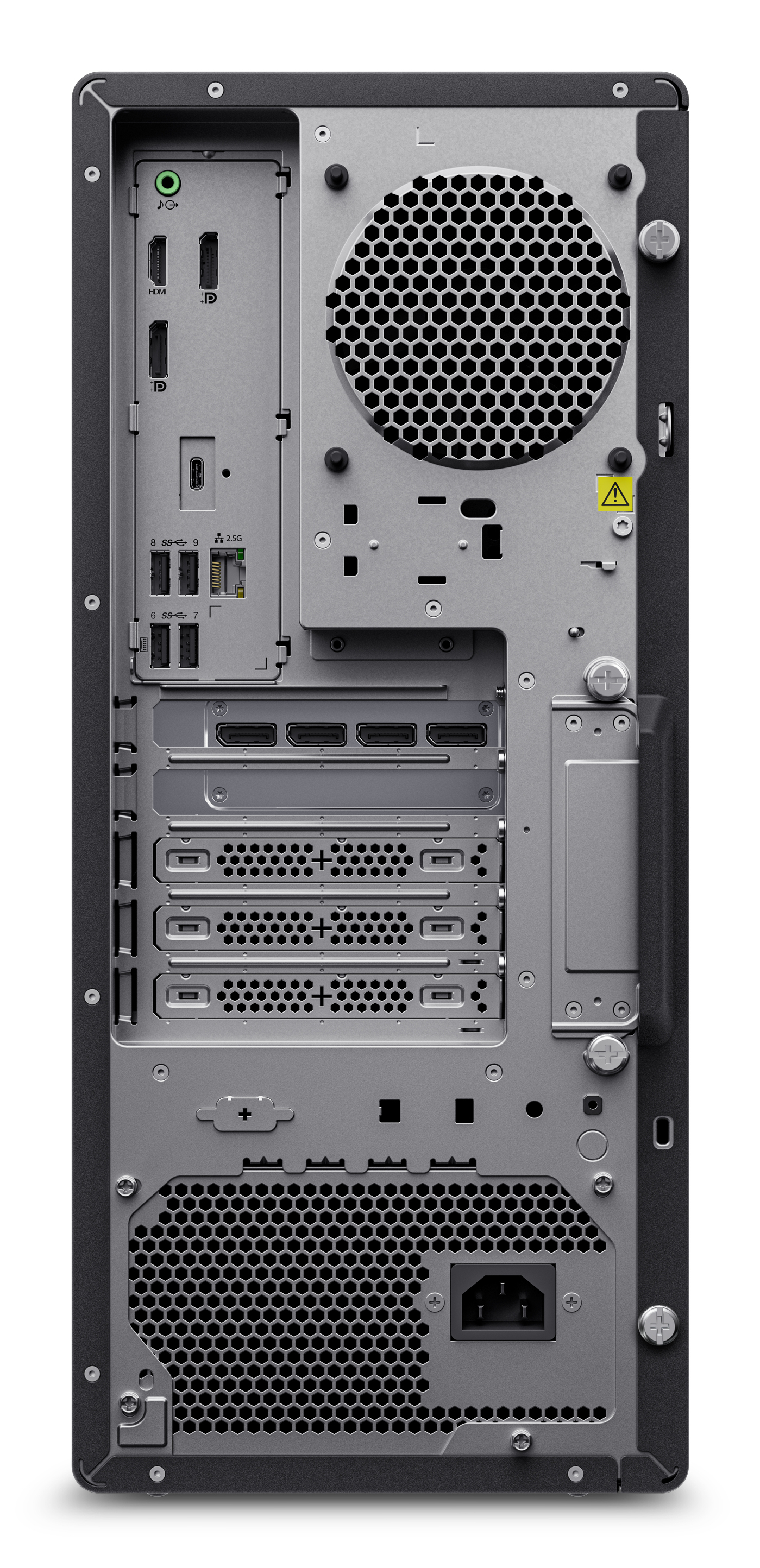

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4/2.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 29.9 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system language | English, French, German, Dutch, Italian |
| Bundled software | Lenovo AI Now |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC623 |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 401.5 mm |
| Height | 415 mm |
| Weight | 8.75 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ISV Certifications |
