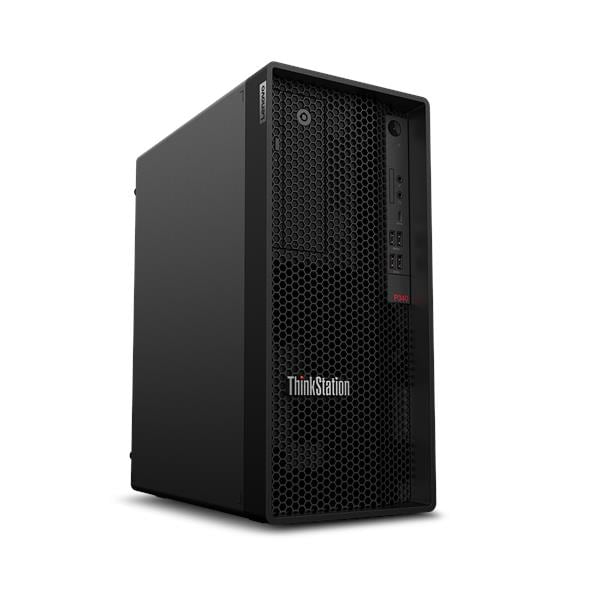

ThinkStation P340 Tower
Model ThinkStation P340 TowerPart no. 30DJS41H00EAN 195348315333
58 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- GraphicsNVIDIA® Quadro® P400
- TypeWorkstation
- OSNo
- Weight9.38 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Graphics
- NVIDIA® Quadro® P400
- Type
- Workstation
- OS
- No
- Weight
- 9.38 kg
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkStation P340 Tower
- Part numbers
- 30DJS41H00, 30DJS4N300, 30DH00GMAU, 30DHS01000, 30DHS04B00, 30DHS04G00 +27 more
- EAN / UPC
- 195348315333, 195713120432, 195477085954, 195477085985 +27 more
- Also known as
- Lenovo ThinkStation P340 Tower Intel® Core™ i5 i5-10500 8 GB DDR4-SDRAM NVIDIA® Quadro® P400 Workstation
Specifications
58 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-10500 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 3.1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2933 MHz |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P400 |
| Discrete graphics card memory | 2 GB |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W480 |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC623 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 315.4 mm |
| Height | 376 mm |
| Weight | 9.38 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR,EPEAT Silver,RoHS |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
