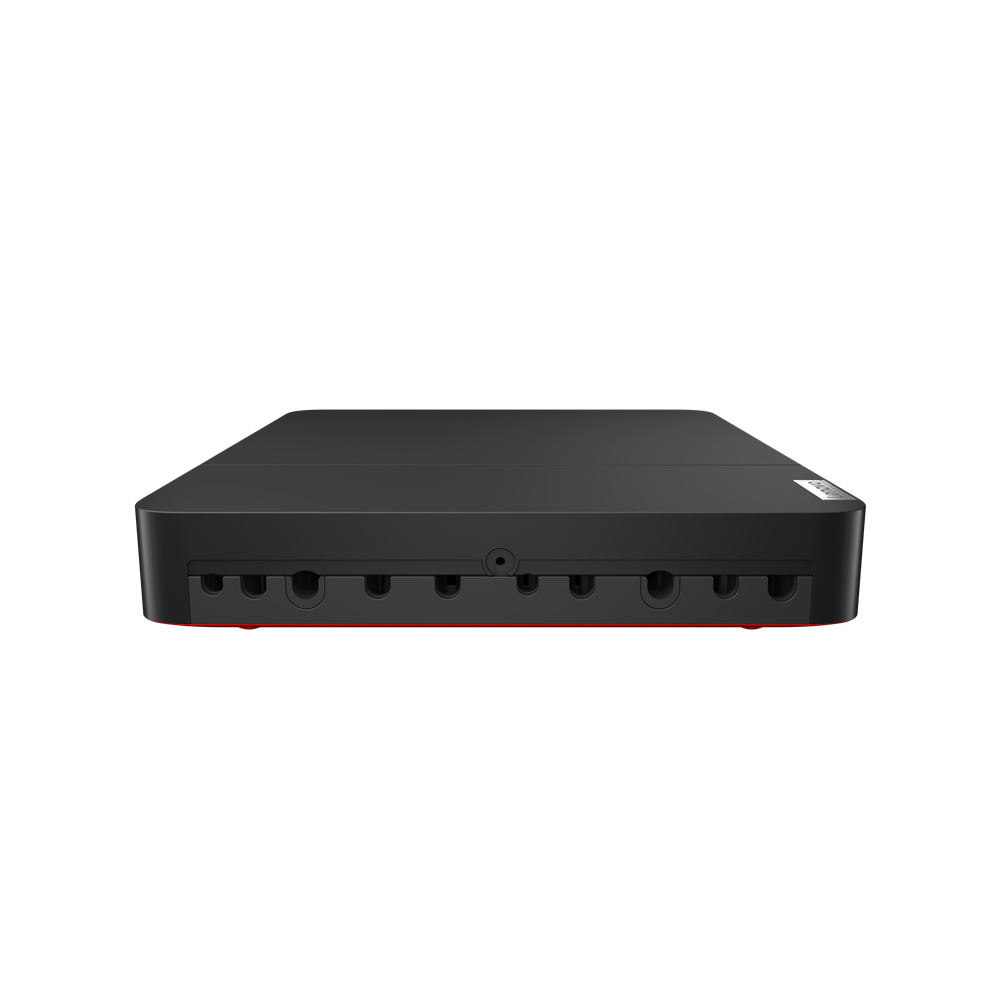

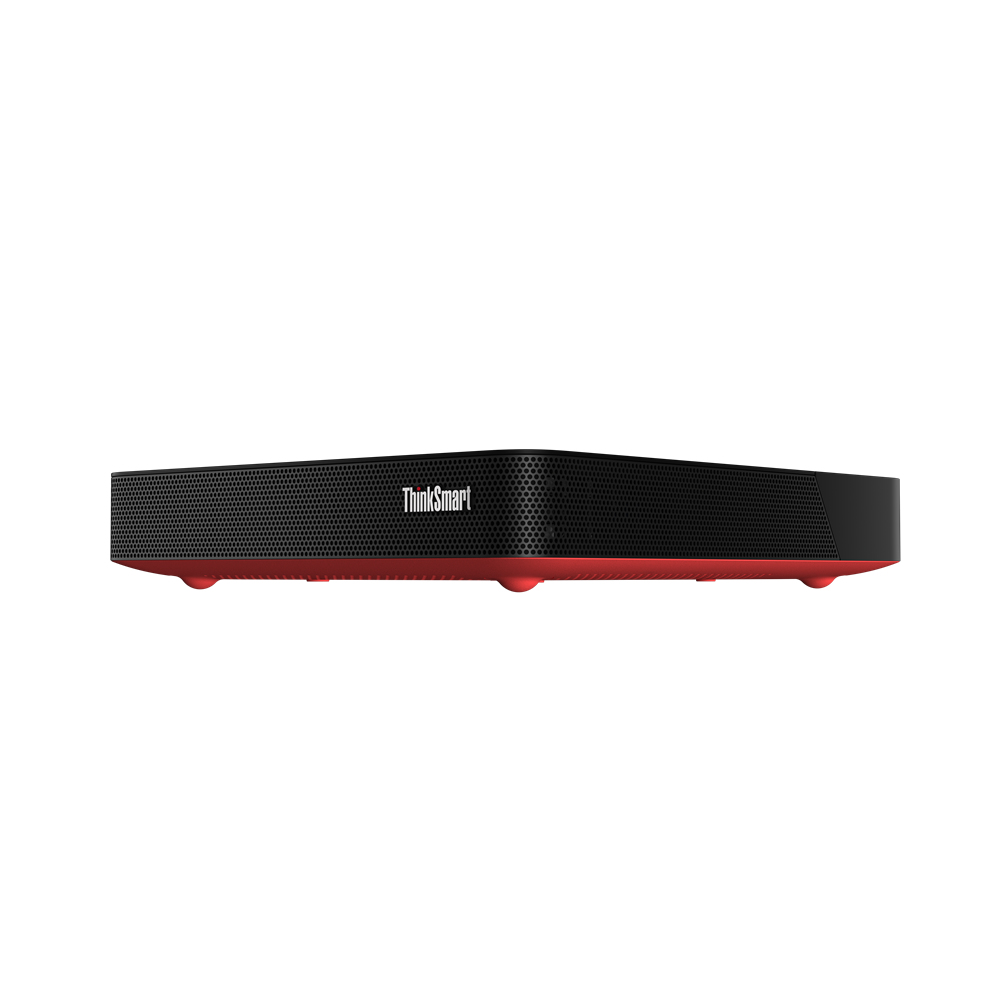

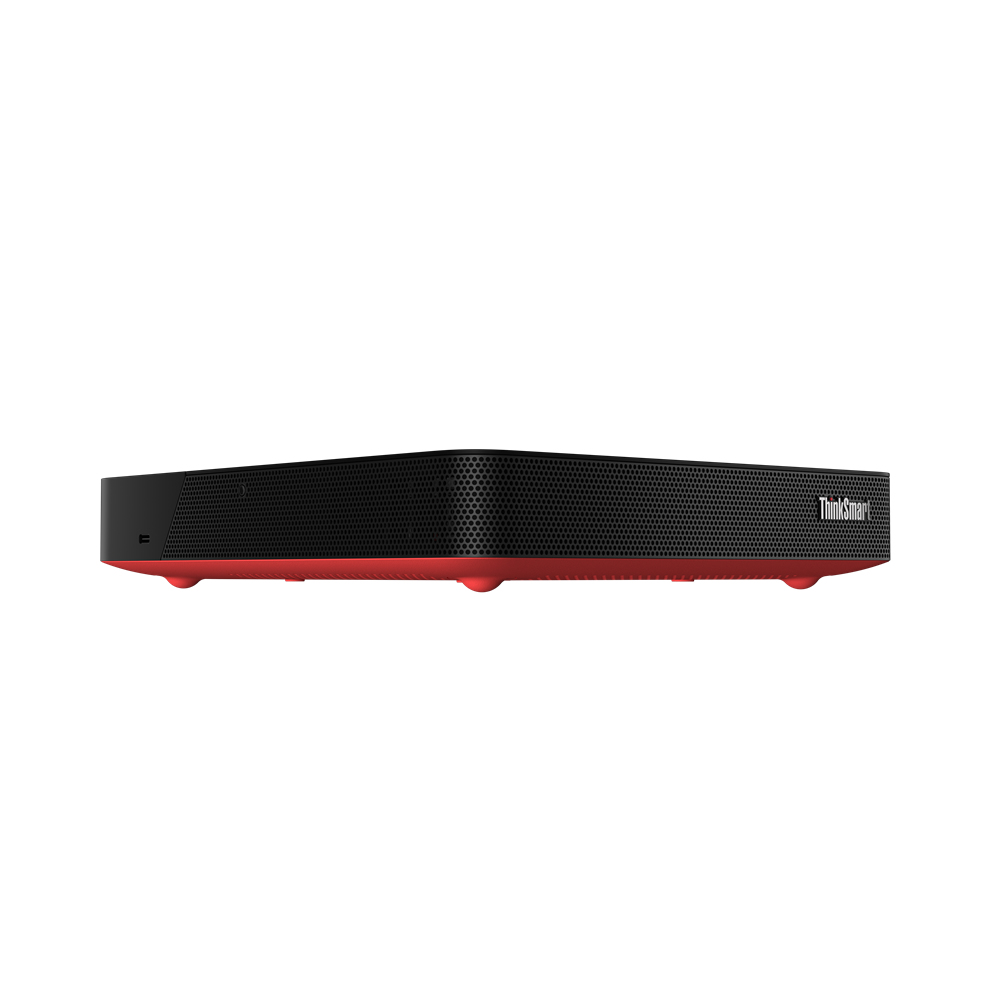

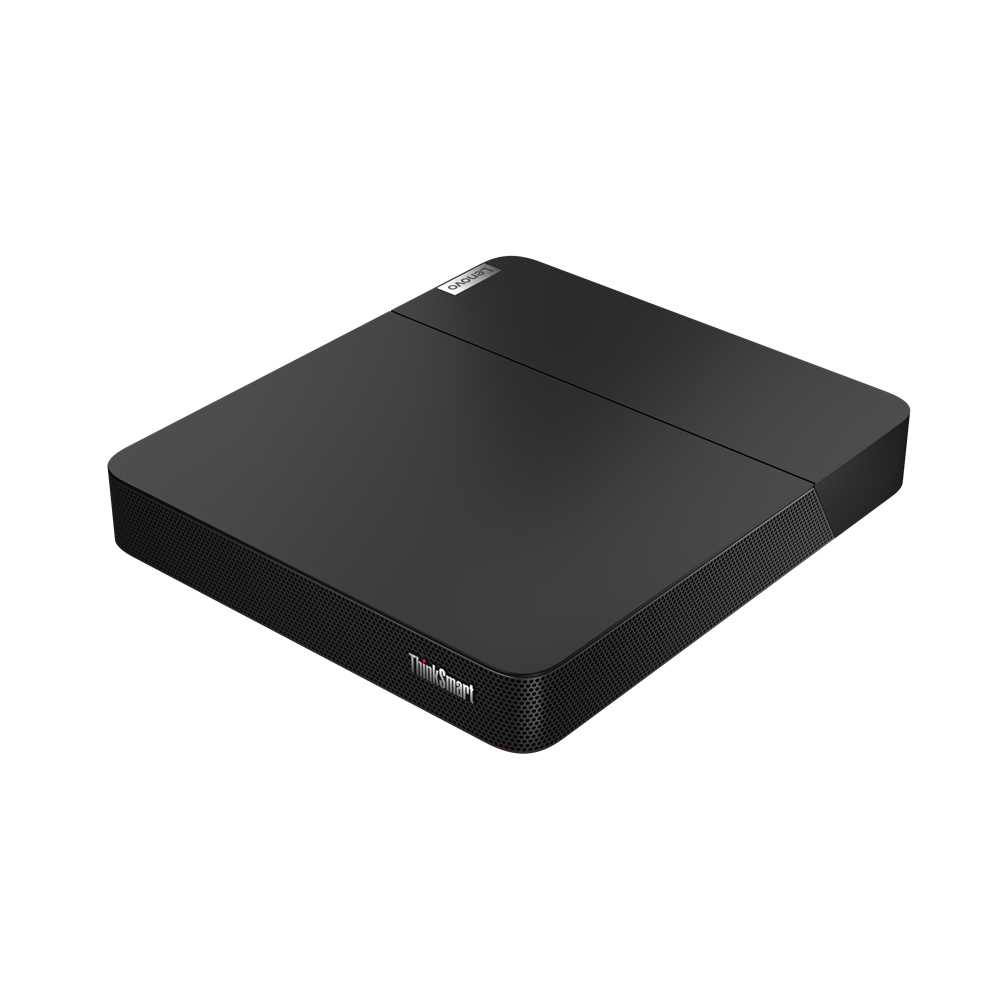

ThinkSmart Core for Logitech
Model ThinkSmart Core for LogitechPart no. 11RXS02802EAN 196378833873
95 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkSmart Core for Logitech
- Part numbers
- 11RXS02802, 11RXS00700, 11RXS00912, 11RXS00000, 11RXS02403, 11RXS02411
- EAN / UPC
- 196378833873, 196800268761, 197531515889, 196119971253
- Also known as
- Lenovo ThinkSmart Core for Logitech Intel® Core™ i5 i5-1145G7E 8 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise SAC Mini PC Black, Red
Specifications
95 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1145G7E |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 1.5 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Configurable TDP-up | 28 W |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1.1 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board graphics card model | Intel Iris Xe Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise SAC |
| Operating system architecture | 64-bit |
| Operating system language | English |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 226 mm |
| Depth | 200 mm |
| Height | 37.5 mm |
| Weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | VOC |
