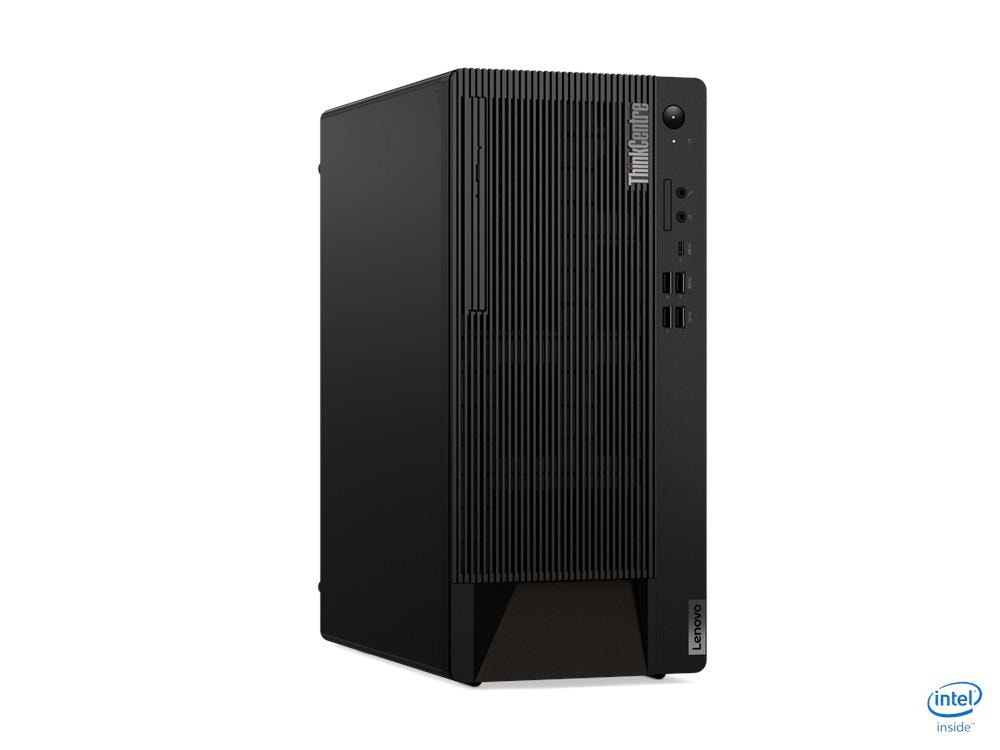

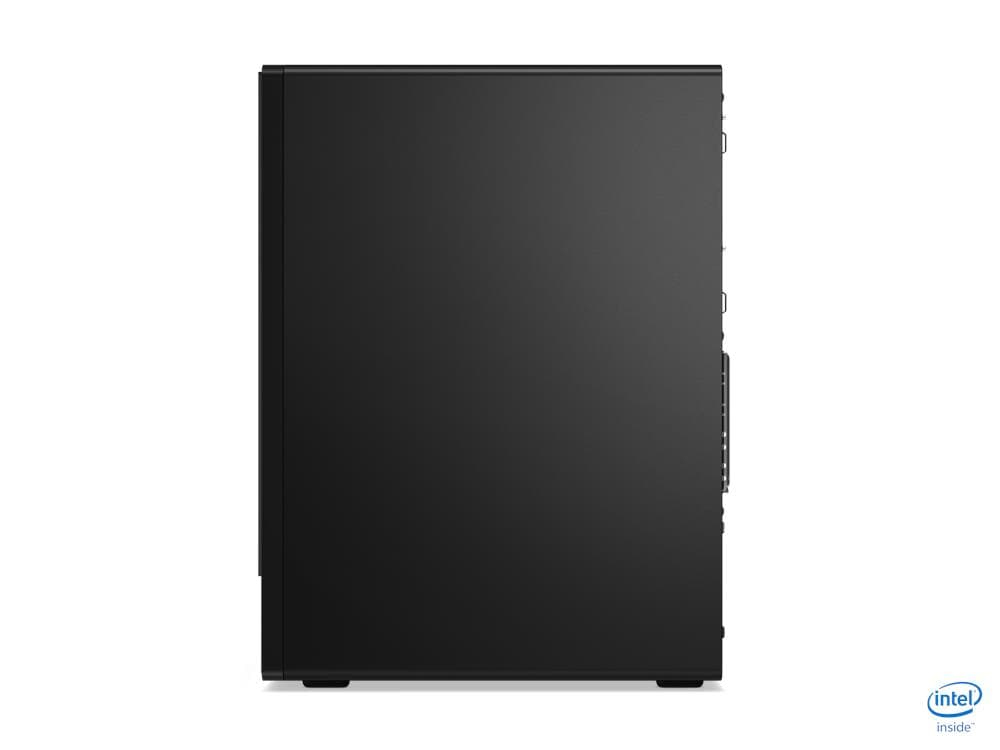

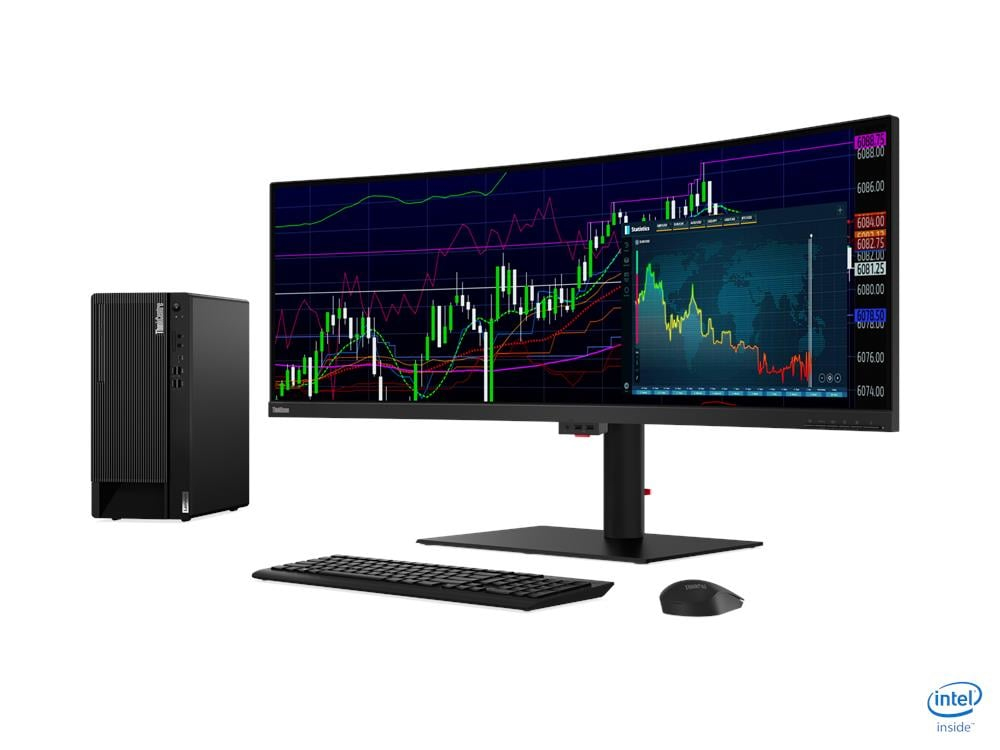

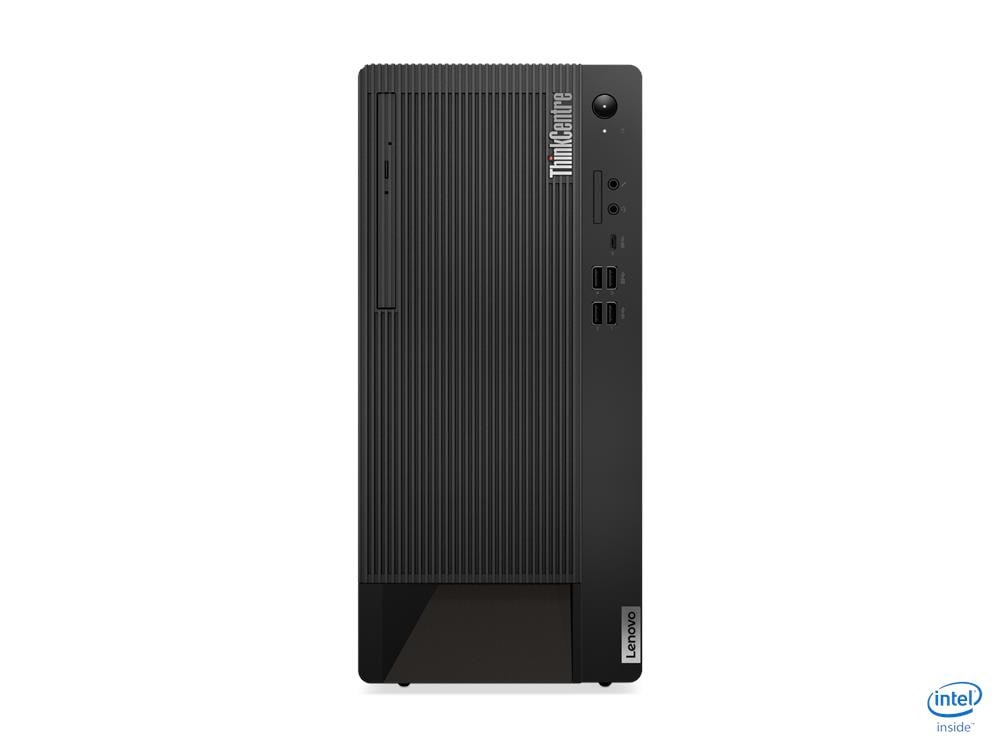

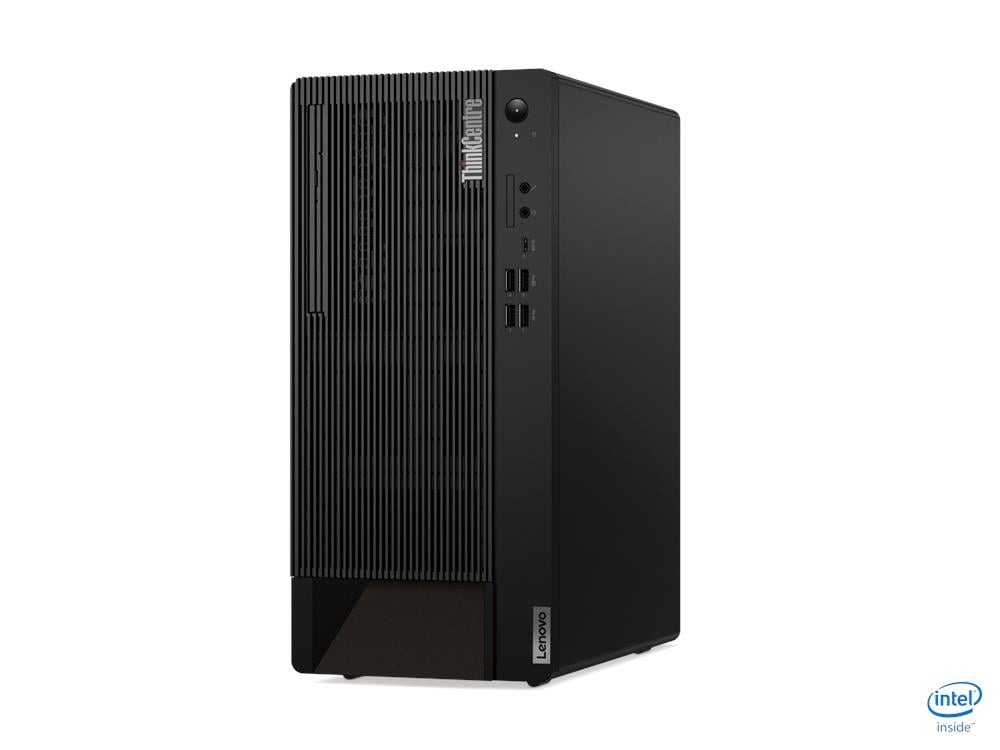

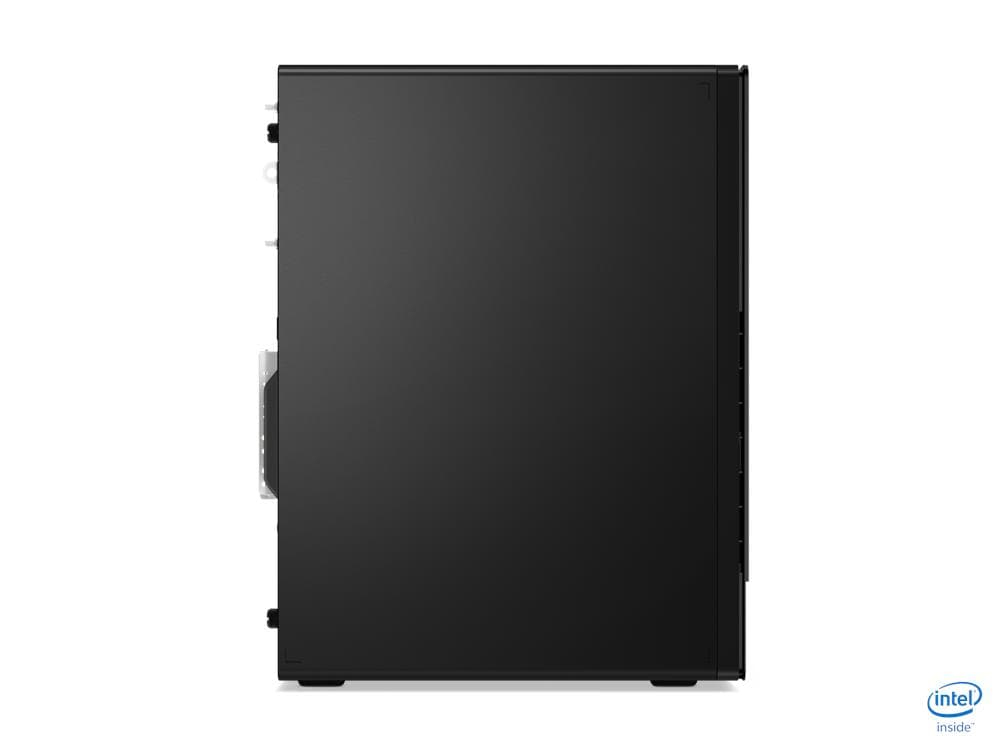

ThinkCentre M90t
Model ThinkCentre M90tPart no. 11D40014SPEAN 196118980508
68 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- TypePC
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows 10 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkCentre M90t
- Part numbers
- 11D40014SP, 11CYS00C00, 11CYS00D00, 11CYS00E00, 11CYS00F00, 11CY002FFR
- EAN / UPC
- 196118980508, 195348745369, 195348209649, 195348823579 +2 more
- Also known as
- Lenovo ThinkCentre M90t Intel® Core™ i5 i5-10500 8 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Tower PC Black
Specifications
68 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-10500 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 3.1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Q470 |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | No |

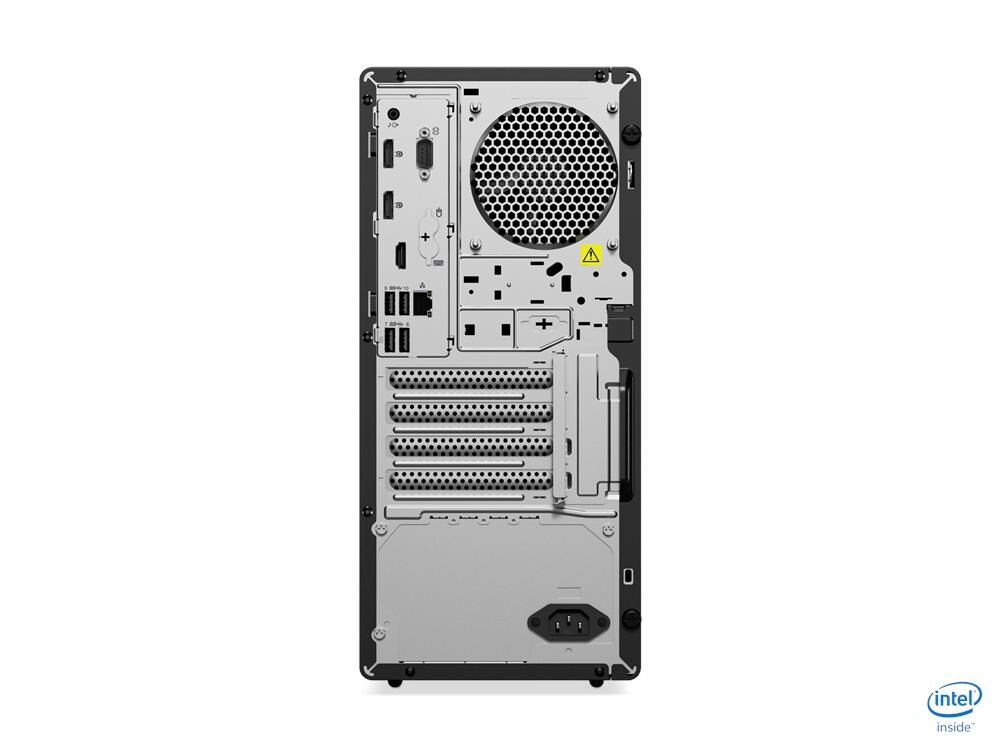

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 17 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC623-CG |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 298 mm |
| Height | 376 mm |
| Weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR,TCO,EPEAT Silver,RoHS |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
