ThinkCentre M75t Gen 2
Model ThinkCentre M75t Gen 2Part no. 11RC000DIXEAN 197532733367
84 specifications
- ProcessorAMD Ryzen™ 5 PRO
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- AMD Ryzen™ 5 PRO
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkCentre M75t Gen 2
- Part numbers
- 11RC000DIX, 11RC000CIX, 11RC0012GE
- EAN / UPC
- 197532733367, 196380121418, 196380121166
- Also known as
- Lenovo ThinkCentre M75t Gen 2 AMD Ryzen™ 5 PRO 5650G 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Tower Workstation Black
Specifications
84 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 PRO |
| Processor generation | AMD Ryzen PRO 5000 Series |
| Processor model | 5650G |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 3.9 GHz |
| Processor cache | 16 MB |
| Processor cache type | L2 & L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | M.2, NVMe, PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | AMD PRO 565 |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | No |
| Bluetooth | No |

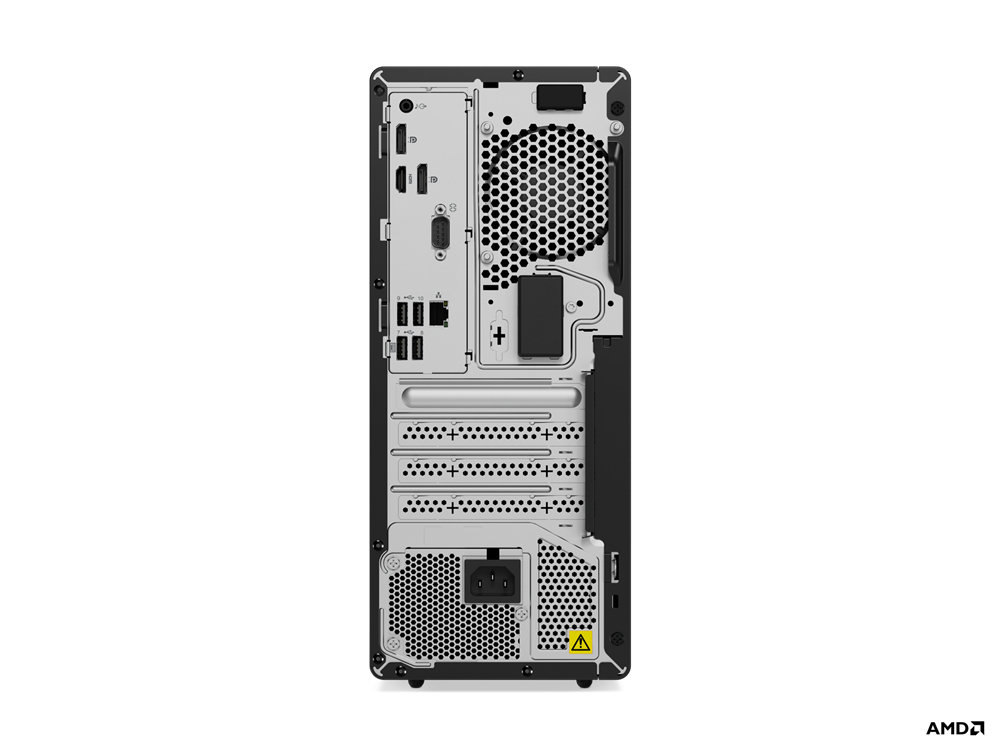

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Black |
| Volume | 13.6 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Windows 11 free upgrade | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC623-CG |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 296 mm |
| Height | 346 mm |
| Weight | 4.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver, ErP, TCO |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
