ThinkCentre M58 + S60UH57 + S60UK63
Model ThinkCentre M58 + S60UH57 + S60UK63Part no. SJCAJFR *KIT*
90 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage320 GB
- GraphicsIntel® GMA 4500M
- TypePC
- OSWindows 7 Professional
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 320 GB
- Graphics
- Intel® GMA 4500M
- Type
- PC
- OS
- Windows 7 Professional
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkCentre M58 + S60UH57 + S60UK63
- Part number
- SJCAJFR *KIT*
- Also known as
- Lenovo ThinkCentre M58 + S60UH57 + S60UK63 Intel® Core™2 Duo E7500 2 GB DDR3-SDRAM 320 GB Intel® GMA 4500M Windows 7 Professional PC
Specifications
90 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E7500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.93 GHz |
| Processor cache | 3 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E7000 Series |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 74.1 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| CPU multiplier (bus/core ratio) | 11 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | DVD±RW |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500M |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit Ethernet |

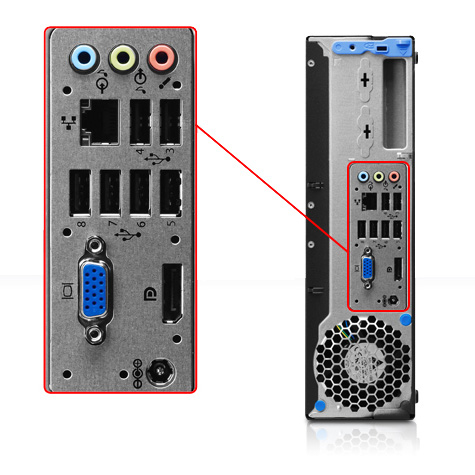

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
| Power supply input voltage | 110 - 220 V |
| Power supply input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 36503 |
| Processor code | SLB9Z |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 275 mm |
| Depth | 238 mm |
| Height | 80 mm |
| Weight | 4.18 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Intel segment tagging | Enterprise, Professional |
