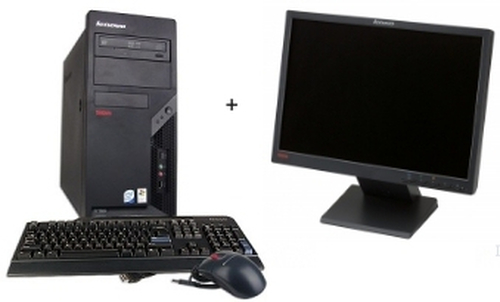

Lenovo ThinkCentre M57p+T22HNEU

Model ThinkCentre M57p+T22HNEUPart no. VVCBJSW+T22HNEU

128 specifications

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage320 GB
GraphicsIntel® GMA 3100

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA 3100

Brand: Lenovo
Category: PCs/Workstations
Model: ThinkCentre M57p+T22HNEU
Part number: VVCBJSW+T22HNEU
Also known as: Lenovo ThinkCentre M57p+T22HNEU Intel® Core™2 Duo E6750 2 GB DDR2-SDRAM 320 GB Intel® GMA 3100 Windows Vista Business Tower PC Black

Specifications

128 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6750
Processor cores	2
Processor threads	2
Processor frequency	2.66 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	8
Platform	PC
Stepping	G0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory slots	4x DIMM
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	320 GB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Drive device, transfer rate	300 MB/s
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3100
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Password protection type	BIOS

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	280 W

Design

Specification	Value
Chassis type	Tower
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows Vista Business
Trial software	Microsoft Office 2007 Norton Internet Security
Bundled software	Adobe Acrobat Reader Diskeeper Lite Google Picasa Latest ThinkVantage Technologies suite Microsoft Windows Live Portal PC Doctor

Display

Specification	Value
Display included	Yes
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Contrast ratio (typical)	700:1
Touchscreen	No
Display brightness	300 cd/m²
Viewing angle, horizontal	176°
Viewing angle, vertical	176°
Display	TFT

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30784
Processor code	SLA9V
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	AD1882

Weight & dimensions

Specification	Value
Width	175 mm
Depth	400 mm
Height	432 mm
Weight	10.2 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Other features

Specification	Value
TV tuner integrated	No
HDD user password	Yes
Intel segment tagging	Enterprise, Professional
