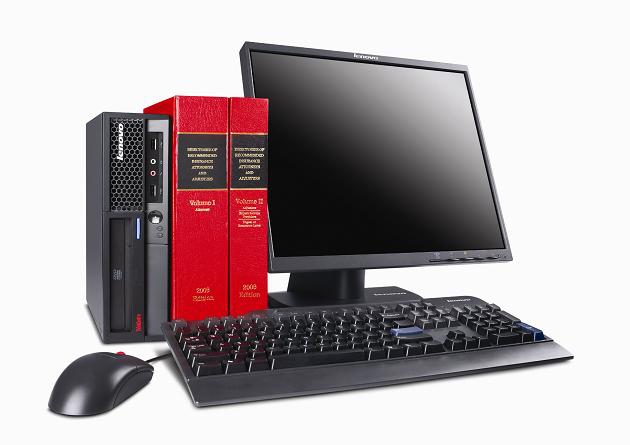

ThinkCentre M57
Model ThinkCentre M57Part no. VUPEQMLEAN 673983024990
96 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage80 GB
- GraphicsIntel® GMA 3100
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 80 GB
- Graphics
- Intel® GMA 3100
- Type
- PC
- OS
- Windows Vista Business
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- ThinkCentre M57
- Part numbers
- VUPEQML, VUOD4CW, 6075W1E, VUOD5UK, VVCA1MB, VUOD5SW +34 more
- EAN / UPC
- 673983024990, 883609566517, 883609599317, 883609451332 +11 more
- Also known as
- Lenovo ThinkCentre M57 Intel® Core™2 Duo E6550 1 GB DDR2-SDRAM 80 GB Intel® GMA 3100 Windows Vista Business PC
Specifications
96 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6550 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.33 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E6000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | G0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Floppy drive installed | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 3100 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| CD read speed | 24x |
| CD write speed | 24x |
| CD rewrite speed | 24x |
| DVD read speed | 8x |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 30783 |
| Processor code | SLA9X |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 276 mm |
| Depth | 273 mm |
| Height | 89 mm |
| Weight | 6.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Intel segment tagging | Enterprise, Professional |
