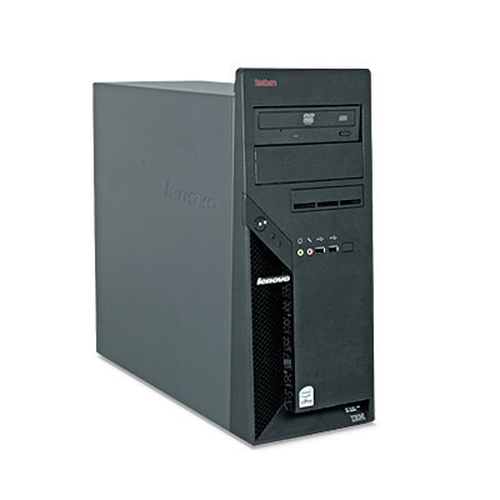

Lenovo ThinkCentre M55 8810

Model ThinkCentre M55 8810Part no. VTW91SP

113 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage250 GB
GraphicsIntel® GMA 3000
TypePC
OSWindows XP Professional

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 250 GB
Graphics: Intel® GMA 3000
Type: PC
OS: Windows XP Professional

Brand: Lenovo
Category: PCs/Workstations
Model: ThinkCentre M55 8810
Part number: VTW91SP
Also known as: Lenovo ThinkCentre M55 8810 Intel® Core™2 Duo E6300 1 GB DDR2-SDRAM 250 GB Intel® GMA 3000 Windows XP Professional Desktop PC Black

Specifications

113 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6300
Processor cores	2
Processor threads	2
Processor frequency	1.86 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	61.4 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	7
Platform	PC
Stepping	R0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD-RW
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3000
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q965 Express

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply type	AC
Power requirements	120 - 230 V
Power supply	225 W

Design

Specification	Value
Chassis type	Desktop
Product colour	Black
External drive bays	1 x 5.25", 1 x 3.5"
Internal drive bays	1 x 3.5"

Software

Specification	Value
Operating system installed	Windows XP Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27248
Processor code	SLGW2
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	350 mm
Depth	385 mm
Height	108 mm
Weight	10 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Compliance industry standards	IEEE802.3, IEEE802.3u, IEEE802.3ab

Other features

Specification	Value
TV tuner integrated	No
Intel segment tagging	Enterprise, Professional
