Lenovo ThinkCentre A58 + L197 Monitor

Model ThinkCentre A58 + L197 MonitorPart no. 7522K3M + 4434HE1

114 specifications

Display48.3 cm (19")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage320 GB
GraphicsIntel® GMA 4500M

See all specifications

Overview

Display: 48.3 cm (19")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA 4500M

Brand: Lenovo
Category: PCs/Workstations
Model: ThinkCentre A58 + L197 Monitor
Part number: 7522K3M + 4434HE1
Also known as: Lenovo ThinkCentre A58 + L197 Monitor Intel® Core™2 Duo E8400 2 GB DDR2-SDRAM 320 GB Intel® GMA 4500M Windows XP Professional SFF PC

Specifications

114 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E8000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	72.4 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9
Stepping	E0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM

Storage

Specification	Value
Total storage capacity	320 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	7200 RPM

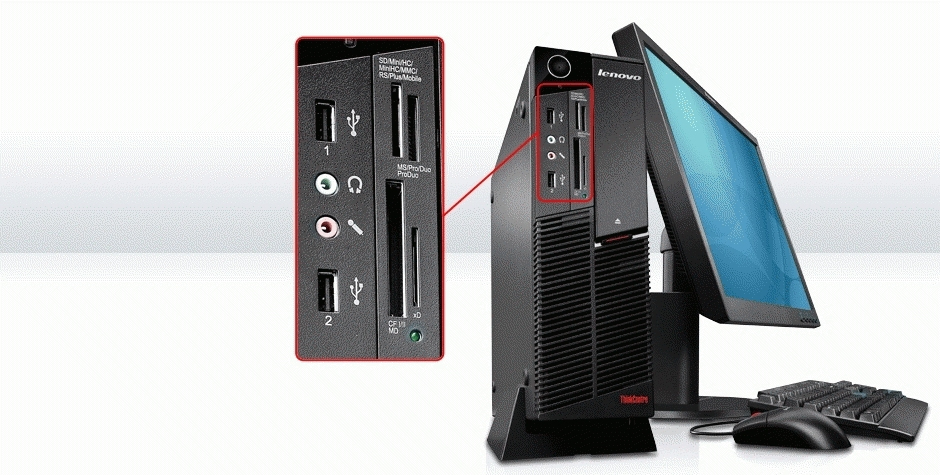

Card reader integrated	Yes
Floppy drive installed	No
Storage drive partition	NTFS/FAT32

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	Intel® GMA 4500M
On-board graphics card model	Not available
Graphics card family	Intel

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Modem speed	56 Kbit/s
Networking features	Marvell 8057, 10/100/1000 Gigabit Ethernet

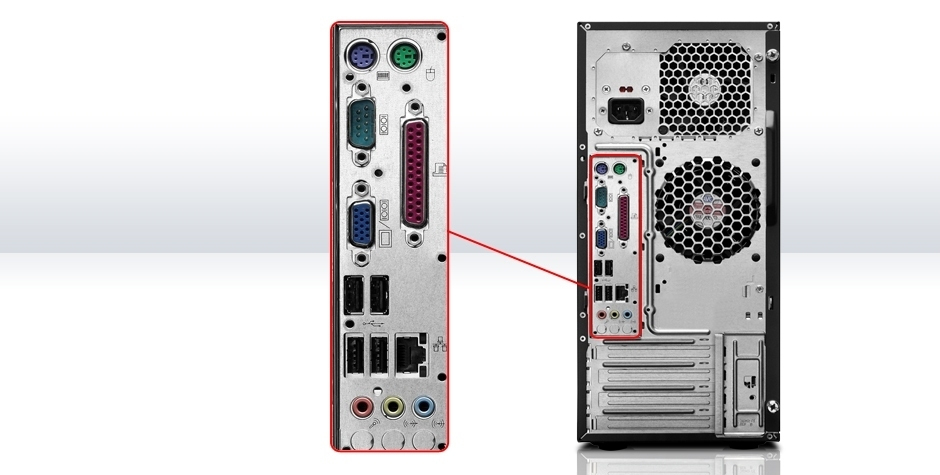

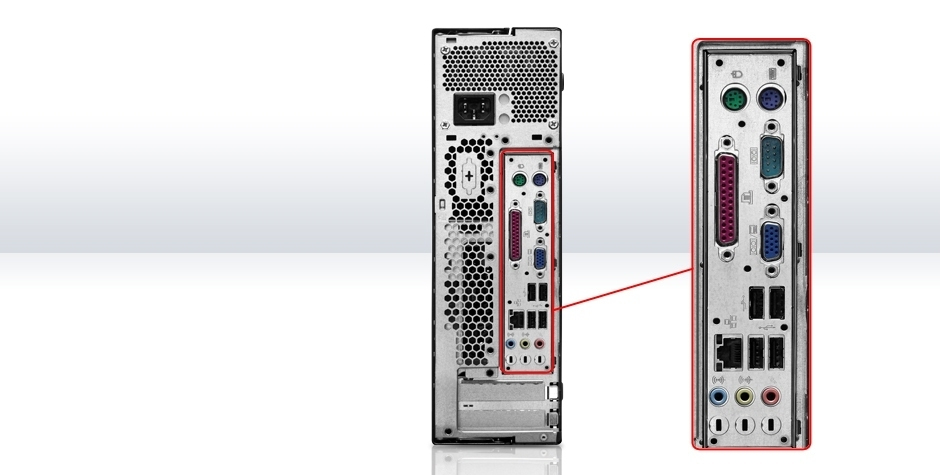

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	6
Firewire (IEEE 1394) ports	0
Serial ports quantity	2
Parallel ports quantity	1

Expansion slots

Specification	Value
PCI Express x16 slots	1

Power

Specification	Value
Power supply	280 W

Design

Specification	Value
Chassis type	SFF
Form factor	PCI/PCIe

Software

Specification	Value
Operating system installed	Windows XP Professional

Display

Specification	Value
Display included	Yes
Display diagonal	48.3 cm (19")
Display resolution	1440 x 900 pixels
Display	LCD

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33910
Processor code	SLB9J
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	ADI
Built-in microphone	No

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m

Weight & dimensions

Specification	Value
Width	317 mm
Depth	355 mm
Height	99 mm
Weight	7.5 kg

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Certification	EnergyStar, UL/CUL, TUV-GS, RoHS, GREENGUARD

Other features

Specification	Value
TV tuner integrated	No
Drive bays	2 x 3.5", 1 x 5.25"
