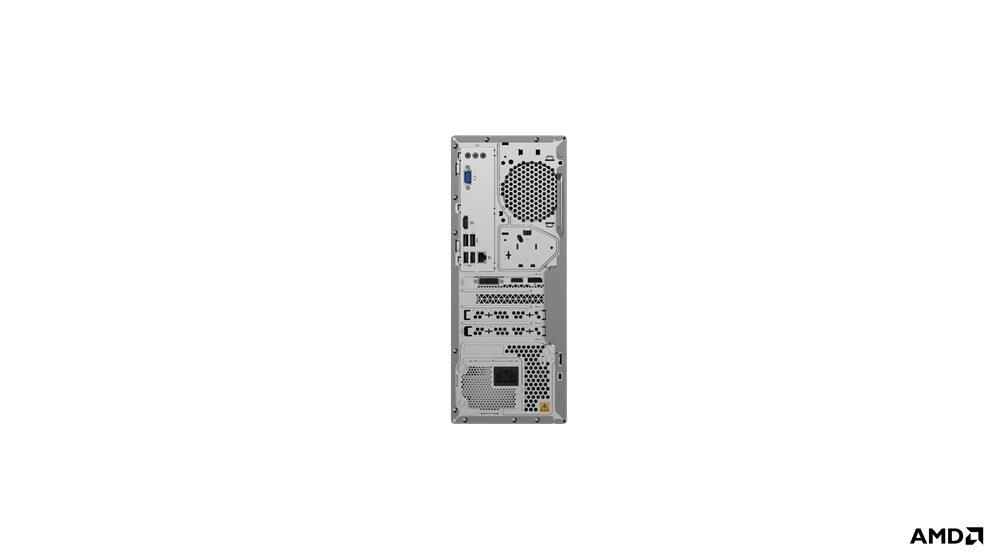

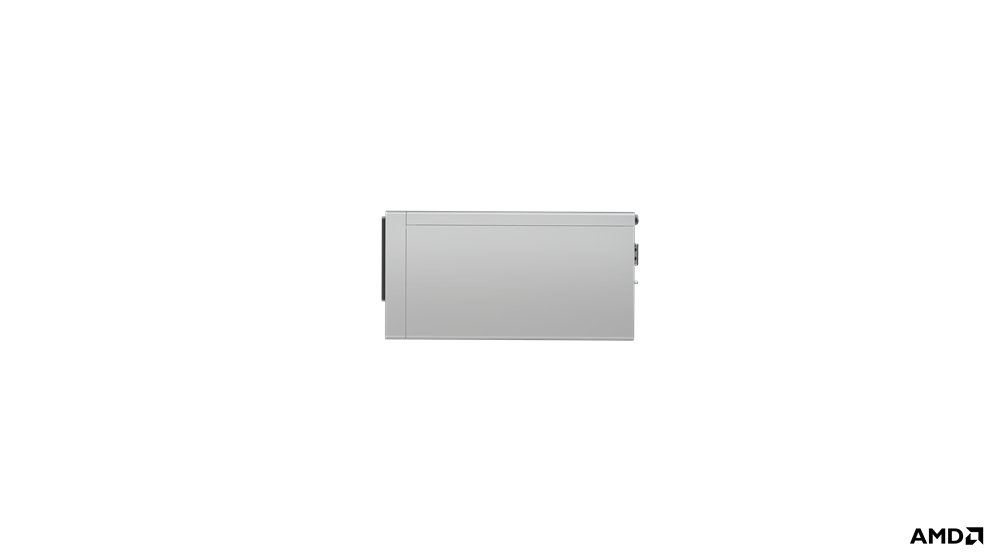

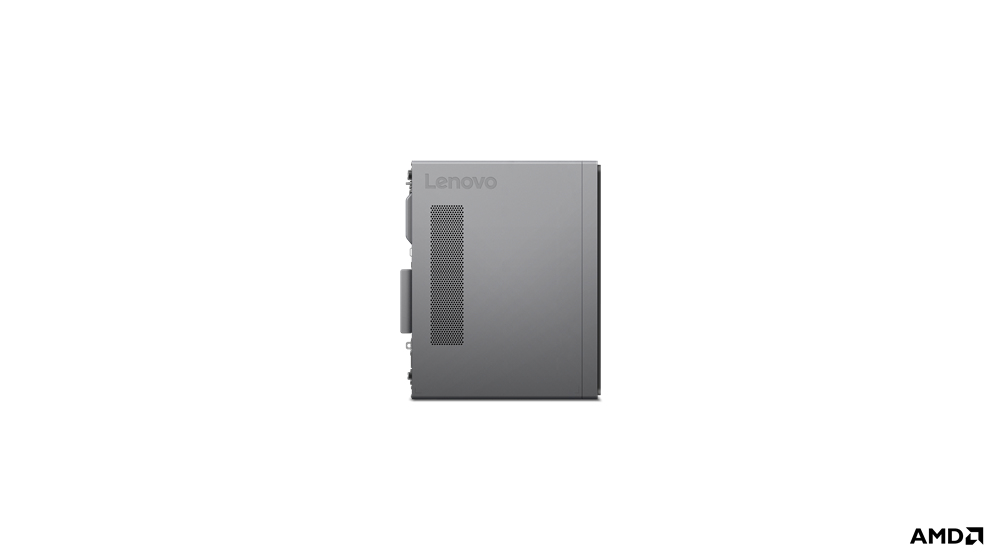

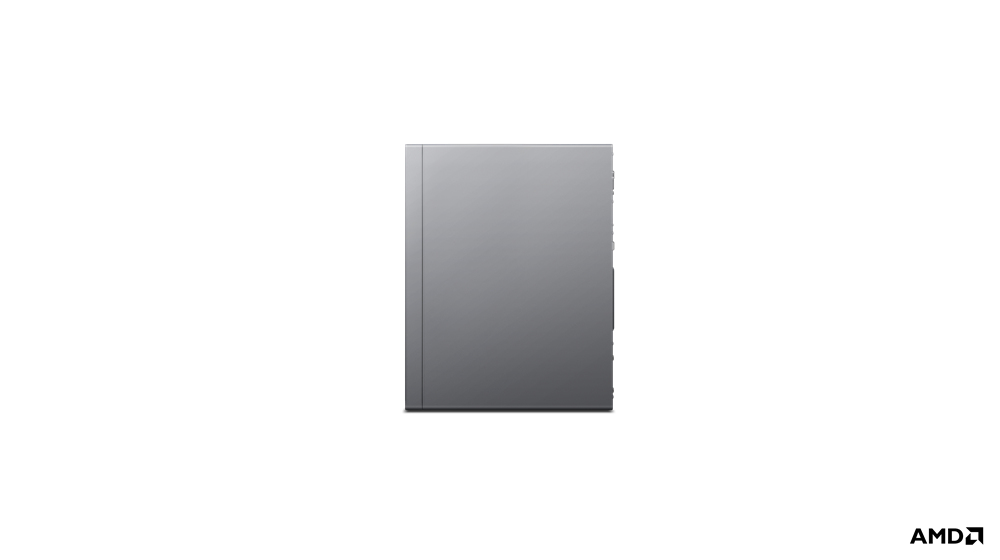

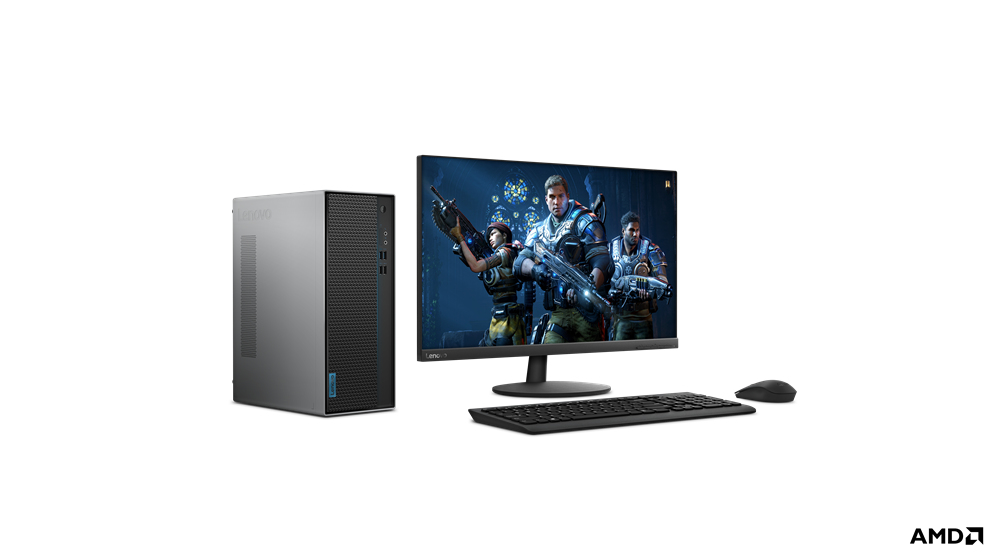

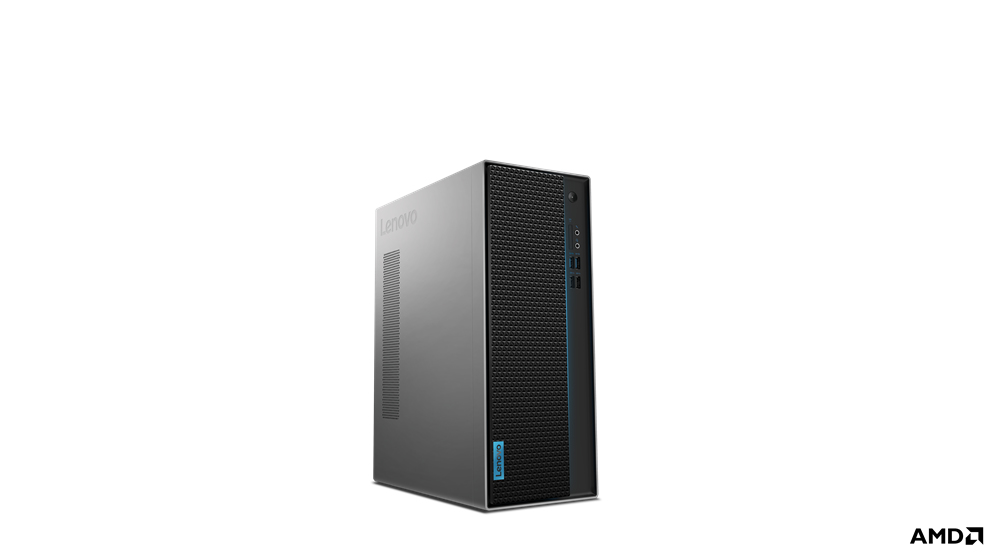

T540-15AMA G
Model T540-15AMA GPart no. 90L5000YMWEAN 194778539111
74 specifications
- ProcessorAMD Ryzen™ 5
- Memory8 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce® GTX 1650 SUPER
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- AMD Ryzen™ 5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce® GTX 1650 SUPER
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- T540-15AMA G
- Part number
- 90L5000YMW
- EAN / UPC
- 194778539111
- Also known as
- Lenovo IdeaCentre T540-15AMA G AMD Ryzen™ 5 3600 8 GB DDR4L-SDRAM 512 GB SSD NVIDIA® GeForce® GTX 1650 SUPER Windows 10 Home Tower PC Grey
Specifications
74 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 3000 Series |
| Processor model | 3600 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 32 MB |
| Processor cache type | L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4L-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1650 SUPER |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD PRO 560 |
| Password protection | Yes |
| Password protection type | Power on |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 310 W |
| Power supply input voltage | 100 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Iron Grey |
| Volume | 15 L |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Operating system language | Danish, English, Finnish, Norwegian, Swedish |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 145 mm |
| Depth | 302.7 mm |
| Height | 366 mm |
| Weight | 6.24 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP |
