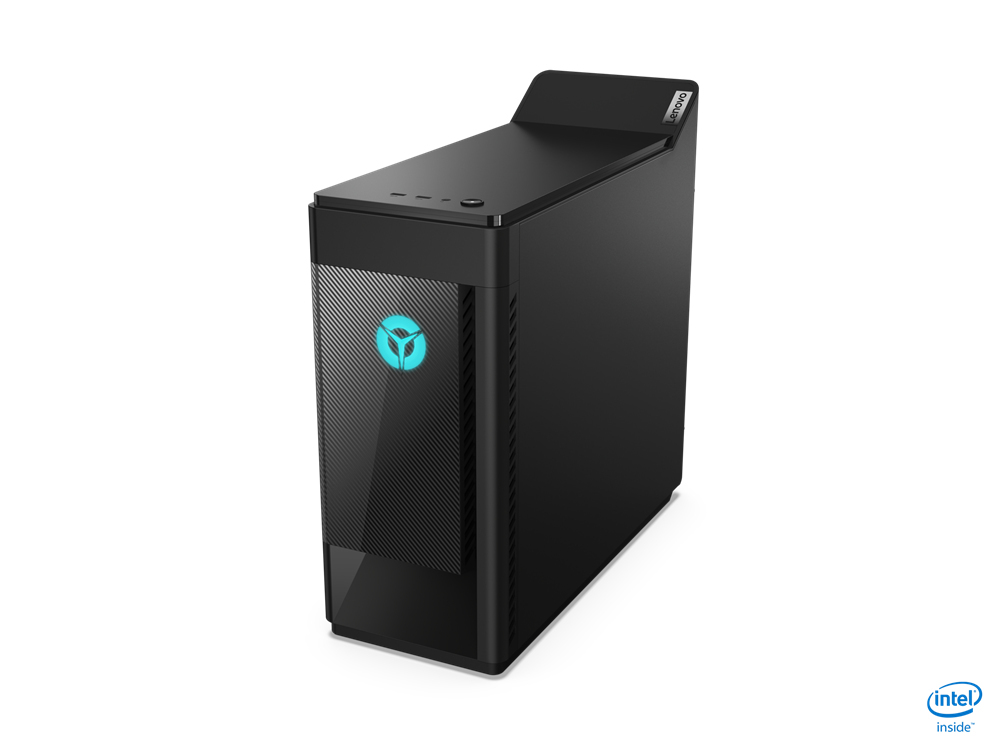

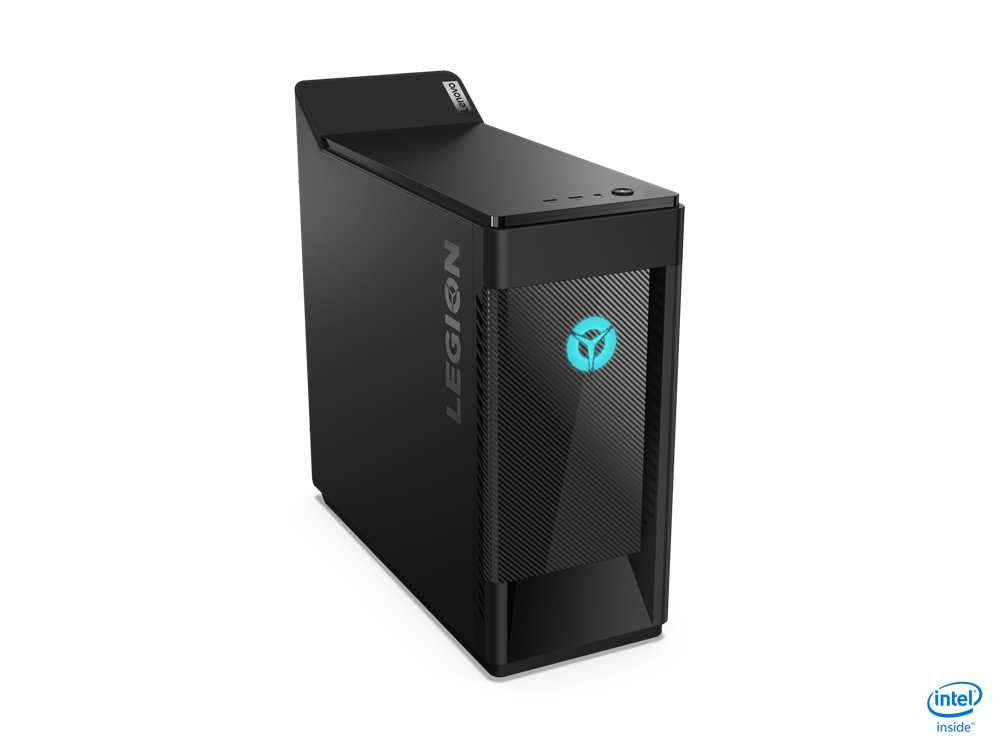

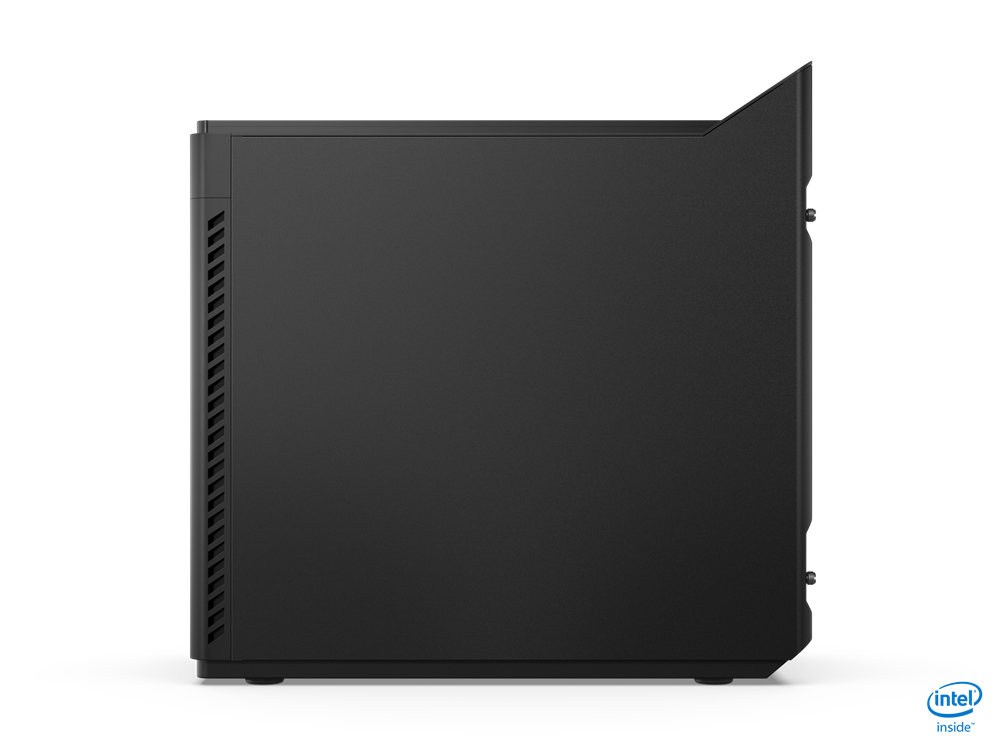

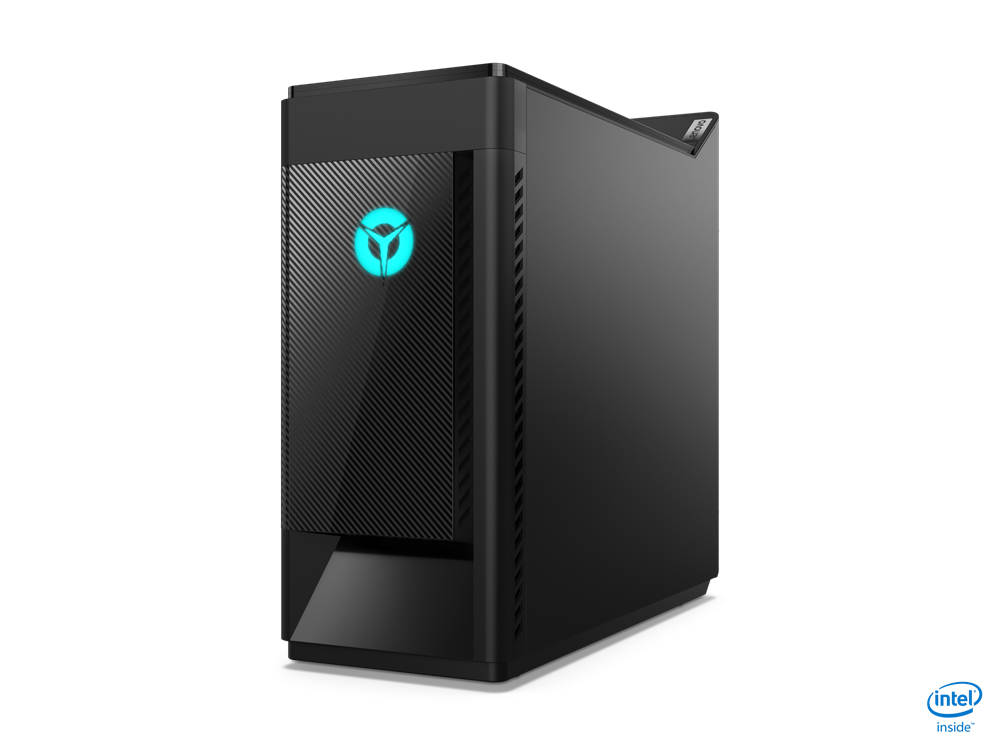

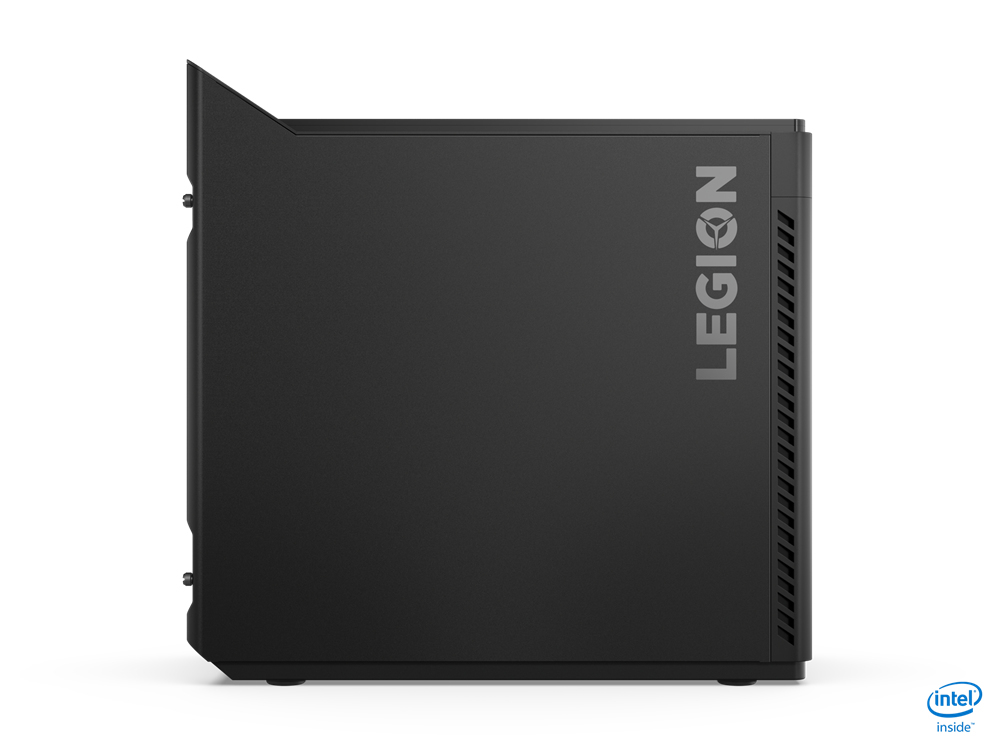

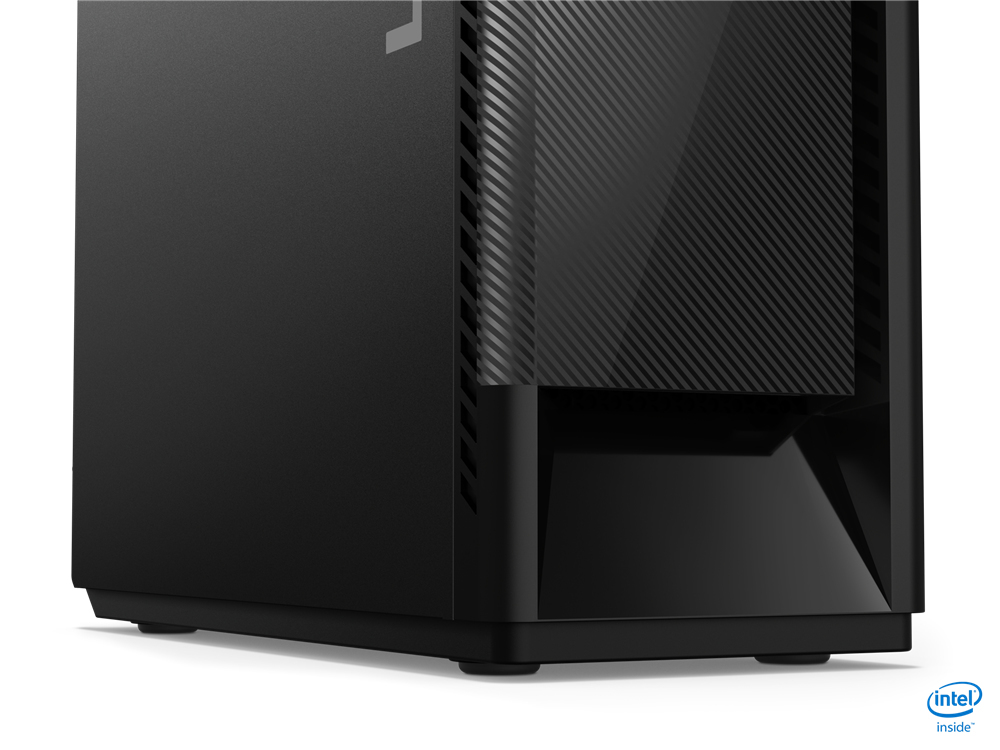

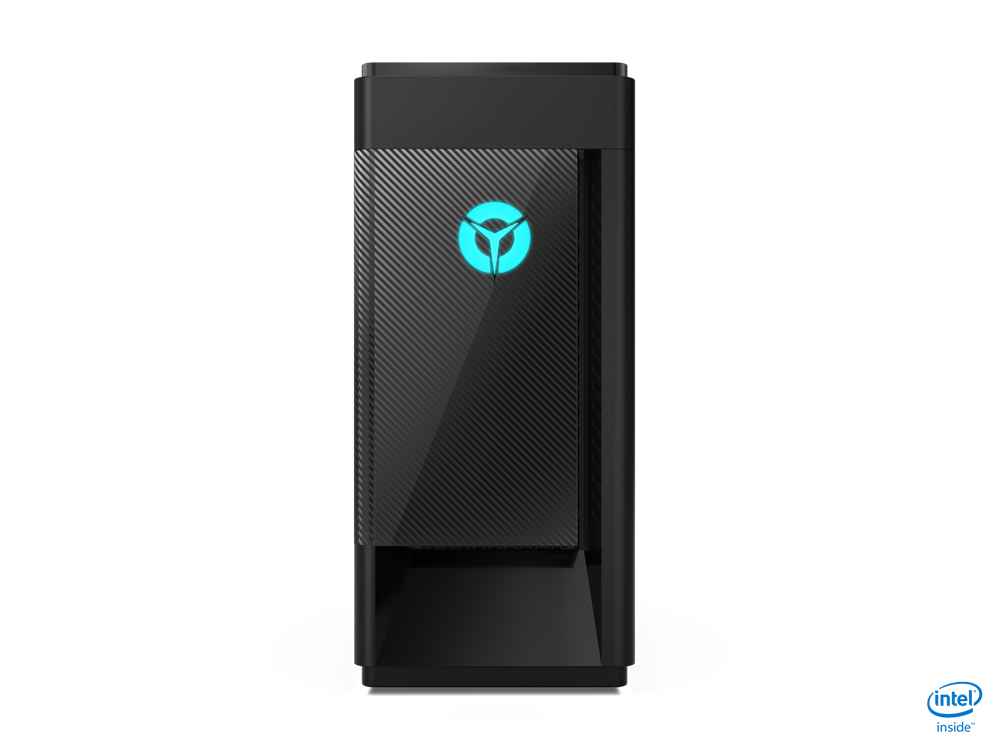

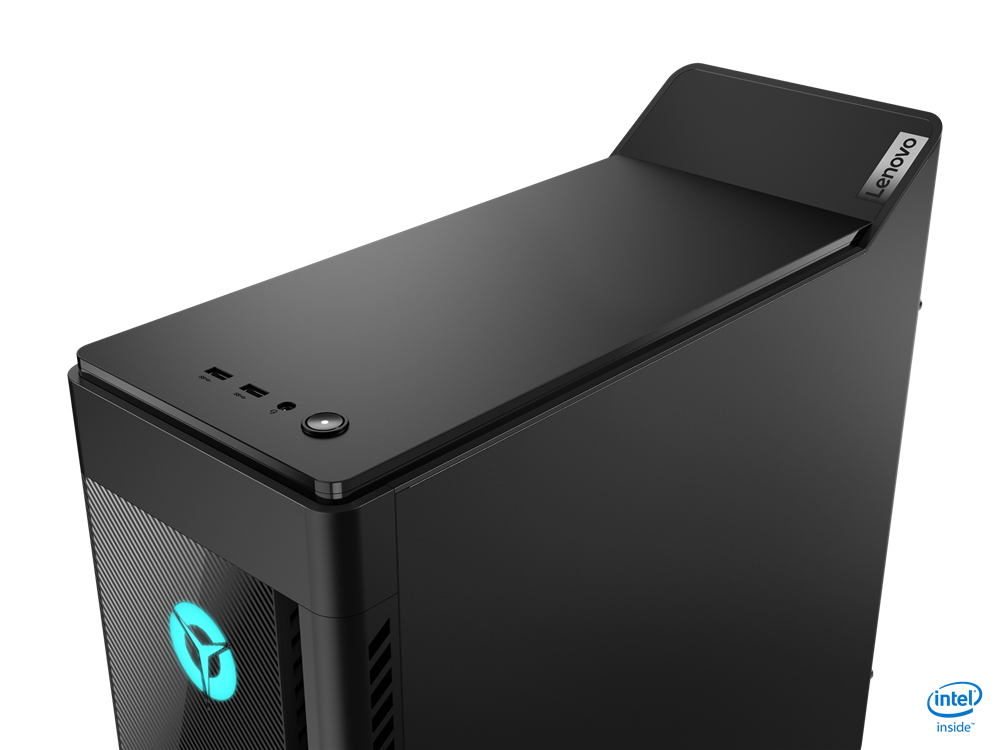

Legion T5 Intel® Core™ i5 i5-10400
16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 SUPER Windows 10 Home Tower PC Black
Model T5Part no. 90RC0066GEEAN 194778315210
128 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce GTX 1660 SUPER
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce GTX 1660 SUPER
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- T5
- Part numbers
- 90RC0066GE, 90NC00A6UK, 90NC00A9UK, 90NC00A8UK, 90NC00A7UK, 90RC006PGE +34 more
- EAN / UPC
- 194778315210, 195042516524, 195042516555, 195042516548 +56 more
- Also known as
- Lenovo Legion T5 Intel® Core™ i5 i5-10400 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce GTX 1660 SUPER Windows 10 Home Tower PC Black
Specifications
128 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10400 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 2.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1200 (Socket H5) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2933 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce GTX 1660 SUPER |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x9BC8/0x9BC5 |
| On-board graphics card OpenGL version | 4.5 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel B460 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

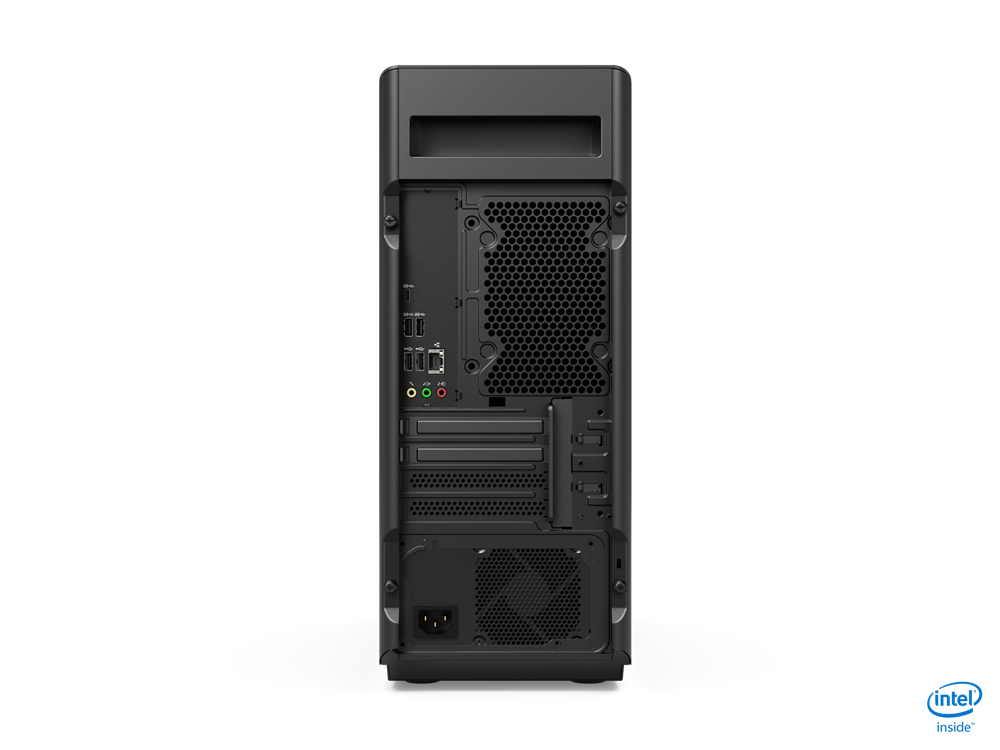

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 400 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Phantom Black |
| Volume | 28 L |
| Placement supported | Vertical |
| Product colour | Black |
| Housing material | Metal |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 199271 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC887 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184.5 mm |
| Depth | 455.8 mm |
| Height | 457 mm |
| Weight | 14 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP Lot 3 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
