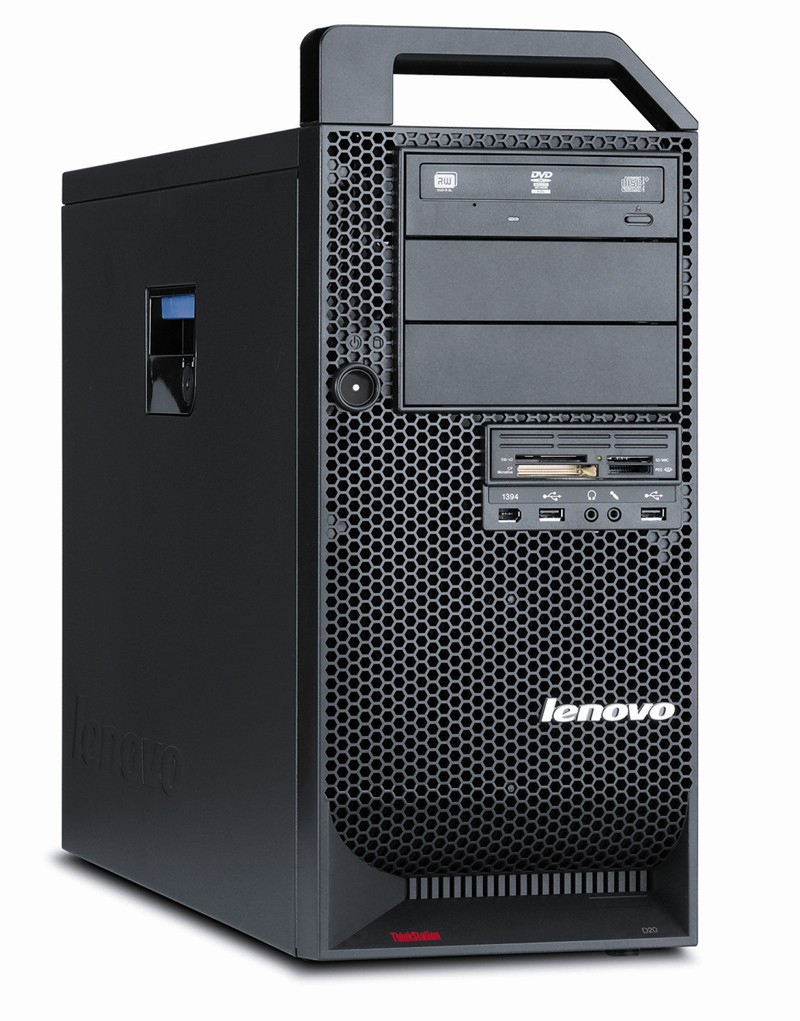

ThinkStation SNF16PB workstation Intel® Xeon® 5000 Sequence X5550
4 GB DDR3-SDRAM Tower Black
Model SNF16PB
105 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage250 GB
- TypeWorkstation
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 250 GB
- Type
- Workstation
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- SNF16PB
- Part number
- SNF16PB
- Also known as
- Lenovo ThinkStation SNF16PB workstation Intel® Xeon® 5000 Sequence X5550 4 GB DDR3-SDRAM Tower Black
Specifications
105 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | X5550 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.06 GHz |
| Processor frequency | 2.66 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.4 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 5500 Series |
| Processor codename | Nehalem EP |
| Processor system type | DP |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 75 °C |
| Number of QPI links | 2 |
| Processor socket | Socket B (LGA 1366) |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| CPU multiplier (bus/core ratio) | 20 |
| Stepping | D0 |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory clock speed | 1066 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| Number of HDDs installed | 2 |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.5 GB |
| Graphics card | Quadro FX 1800 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| DVI-I ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 40 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 37106 |
| Processor code | SLBF5 |
| Processor package size | 42.5 x 45 mm |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 602 mm |
| Height | 478 mm |
