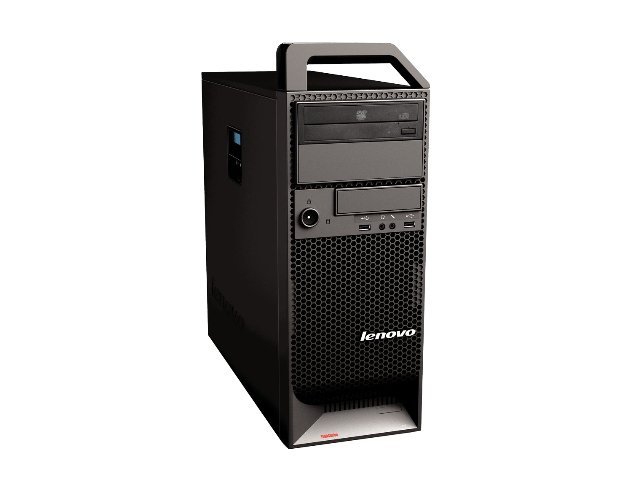

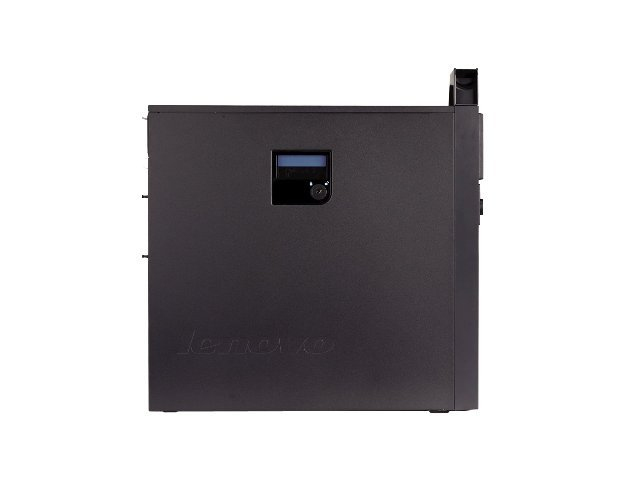

Lenovo ThinkStation SNCJ6FR+45K1672 workstation Intel® Xeon® 3000 Sequence W3505

2 GB DDR3-SDRAM Windows 7 Professional Tower Black

Model SNCJ6FR+45K1672

85 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: SNCJ6FR+45K1672
Part number: SNCJ6FR+45K1672
Also known as: Lenovo ThinkStation SNCJ6FR+45K1672 workstation Intel® Xeon® 3000 Sequence W3505 2 GB DDR3-SDRAM Windows 7 Professional Tower Black

85 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 3000 Sequence
Processor model	W3505
Processor cores	2
Processor threads	2
Processor frequency	2.53 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor front side bus	1066 MHz
Bus type	QPI
System bus rate	4.8 GT/s
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Bloomfield
Thermal Design Power (TDP)	130 W
Number of QPI links	1
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Graphics card	Quadro FX 1800
Graphics card manufacturer	NVIDIA

Specification	Value
Product type	Workstation
Motherboard form factor	ATX

Specification	Value
Networking features	Gigabit Ethernet (10/100/1000)

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	0
eSATA ports quantity	1
Serial ports quantity	1
Parallel ports quantity	0

Specification	Value
Operating system installed	Windows 7 Professional
Mac compatibility	No

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	40800
Processor package size	42.5 x 45 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
