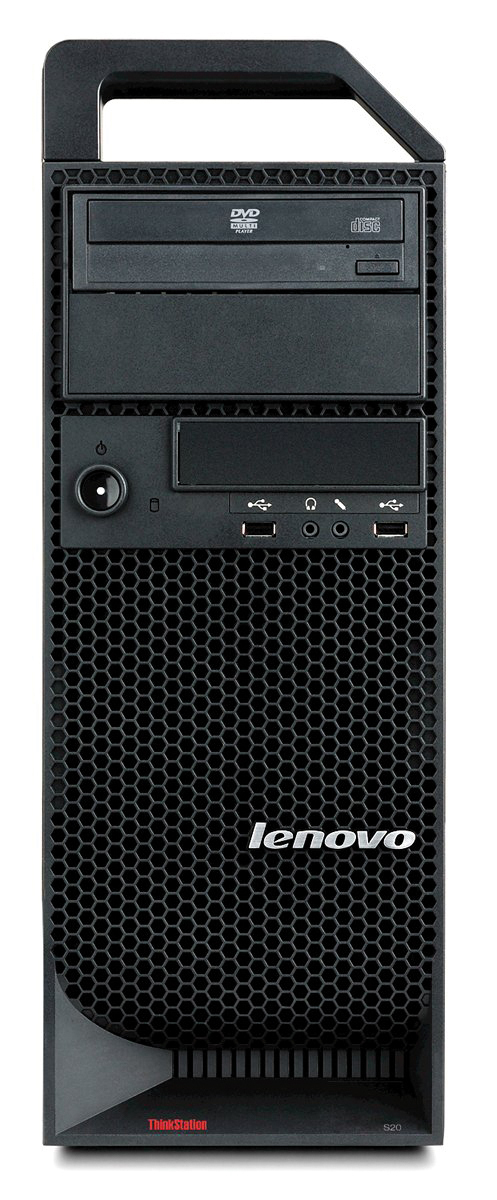

Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503
3 GB DDR3-SDRAM Tower Black
Model SNC59IX
76 specifications
- ProcessorIntel® Xeon® 3000 Sequence
- Memory3 GB
- Storage250 GB
- TypeWorkstation
- Weight17.5 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 3 GB
- Storage
- 250 GB
- Type
- Workstation
- Weight
- 17.5 kg
- Colour
- Black
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- SNC59IX
- Part number
- SNC59IX
- Also known as
- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 3 GB DDR3-SDRAM Tower Black
Specifications
76 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | W3503 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.4 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Processor front side bus | 1066 MHz |
| Bus type | QPI |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Thermal Design Power (TDP) | 130 W |
| Number of QPI links | 1 |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 3 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 3 x 1 GB |
| Memory clock speed | 1066 MHz |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| HDD capacity | 250 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X58 Express |
| Motherboard form factor | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
| DVI-I ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240V, 50/60Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 40800 |
| Processor package size | 42.5 x 45 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 483 mm |
| Height | 426 mm |
| Weight | 17.5 kg |
What people say
Reviews & ratings
Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503
No reviews yet
Be the first to tell others how Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503
All pcs/workstations comparisons- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 vsLenovo ThinkStation S20 (410565G), ITCompare specs
- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 vsLenovo ThinkStation S20 (410596G), ITCompare specs
- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 vsLenovo ThinkStation SNC59HN workstation Intel® Xeon® 3000 Sequence W3503Compare specs
- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 vsLenovo ThinkStation S20 (410564G), CZCompare specs

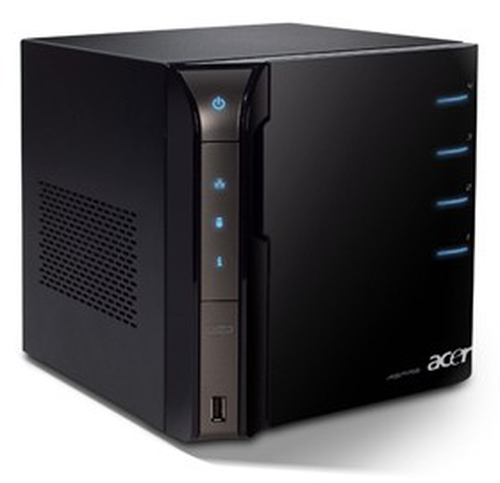

- Lenovo ThinkStation SNC59IX workstation Intel® Xeon® 3000 Sequence W3503 vsAcer Aspire easyStore H340-HCompare specs
