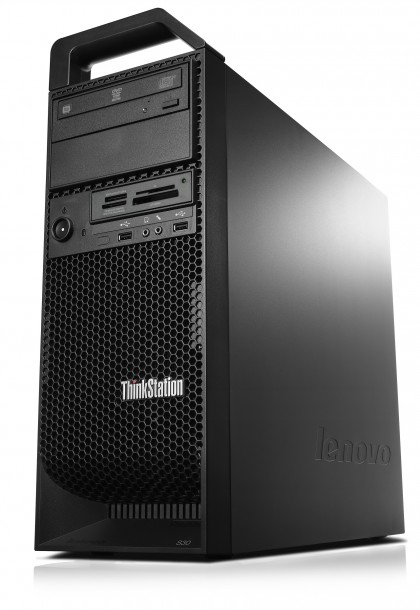

S30 + Quadro K20
Model S30 + Quadro K20Part no. RFCG1SP#KIT
128 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage1 TB
- GraphicsNot available
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- S30 + Quadro K20
- Part number
- RFCG1SP#KIT
- Also known as
- Lenovo ThinkStation S30 + Quadro K20 Intel® Xeon® E5 Family E5-1620V2 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Tower Workstation Black
Specifications
128 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-1620V2 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v2 |
| Processor codename | Ivy Bridge EP |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 70 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | x4, x8, x16 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011 (Socket R) |
| Maximum internal memory supported by processor | 256 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 1600 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C602 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 610 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Liquid cooling system | No |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75779 |
| Processor package size | 52.5 x 45.0 mm |
| Scalability | 1S |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 460 mm |
| Height | 478 mm |
| Weight | 17.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold |
