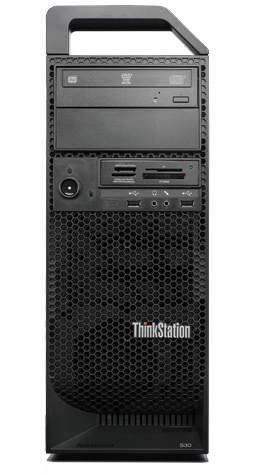

Lenovo S30+Nvidia Quadro 410

Model S30+Nvidia Quadro 410Part no. SV754GE/KIT

125 specifications

ProcessorIntel® Xeon® E5 Family
Memory8 GB
Storage1 TB
GraphicsNVIDIA® Quadro® 410
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 Family
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® Quadro® 410
Type: Workstation
OS: Windows 7 Professional

Brand: Lenovo
Category: PCs/Workstations
Model: S30+Nvidia Quadro 410
Part numbers: SV754GE/KIT, SV734GE/KIT, SV739GE/KIT, SV755GE+0B47075, SV739GE+0B47075, SV754GE+0B47075
Also known as: Lenovo ThinkStation S30+Nvidia Quadro 410 Intel® Xeon® E5 Family E5-1620 8 GB DDR3-SDRAM 1 TB HDD NVIDIA® Quadro® 410 Windows 7 Professional Tower Workstation B

Specifications

125 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1620
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.6 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	0 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600
Processor codename	Sandy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	64 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
CPU multiplier (bus/core ratio)	38
Stepping	M1
Maximum internal memory supported by processor	375 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	4 x 2 GB
Memory slots	8x DIMM
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD-RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® 410
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
Serial ports quantity	1

Power

Specification	Value
Power supply	610 W

Design

Specification	Value
Chassis type	Tower
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64621
Processor code	SR0LC
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	175 mm
Depth	460 mm
Height	478 mm
Weight	17.5 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold
