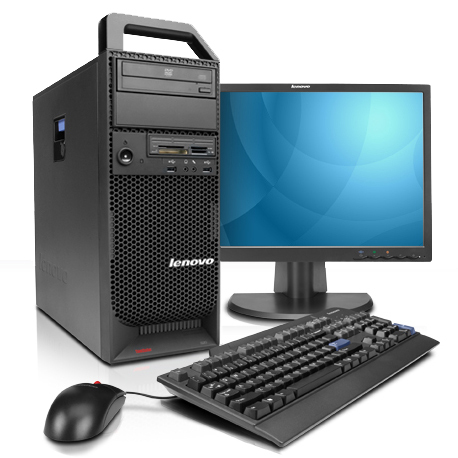

S20 + ThinkVision L2321x
Model S20 + ThinkVision L2321xPart no. SNCJ6MB#*T14HNEU*
99 specifications
- Display58.4 cm (23")
- ProcessorIntel® Xeon® 3000 Sequence
- Memory6 GB
- Storage500 GB
- TypeWorkstation
- OSWindows 7 Professional
Overview
- Display
- 58.4 cm (23")
- Processor
- Intel® Xeon® 3000 Sequence
- Memory
- 6 GB
- Storage
- 500 GB
- Type
- Workstation
- OS
- Windows 7 Professional
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- S20 + ThinkVision L2321x
- Part numbers
- SNCJ6MB#*T14HNEU*, SNCJ6FR+T14HNEU
- Also known as
- Lenovo ThinkStation S20 + ThinkVision L2321x Intel® Xeon® 3000 Sequence W3550 6 GB DDR3-SDRAM Windows 7 Professional Tower Workstation
Specifications
99 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 3000 Sequence |
| Processor model | W3550 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.33 GHz |
| Processor frequency | 3.06 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 4.8 GT/s |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon 3500 Series |
| Processor codename | Bloomfield |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 67.9 °C |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | Socket B (LGA 1366) |
| Number of Processing Die Transistors | 731 M |
| Processing Die size | 263 mm² |
| CPU multiplier (bus/core ratio) | 23 |
| Processor core voltage (AC) | 1.225 V |
| Stepping | D0 |
| Maximum internal memory supported by processor | 24 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Maximum internal memory | 24 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 3 x 2 GB |
| ECC | Yes |
| Memory channels | Triple-channel |
Storage
| Specification | Value |
|---|---|
| Optical drive type | DVD-RW |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X58 Express |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet (10/100/1000) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC, 50/60 Hz |
| Power supply | 625 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
| Resolution | 1920 x 1080 pixels |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 39720 |
| Processor package size | 42.5 x 45.0 mm |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | AD1988A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 460 mm |
| Height | 478 mm |
| Weight | 16.3 kg |
