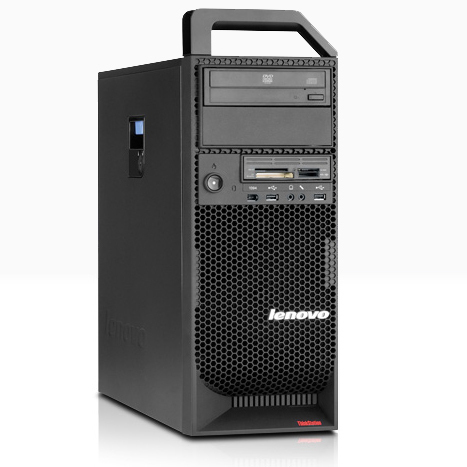

ThinkStation S10 Intel® Core™ 2 Extreme X6800
4 GB DDR3-SDRAM Windows Vista Business Tower Workstation
Model S10Part no. SBB73GEEAN 883609976057
86 specifications
- ProcessorIntel® Core™ 2 Extreme
- Memory4 GB
- Storage500 GB
- TypeWorkstation
- OSWindows Vista Business
- Weight16.3 kg
Overview
- Processor
- Intel® Core™ 2 Extreme
- Memory
- 4 GB
- Storage
- 500 GB
- Type
- Workstation
- OS
- Windows Vista Business
- Weight
- 16.3 kg
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- S10
- Part numbers
- SBB73GE, SBB21GE, SBB71GE
- EAN / UPC
- 883609976057, 883609646363, 883609975296, 8836099752962
- Also known as
- Lenovo ThinkStation S10 Intel® Core™ 2 Extreme X6800 4 GB DDR3-SDRAM Windows Vista Business Tower Workstation
Specifications
86 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ 2 Extreme |
| Processor model | X6800 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.93 GHz |
| Processor cache | 4 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Extreme X6000 Series |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 75 W |
| Tcase | 60.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| CPU multiplier (bus/core ratio) | 11 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 4 x 1 GB |
| Memory clock speed | 1066 MHz |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 0.768 GB |
| Graphics card | Quadro FX 4600 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® X38 Express |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| Power supply input voltage | 100 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27258 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | ADI 1988 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 460 mm |
| Height | 478 mm |
| Weight | 16.3 kg |
