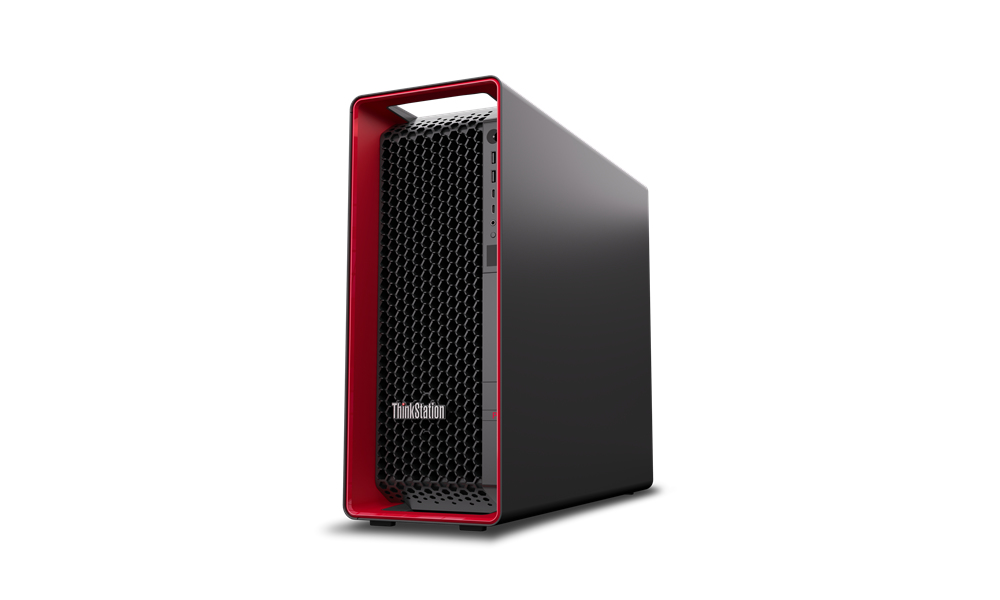

ThinkStation P7 Intel Xeon W w5-3435X
32 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro for Workstations Tower Workstation Black, Red
Model P7Part no. 30F3004TUSEAN 197528347059
92 specifications
- ProcessorIntel Xeon W
- Memory32 GB
- Storage512 GB
- GraphicsNVIDIA T400
- TypeWorkstation
- OSWindows 11 Pro for Workstations
Overview
- Processor
- Intel Xeon W
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- NVIDIA T400
- Type
- Workstation
- OS
- Windows 11 Pro for Workstations
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P7
- Part numbers
- 30F3004TUS, 30F30017US, 30F30013US, 30F30018US, 30F30015US, 30F30055US +34 more
- EAN / UPC
- 197528347059, 196804816197, 196804816425, 196804820392 +56 more
- Also known as
- Lenovo ThinkStation P7 Intel Xeon W w5-3435X 32 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro for Workstations Tower Workstation Black, Red
Specifications
92 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | w5-3435X |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3.1 GHz |
| Performance cores | 16 |
| Efficient cores | 0 |
| Processor cache | 45 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 324 W |
| Processor base power | 270 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA T400 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 3 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W790 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100,10000 Mbit/s |
| LAN controller | Intel® I219-LM, Marvell AQtion AQC113C |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1400 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 39 L |
| Placement supported | Horizontal/Vertical |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Operating system architecture | 64-bit |
| Operating system language | English |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897-Q |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 508 mm |
| Height | 440.4 mm |
| Weight | 24.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ISV |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
