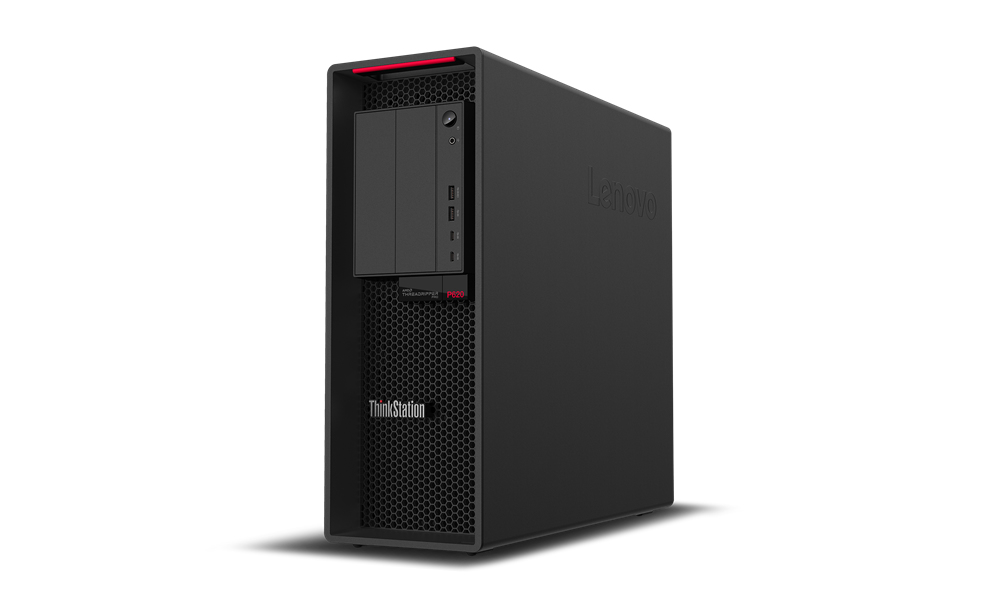

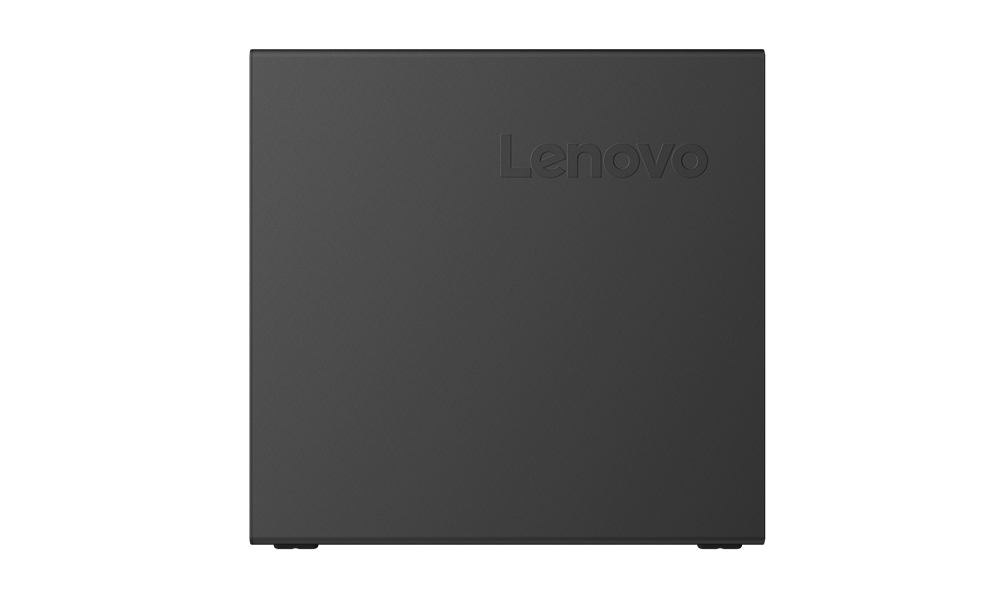

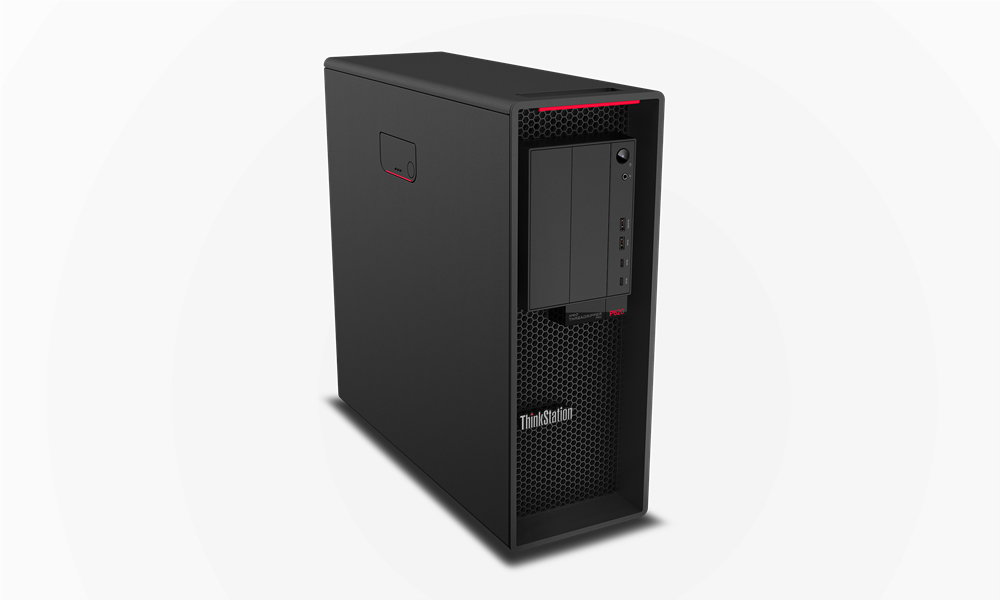

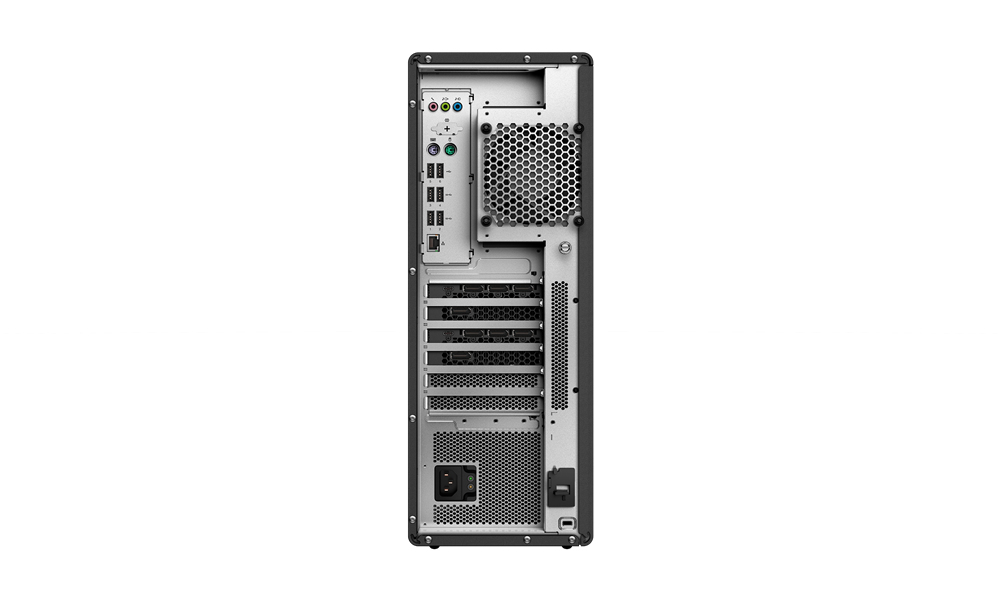

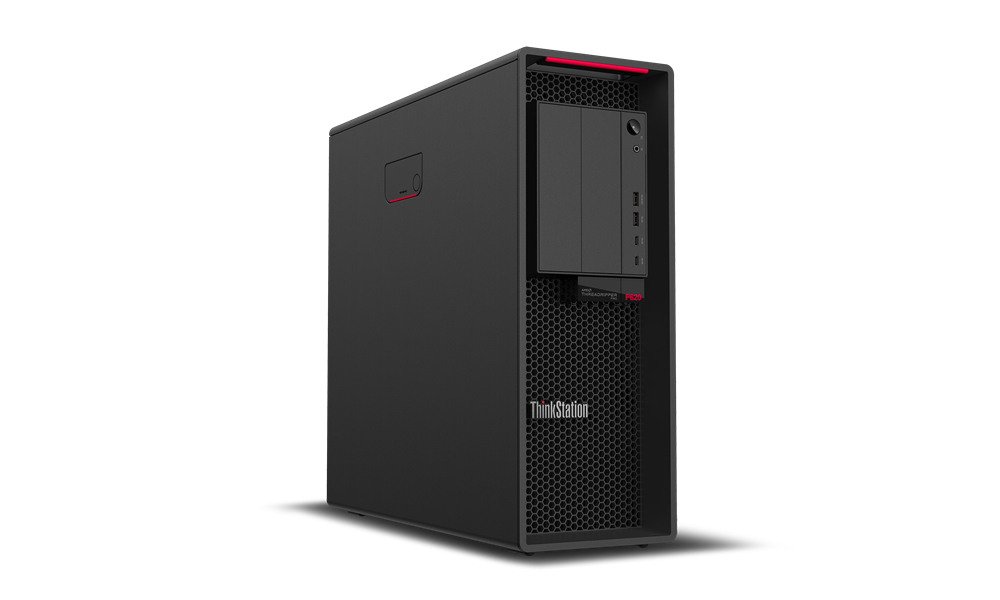

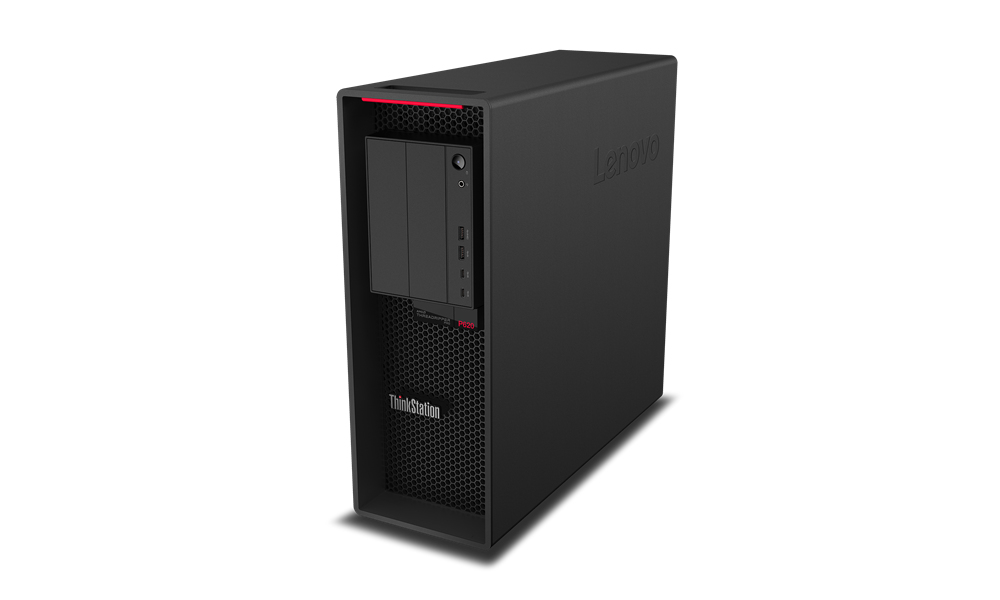

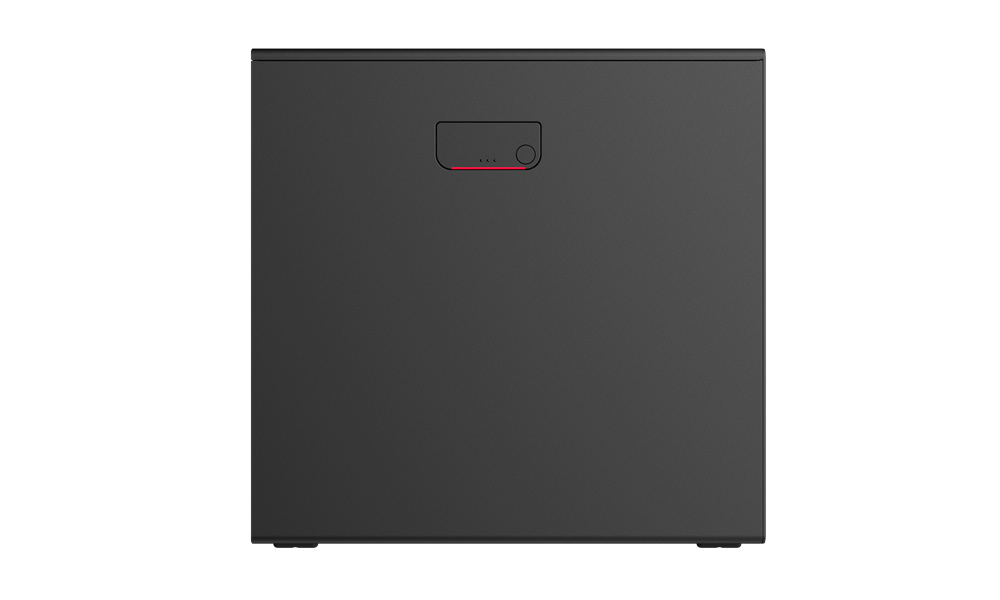

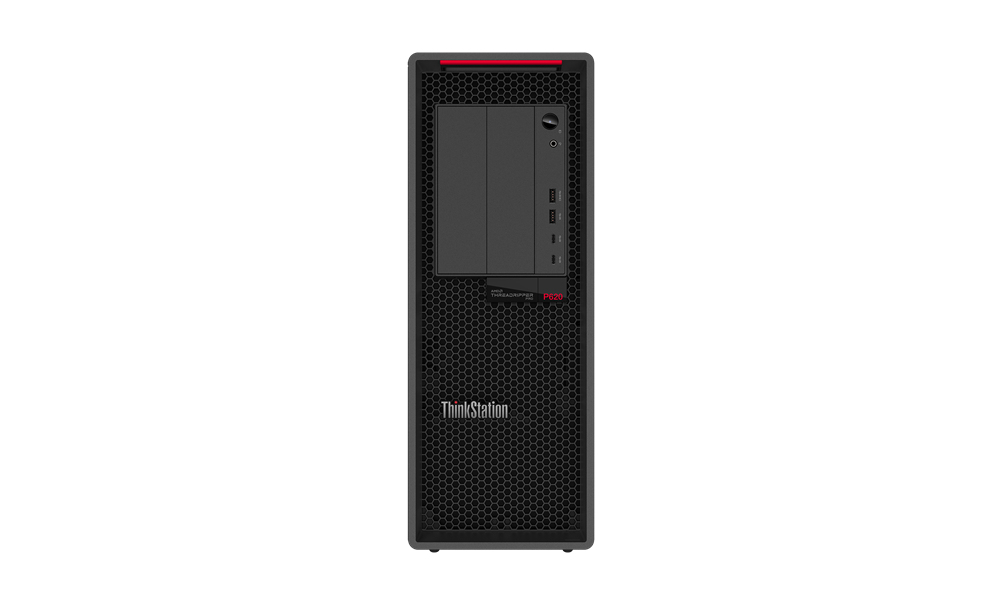

ThinkStation P620 AMD Ryzen™ Threadripper™ 3945WX
32 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro P2200 Windows 10 Pro Tower Workstation Black
Model P620Part no. 30E0003EUSEAN 195348244008
78 specifications
- ProcessorAMD Ryzen™ Threadripper™
- Memory32 GB
- Storage512 GB
- GraphicsNVIDIA Quadro P2200
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- AMD Ryzen™ Threadripper™
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- NVIDIA Quadro P2200
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P620
- Part numbers
- 30E0003EUS, 30E0000HFR, 30E0001TFR, 30E0000EFR, 30E0001MFR, 30E0004CUS +34 more
- EAN / UPC
- 195348244008, 195348205511, 195348196567, 195348206693 +56 more
- Also known as
- Lenovo ThinkStation P620 AMD Ryzen™ Threadripper™ 3945WX 32 GB DDR4-SDRAM 512 GB SSD NVIDIA Quadro P2200 Windows 10 Pro Tower Workstation Black
Specifications
78 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ Threadripper™ |
| Processor generation | AMD Ryzen Threadripper 3000 Series |
| Processor model | 3945WX |
| Processor cores | 12 |
| Processor threads | 24 |
| Processor boost frequency | 4.3 GHz |
| Processor frequency | 4 GHz |
| Processor cache | 64 MB |
| Processor cache type | L2 & L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA Quadro P2200 |
| Discrete graphics card memory | 5 GB |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | AMD WRX80 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| DVI port | No |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 33 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC4050H |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 460 mm |
| Height | 446 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
