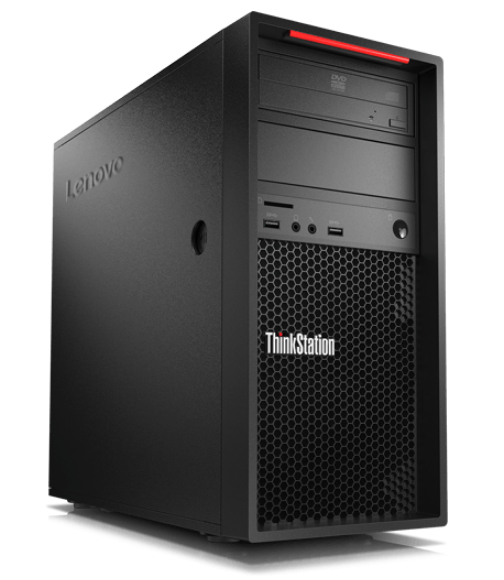

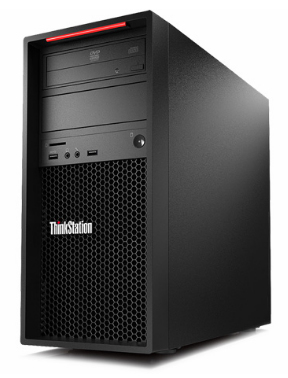

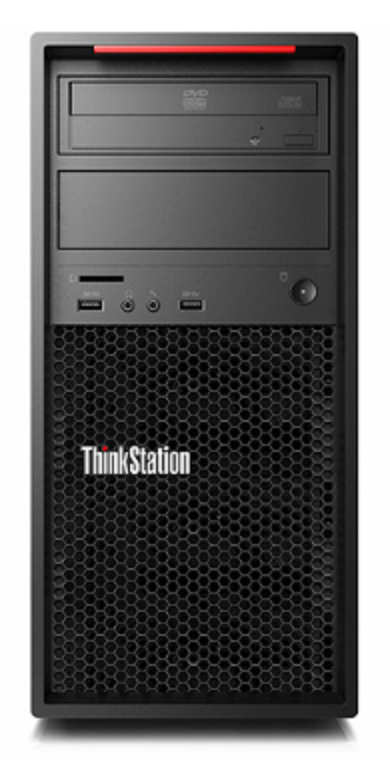

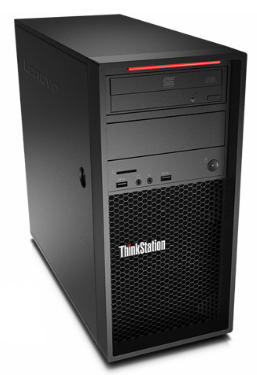

P520c Workstation

Model P520c WorkstationPart no. 30BX008GUKEAN 195042243154

133 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: P520c Workstation
Part numbers: 30BX008GUK, 30BX004JUK, 30BX004SUK, 30BX008SUK, 30BX008JUK, 30BX008RUK
EAN / UPC: 195042243154, 192563526865, 193638285885, 194778373845 +2 more
Also known as: Lenovo ThinkStation P520c Workstation Intel® Xeon® W-2123 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Tower Black

133 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Processor model	W-2123
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.6 GHz
Processor cache	8.25 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor codename	Skylake
Thermal Design Power (TDP)	120 W
Tcase	65 °C
Maximum number of PCI Express lanes	48
PCI Express configurations	1x16, 1x4, 1x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2066 (Socket R4)
Stepping	U0
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400,2666 MHz
Memory bandwidth supported by processor (max)	85.3 GB/s
ECC supported by processor	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No

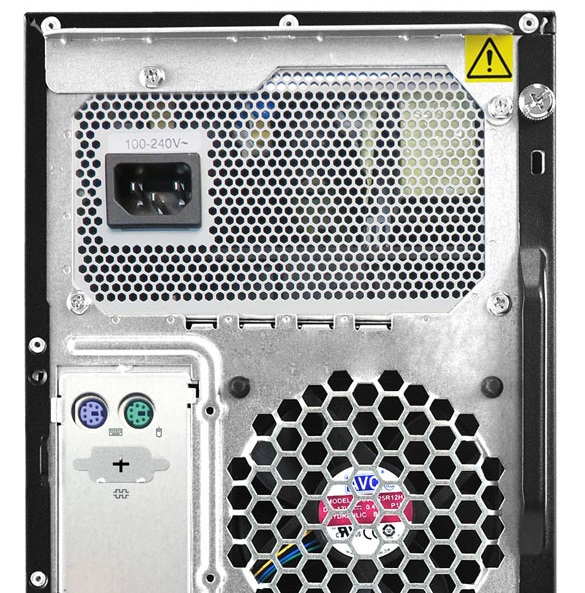

PS/2 ports quantity	2
Serial ports quantity	1

Specification	Value
Power supply	500 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Specification	Value
Chassis type	Tower
Volume	25 L
Placement supported	Vertical
Product colour	Black
Intel® vPro™ Platform Eligibility	Yes

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Drivers included	Yes

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	No
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	125036
Processor code	SR3LJ
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
