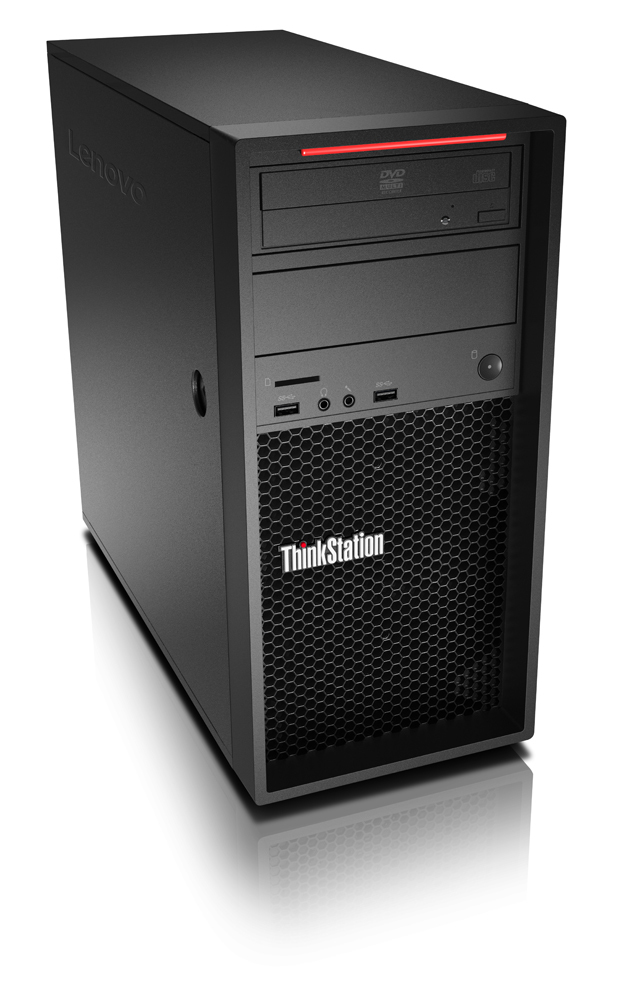

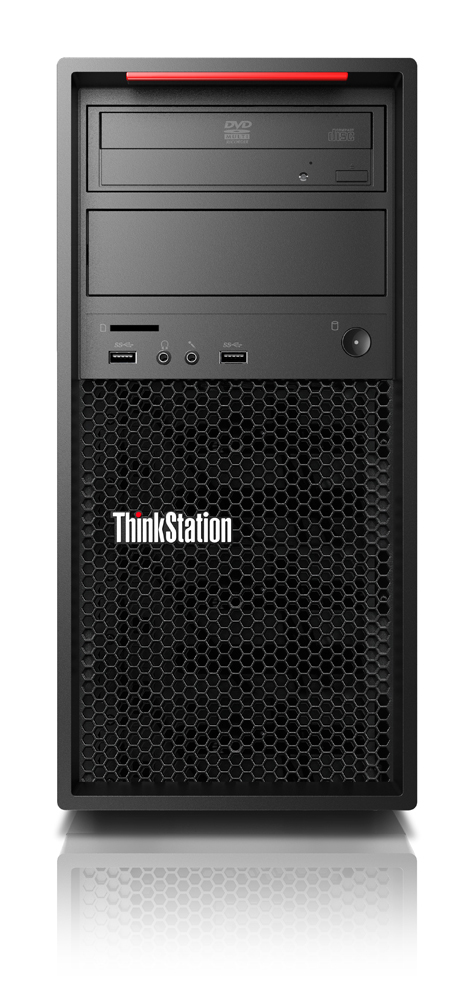

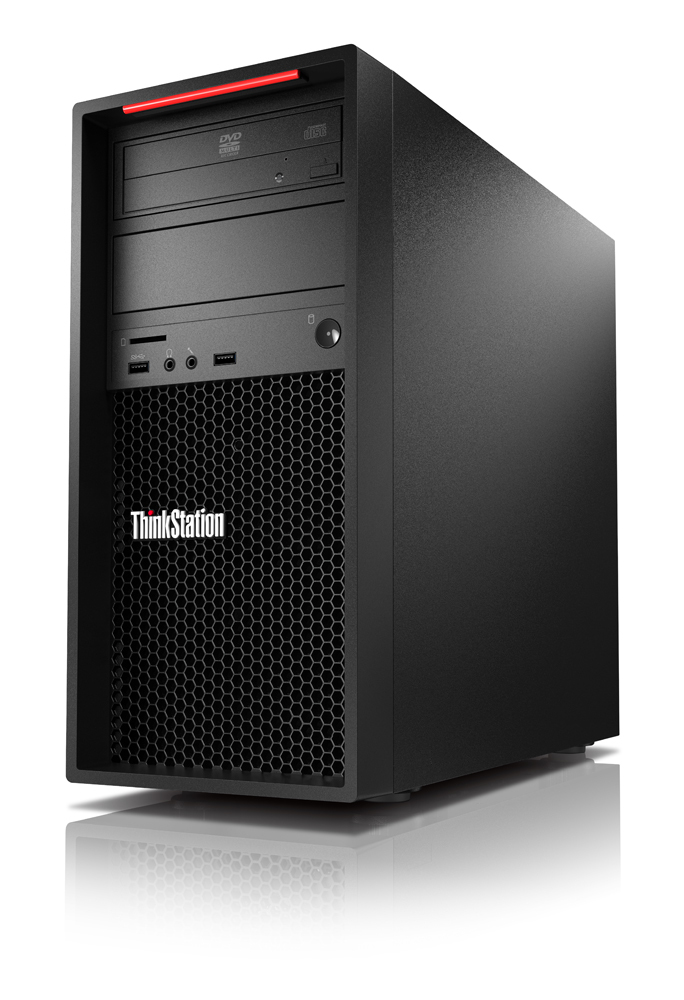

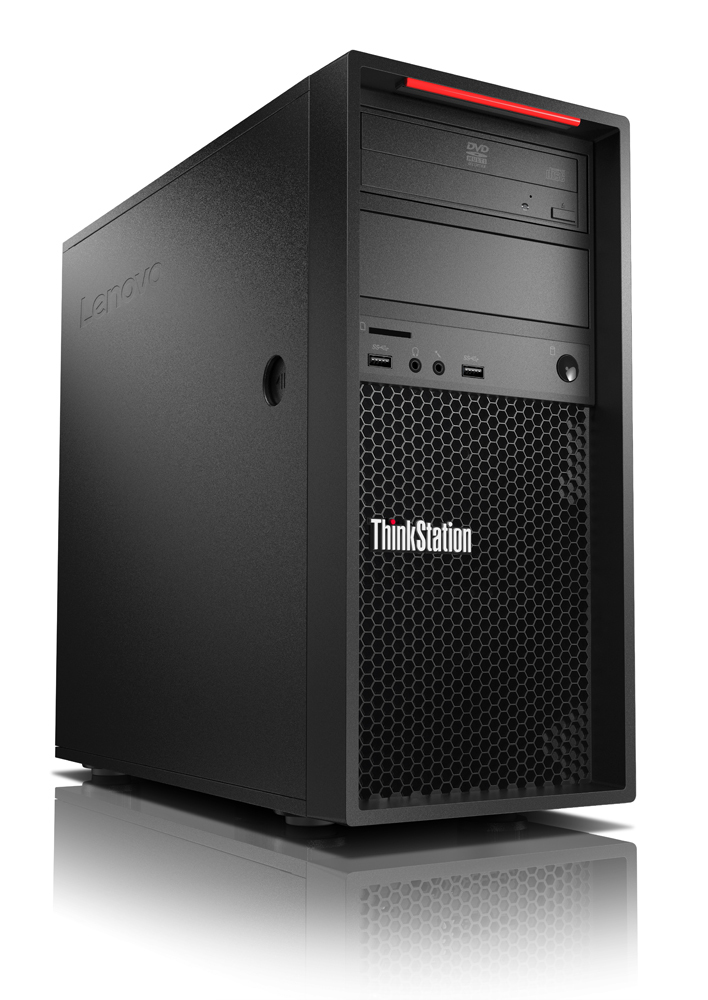

P520c + 61A5GAT3EU
Model P520c + 61A5GAT3EUPart no. 30BX000UFR+61A5GAT3EU/KIT
130 specifications
- Display61 cm (24")
- ProcessorIntel® Xeon®
- Memory16 GB
- Storage1.25 TB
- GraphicsNVIDIA® Quadro® P2000
- TypeWorkstation
Overview
- Display
- 61 cm (24")
- Processor
- Intel® Xeon®
- Memory
- 16 GB
- Storage
- 1.25 TB
- Graphics
- NVIDIA® Quadro® P2000
- Type
- Workstation
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P520c + 61A5GAT3EU
- Part number
- 30BX000UFR+61A5GAT3EU/KIT
- Also known as
- Lenovo ThinkStation P520c + 61A5GAT3EU Intel® Xeon® W-2125 16 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® Quadro® P2000 Windows 10 Pro for Workstations Tower Workstat
Specifications
130 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | W-2125 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 4 GHz |
| Processor cache | 8.25 MB |
| Bus type | QPI |
| System bus rate | 0 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 120 W |
| Tcase | 64 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Stepping | U0 |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.25 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® Quadro® P2000 |
| Discrete graphics card memory | 5 GB |
| Number of discrete graphics cards | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C422 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |

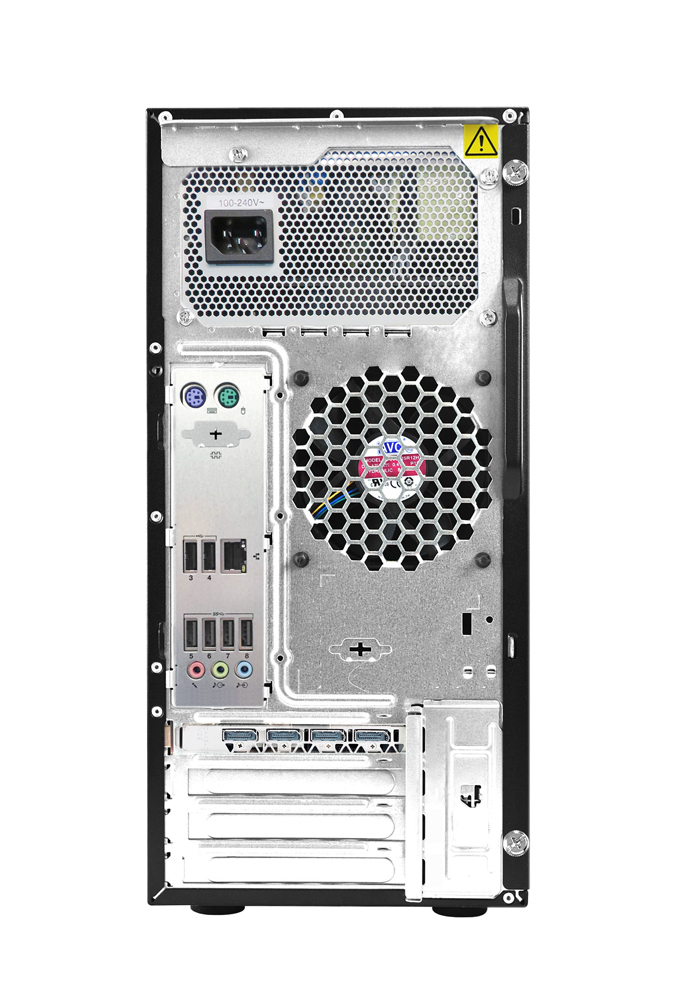

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 25 L |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro for Workstations |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 61 cm (24") |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor ARK ID | 126708 |
| Processor code | SR3LM |
| Processor package size | 45 x 52.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating altitude | -15.2 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 426 mm |
| Height | 376 mm |
| Weight | 14.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
