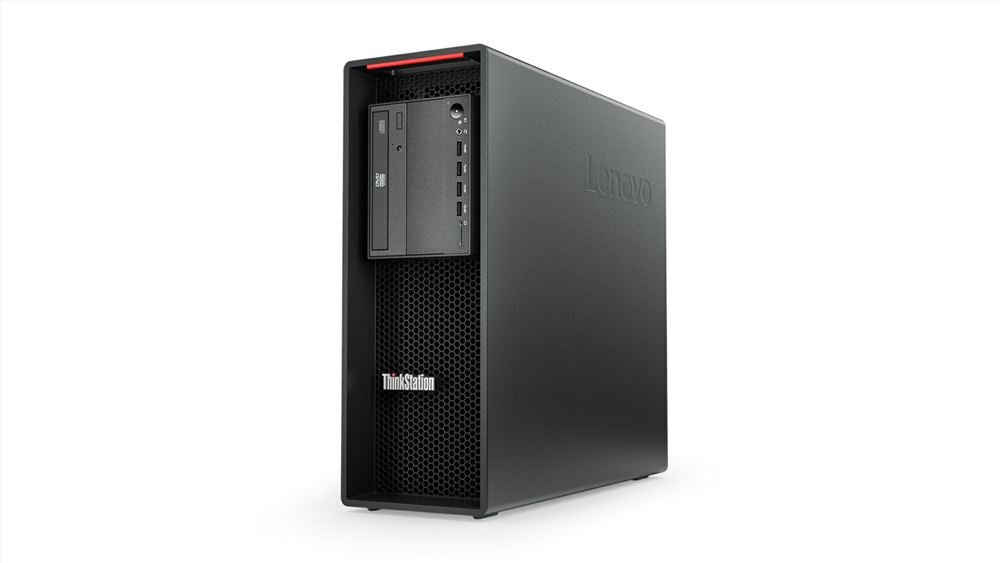

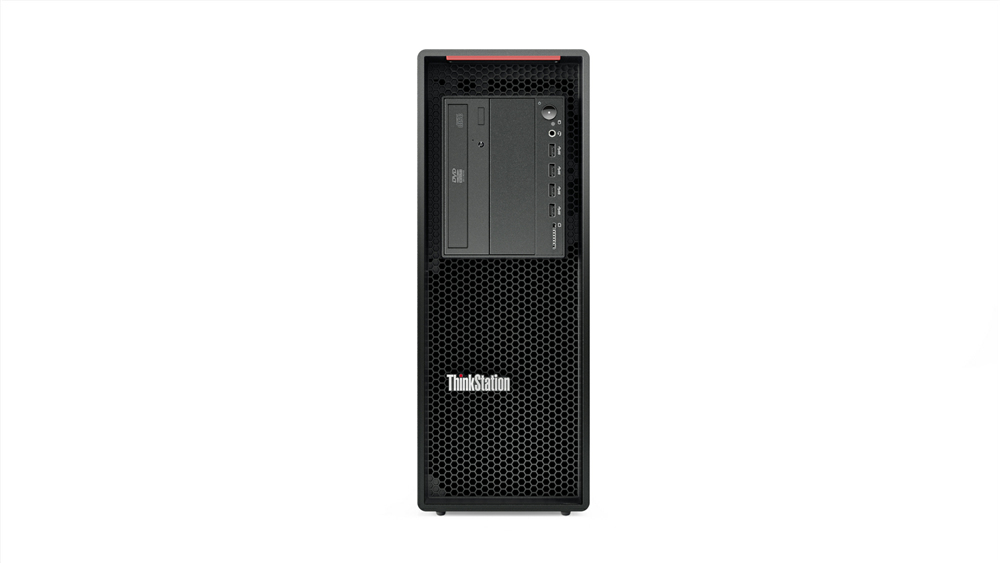

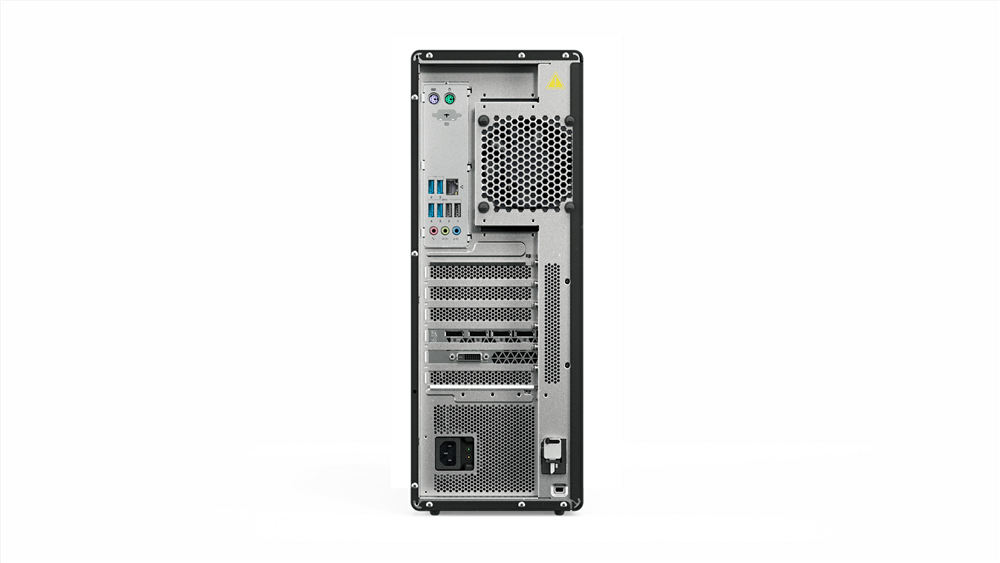

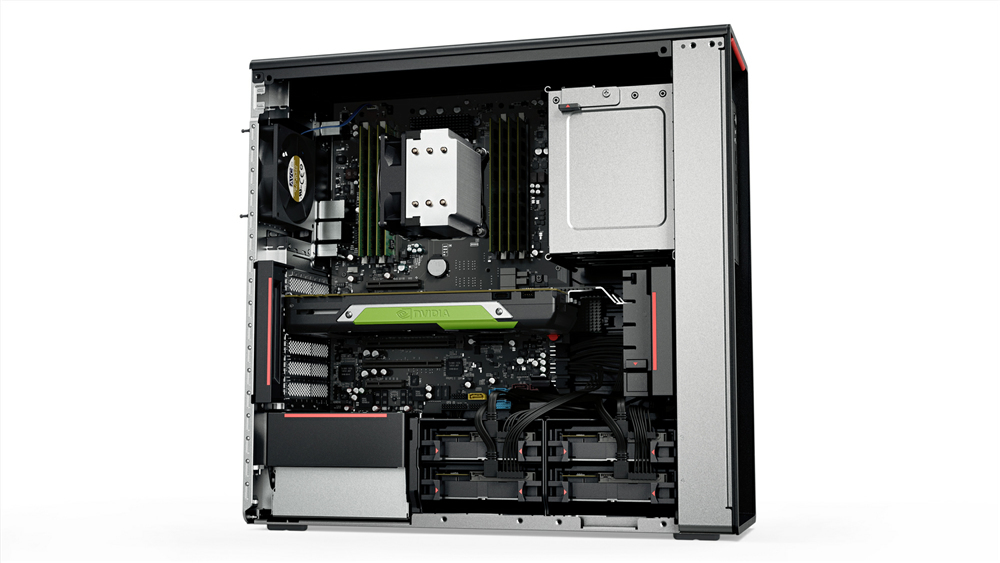

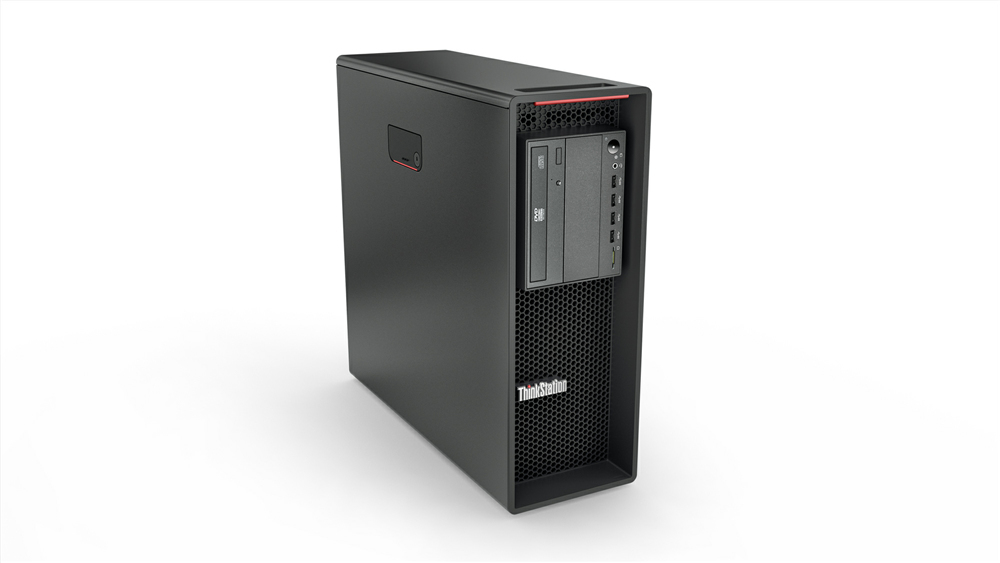

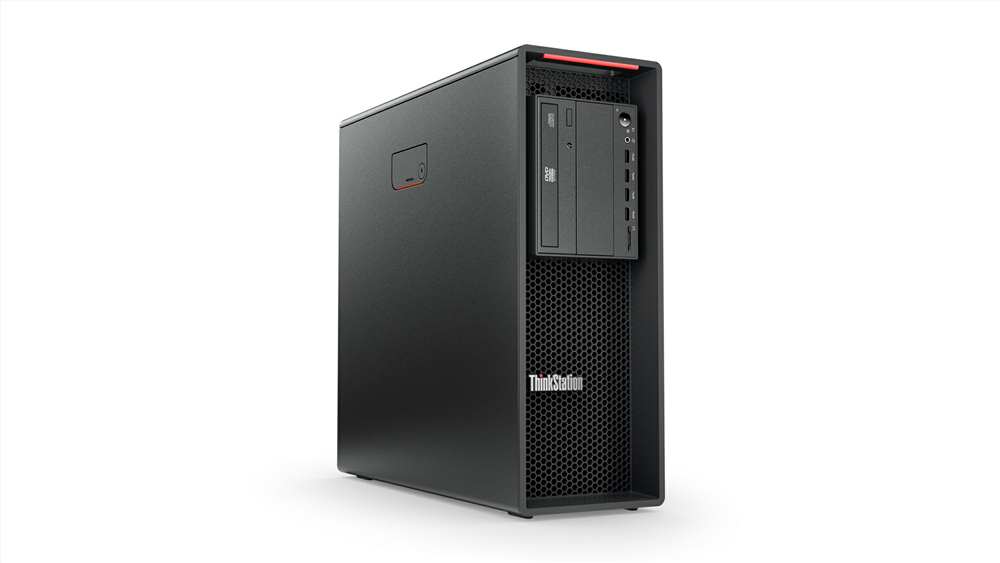

Lenovo ThinkStation P520 Intel Xeon W W-2225
32 GB DDR4-SDRAM 1.51 TB HDD+SSD Windows 11 Pro for Workstations Tower Workstation Black
Model P520Part no. 30BE004NUSEAN 192158677644
76 specifications
- ProcessorIntel Xeon W
- Memory32 GB
- Storage1.51 TB
- GraphicsNot available
- TypeWorkstation
- OSWindows 11 Pro for Workstations
Overview
- Processor
- Intel Xeon W
- Memory
- 32 GB
- Storage
- 1.51 TB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 11 Pro for Workstations
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P520
- Part numbers
- 30BE004NUS, 30BES2PR00, 30BE006XMH, 30BE0073MH, 30BE006SMT, 30BE004PUS +34 more
- EAN / UPC
- 192158677644, 192330079778, 192330073387, 192330077385 +56 more
- Also known as
- Lenovo ThinkStation P520 Intel Xeon W W-2225 32 GB DDR4-SDRAM 1.51 TB HDD+SSD Windows 11 Pro for Workstations Tower Workstation Black
Specifications
76 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | W-2225 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 4.1 GHz |
| Processor cache | 8.25 MB |
| Bus type | QPI |
| Number of processors installed | 1 |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 8x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.51 TB |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD interface | SATA |
| HDD size | 3.5" |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C422 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 33 L |
| Product colour | Black |
| Certified refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro for Workstations |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro for Workstations |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC662 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 460 mm |
| Height | 440 mm |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
