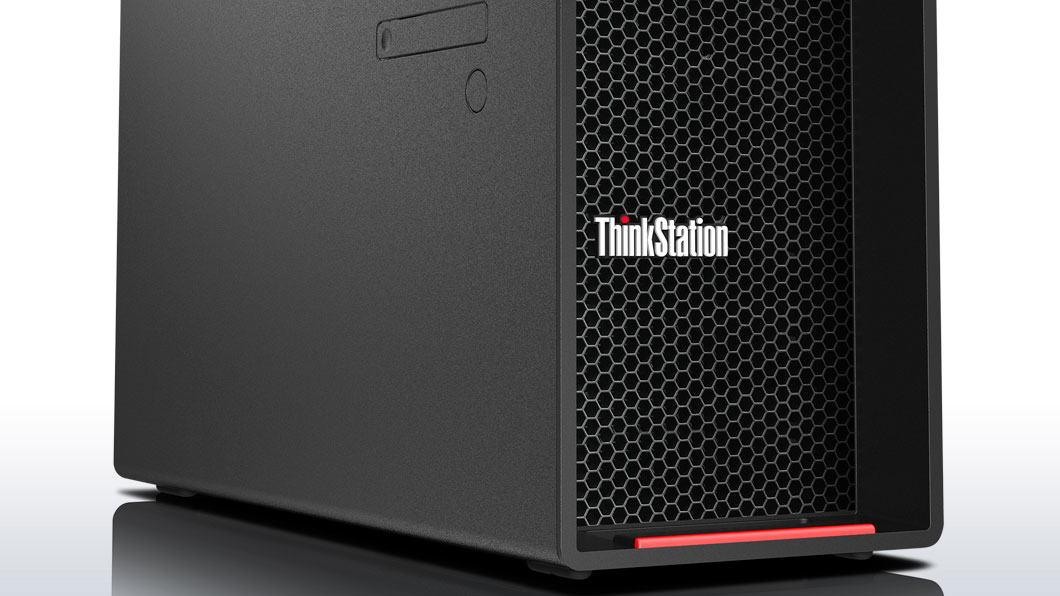

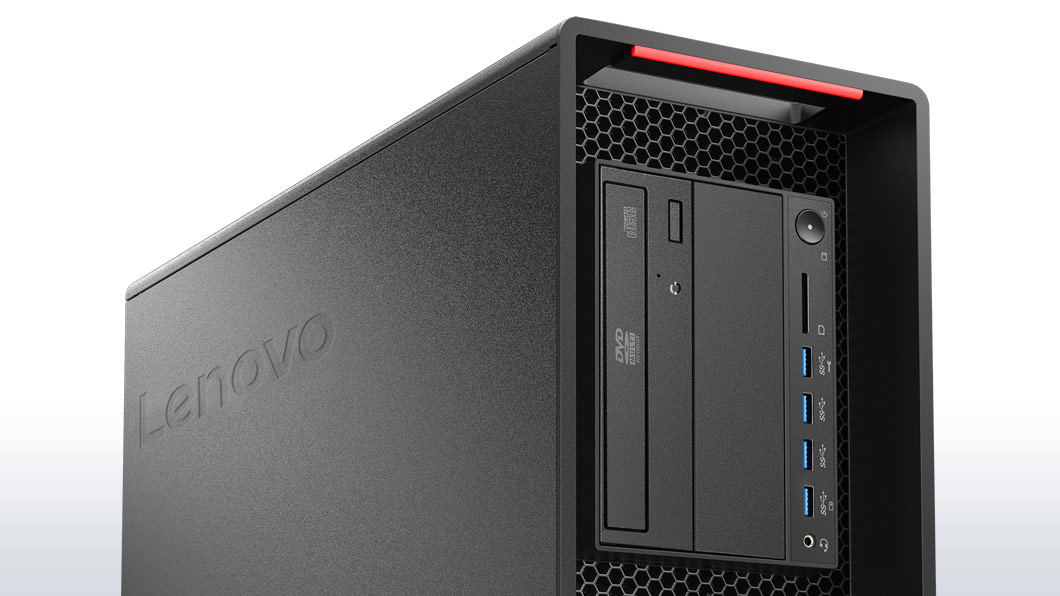

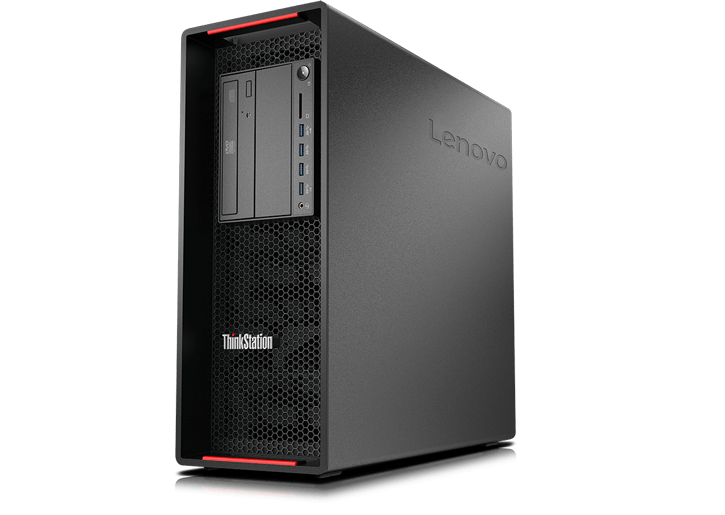

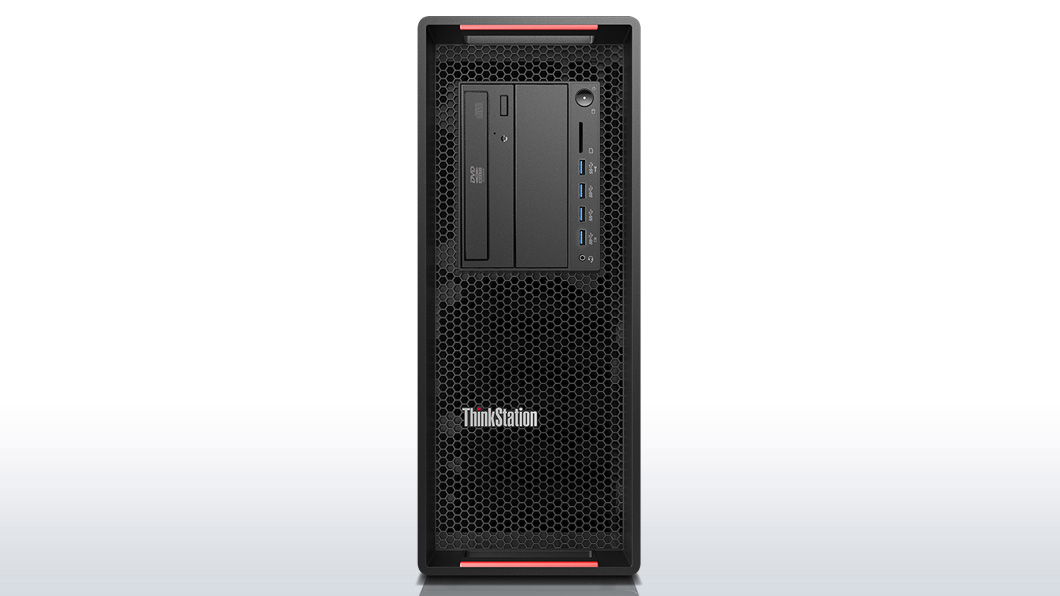

Lenovo ThinkStation P510 Intel® Xeon® E5 v4 E5-1620V4

8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Tower Workstation Black

Model P510Part no. 30B50031USEAN 190404886369

121 specifications

ProcessorIntel® Xeon® E5 v4
Memory8 GB
Storage256 GB
GraphicsNot available
TypeWorkstation
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Xeon® E5 v4
Memory: 8 GB
Storage: 256 GB
Graphics: Not available
Type: Workstation
OS: Windows 10 Pro

Brand: Lenovo
Category: PCs/Workstations
Model: P510
Part numbers: 30B50031US, 30B50011MZ, 30B5001CMZ, 30B5000DMZ, 30B50019MZ, 30B50032US +34 more
EAN / UPC: 190404886369, 190404887717, 190404876414, 190404883412 +56 more
Also known as: Lenovo ThinkStation P510 Intel® Xeon® E5 v4 E5-1620V4 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Tower Workstation Black

Specifications

121 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-1620V4
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.5 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
System bus rate	0 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory slots	8x DIMM
Memory clock speed	2400 MHz
ECC	Yes
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
Card reader integrated	Yes
RAID support	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card model	Not available
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No

Expansion slots

Specification	Value
PCI Express x1 (Gen 1.x) slots	1
PCI Express x4 (Gen 2.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2

Power

Specification	Value
Power supply	650 W

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	92991
Processor code	SR2P7
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC662

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	175 mm
Depth	470 mm
Height	440 mm
Weight	22.2 kg
