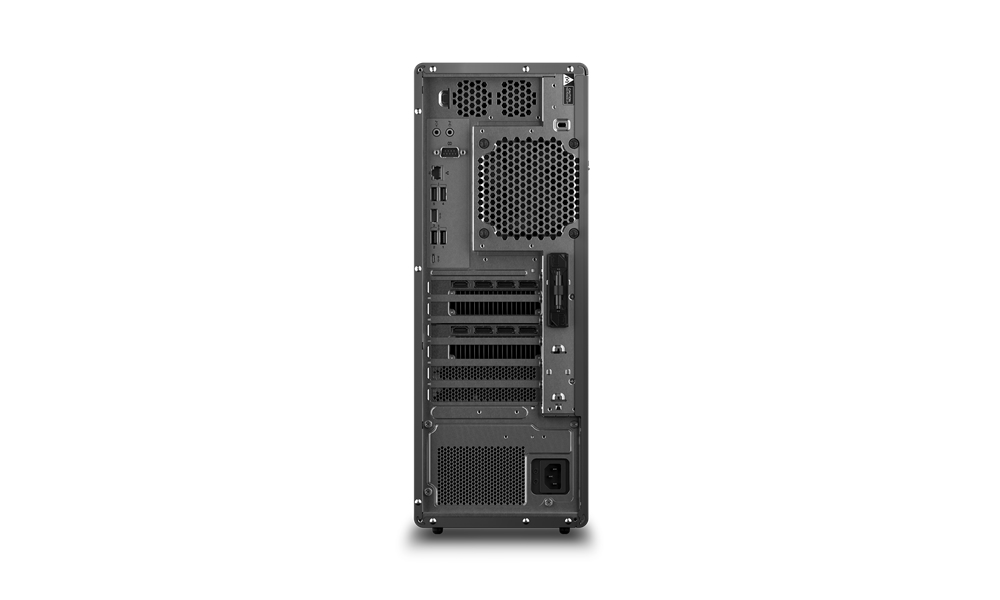

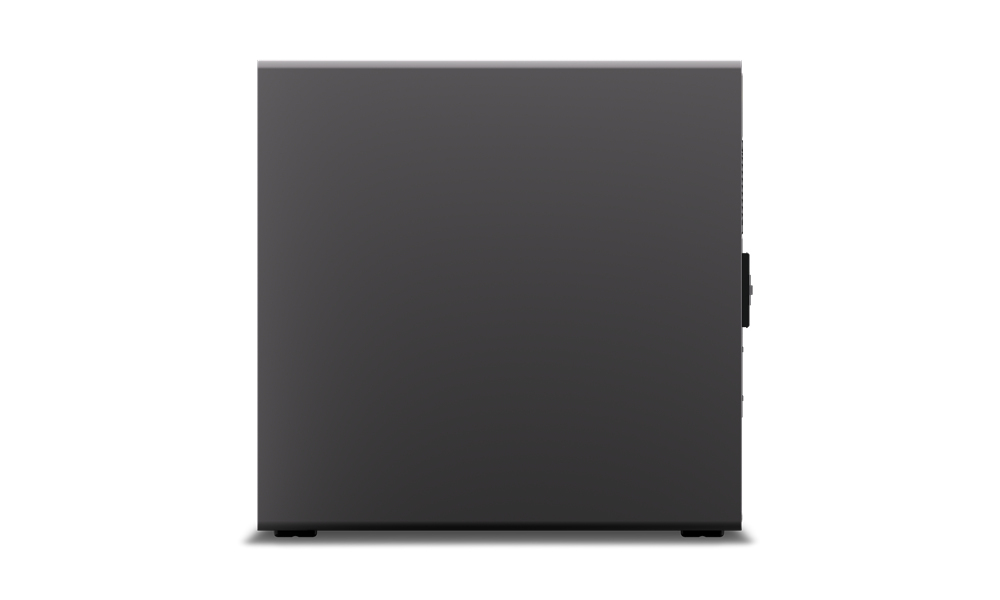

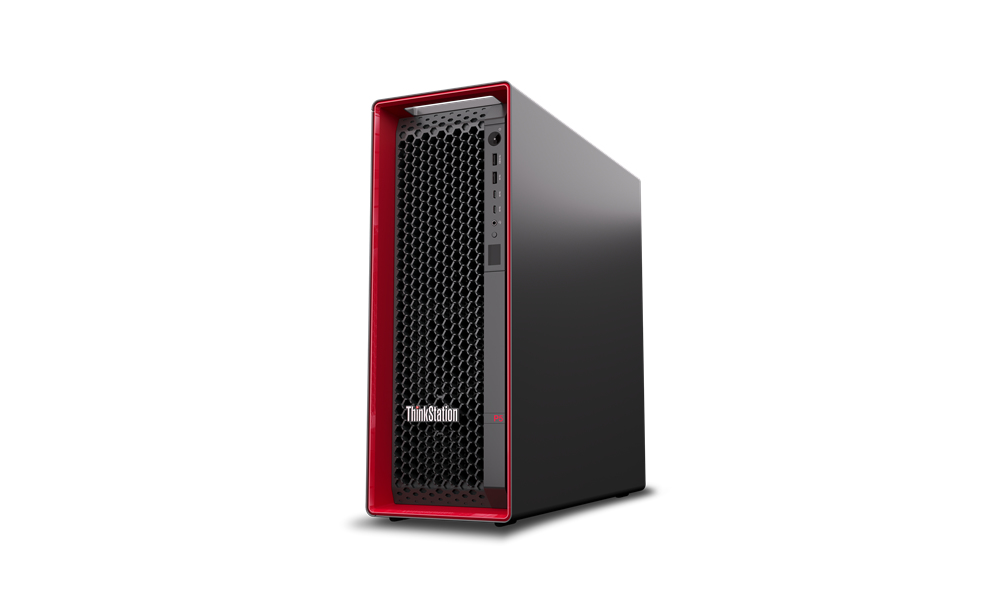

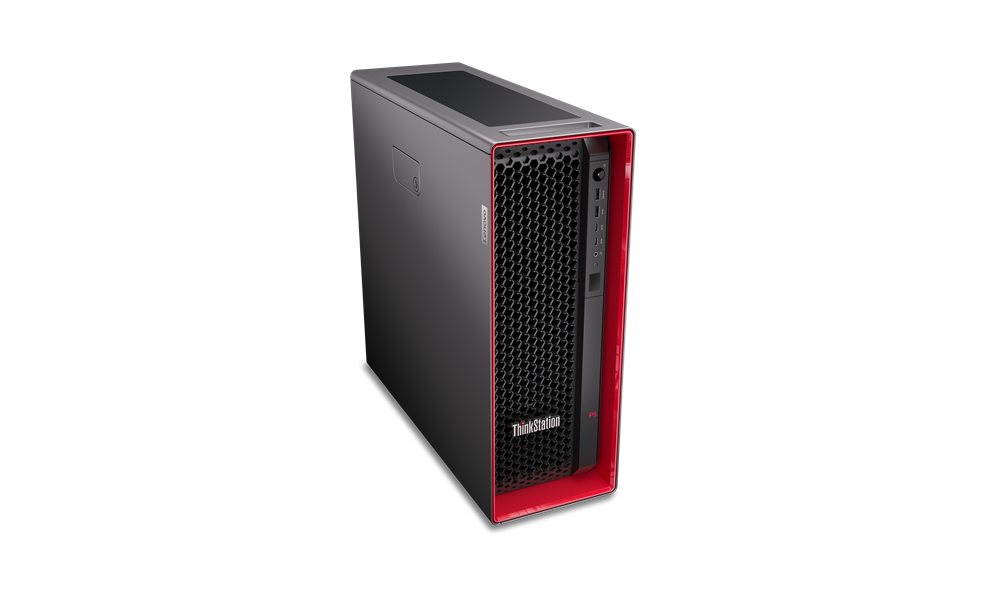

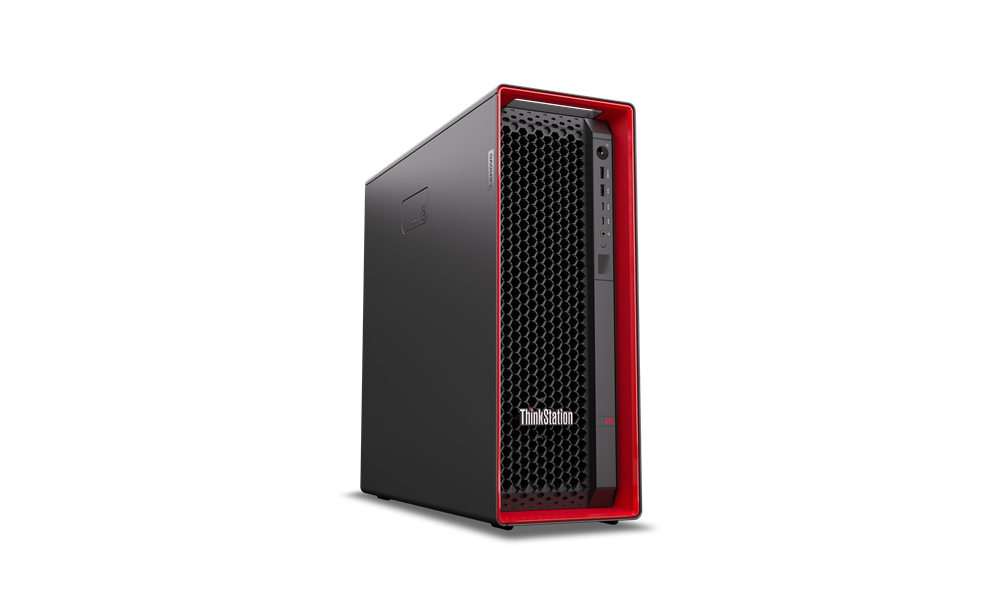

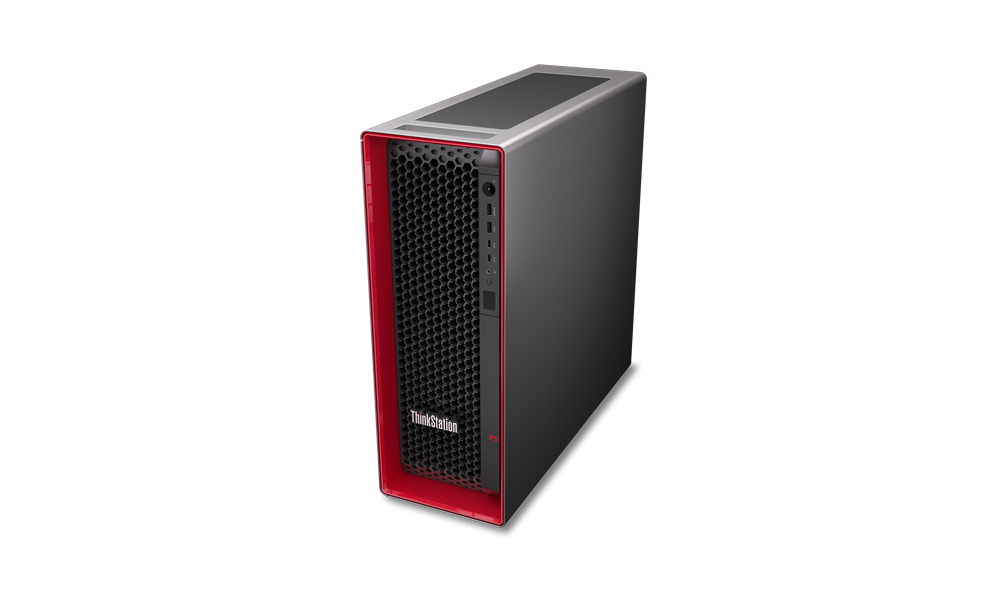

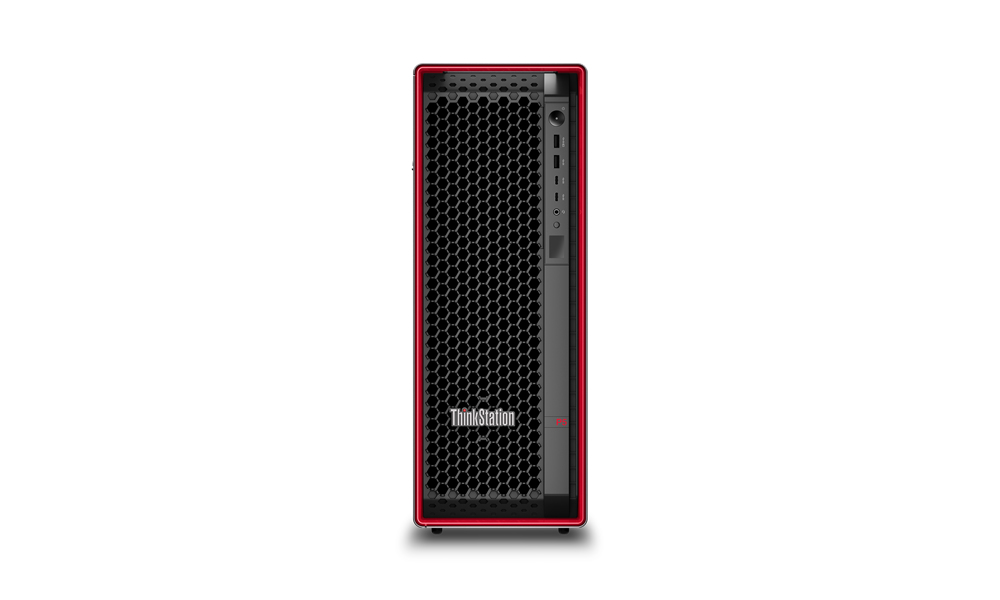

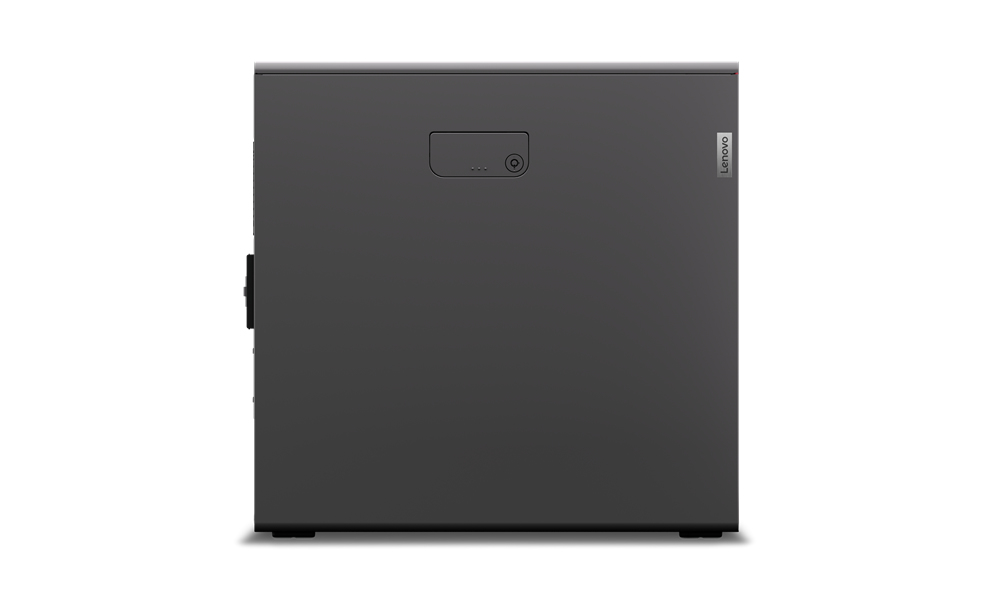

ThinkStation P5 Intel Xeon W w3-2435
32 GB DDR5-SDRAM 2.51 TB HDD+SSD NVIDIA RTX 2000 Ada Windows 11 Pro Tower Workstation Black, Red
Model P5Part no. 30GA002RMHEAN 197528258652
104 specifications
- ProcessorIntel Xeon W
- Memory32 GB
- Storage2.51 TB
- GraphicsNVIDIA RTX 2000 Ada
- SpeedWi-Fi 6E (802.11ax)
- TypeWorkstation
Overview
- Processor
- Intel Xeon W
- Memory
- 32 GB
- Storage
- 2.51 TB
- Graphics
- NVIDIA RTX 2000 Ada
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Workstation
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P5
- Part numbers
- 30GA002RMH, 30G9SA290N, 30G9SAWJ04, 30GAS0GC00, 30GAS0GD00, 30GA001GMH +34 more
- EAN / UPC
- 197528258652, 199275189692, 197531632333, 196804824604 +56 more
- Also known as
- Lenovo ThinkStation P5 Intel Xeon W w3-2435 32 GB DDR5-SDRAM 2.51 TB HDD+SSD NVIDIA RTX 2000 Ada Windows 11 Pro Tower Workstation Black, Red
Specifications
104 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | w3-2435 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 3.1 GHz |
| Performance cores | 8 |
| Efficient cores | 0 |
| Processor cache | 22.5 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 198 W |
| Processor base power | 165 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 512 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.51 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W790 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 33 L |

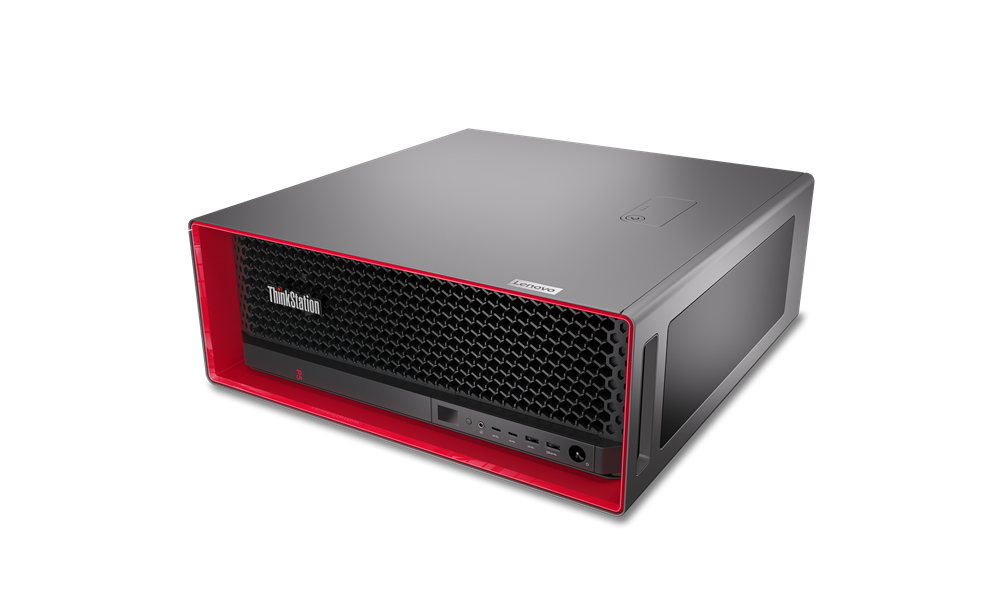

| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897-Q |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 453.9 mm |
| Height | 446 mm |
| Weight | 19 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold |
