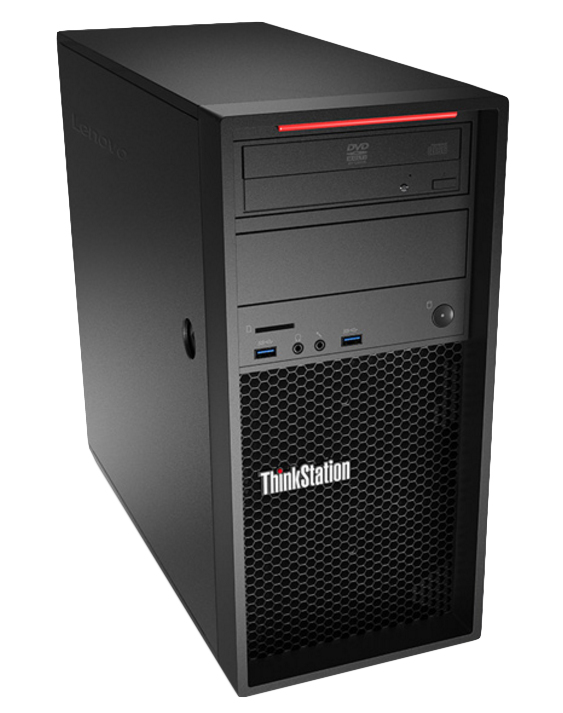

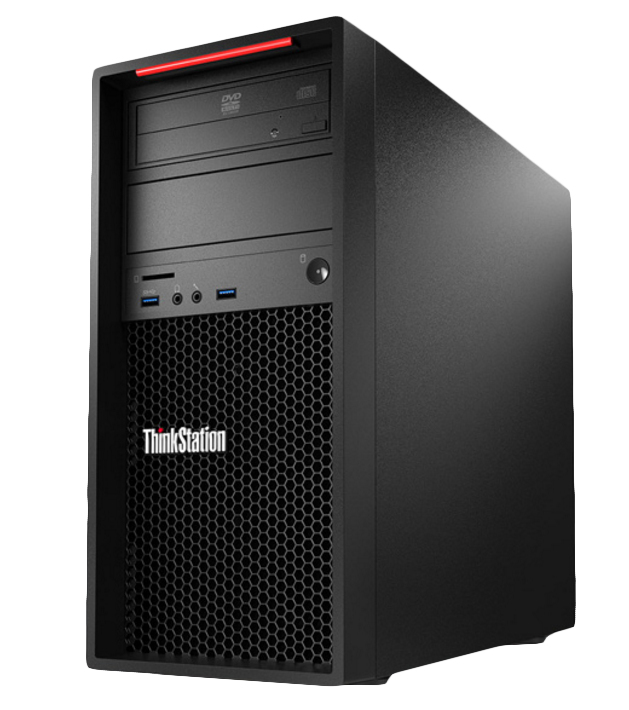

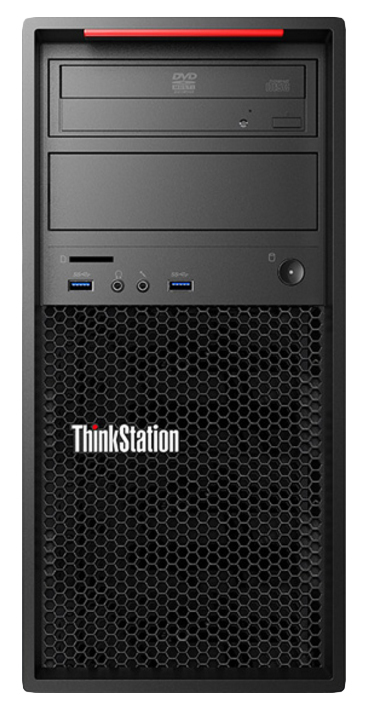

Lenovo P410 + 4X60M28228

Model P410 + 4X60M28228Part no. 30B30057FR+4X60M28228

130 specifications

ProcessorIntel® Xeon® E5 v4
Memory16 GB
Storage1 TB
GraphicsNVIDIA® Quadro® M2000
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Xeon® E5 v4
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA® Quadro® M2000
Type: Workstation
OS: Windows 7 Professional

Brand: Lenovo
Category: PCs/Workstations
Model: P410 + 4X60M28228
Part number: 30B30057FR+4X60M28228
Also known as: Lenovo ThinkStation P410 + 4X60M28228 Intel® Xeon® E5 v4 E5-1620V4 16 GB DDR4-SDRAM 1 TB HDD NVIDIA® Quadro® M2000 Windows 7 Professional Tower Workstation Blac

Specifications

130 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-1620V4
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.5 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v4
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Maximum number of PCI Express lanes	40
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 2011-v3
Stepping	R0
Maximum internal memory supported by processor	1.53 TB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	2400 MHz
Memory channels	Quad-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA® Quadro® M2000
Discrete graphics card memory	4 GB
On-board graphics card model	Not available

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C612
Compatible processor series	Intel® Xeon®
Trusted Platform Module (TPM)	Yes

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2

Power

Specification	Value
Power supply	450 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	Tower
Placement supported	Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Optional operating system supplied	Windows 10 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	92991
Processor package size	45 x 52.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC662

Weight & dimensions

Specification	Value
Width	175 mm
Depth	426 mm
Height	376 mm
Weight	14 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	GREENGUARD

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
