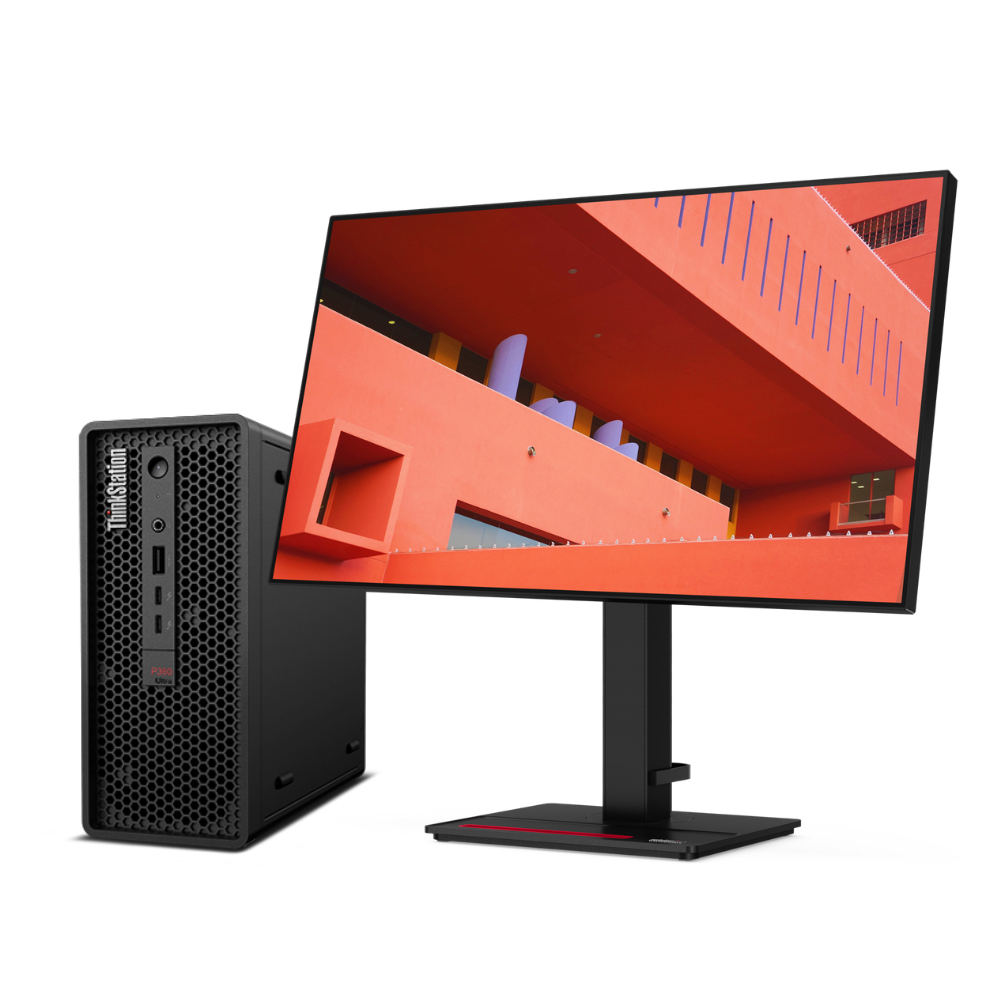

P360 Ultra + ThinkVision P27h-20
Model P360 Ultra + ThinkVision P27h-20Part no. 30G1003LMH-B1
105 specifications
- Display68.6 cm (27")
- Resolution2560 x 1440 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA Quadro T1000
Overview
- Display
- 68.6 cm (27")
- Resolution
- 2560 x 1440 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA Quadro T1000
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P360 Ultra + ThinkVision P27h-20
- Part numbers
- 30G1003LMH-B1, 30G10049MB-B1, 30G1005XMB-B1, 30G1003LMB-B1, 30G1002TMB-B1, 30G10049MH-B1 +2 more
- Also known as
- Lenovo ThinkStation P360 Ultra + ThinkVision P27h-20 Intel® Core™ i7 i7-12700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA Quadro T1000 Windows 11 Pro Mini Tower Workstat
Specifications
105 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor cores | 12 |
| Processor boost frequency | 4.9 GHz |
| Processor cache | 25 MB |
| Bus type | DMI4 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4000 MHz |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA Quadro T1000 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card Mini DisplayPort ports quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W680 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 170 W |
| Power supply input voltage | 100 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Volume | 3.9 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Operating system language | German, Dutch, English, French, Italian |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colours |
| Display brightness | 350 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 223 mm |
| Height | 202 mm |
| Weight | 3.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | EPEAT Gold ENERGY STAR 8.0 TCO Certified 9.0 RoHS MIL-STD-810H ISV |
