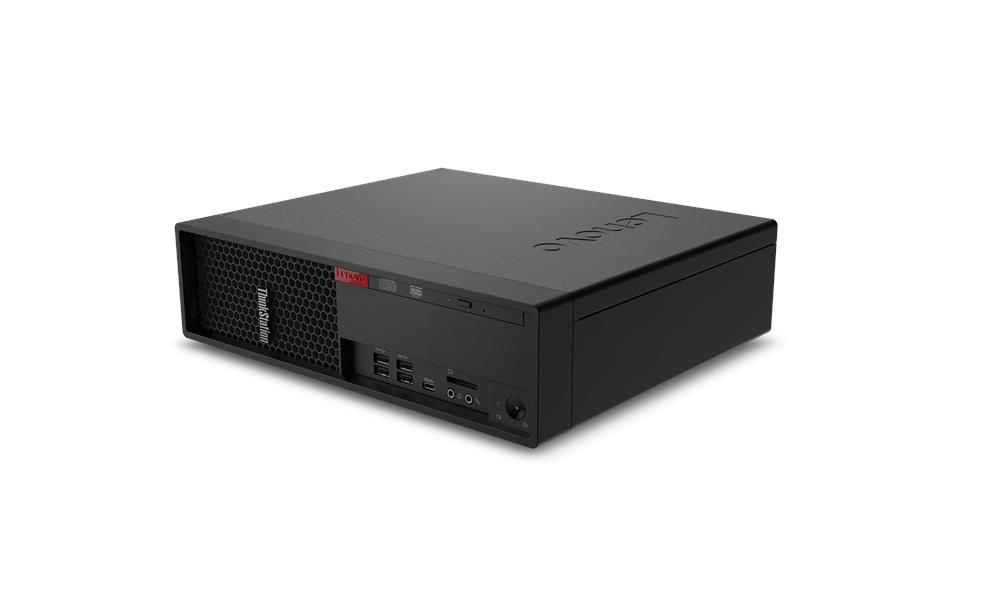

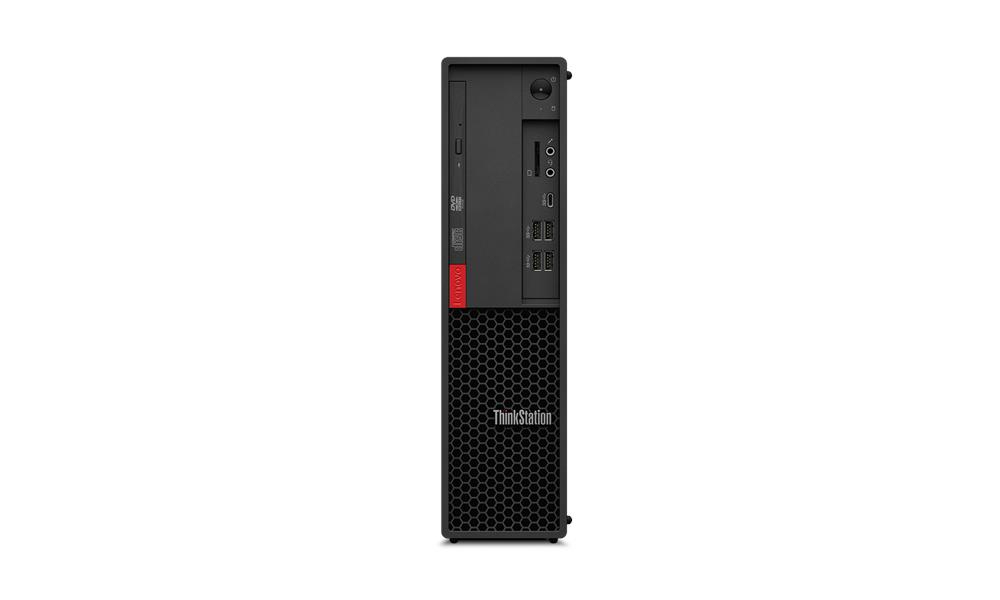

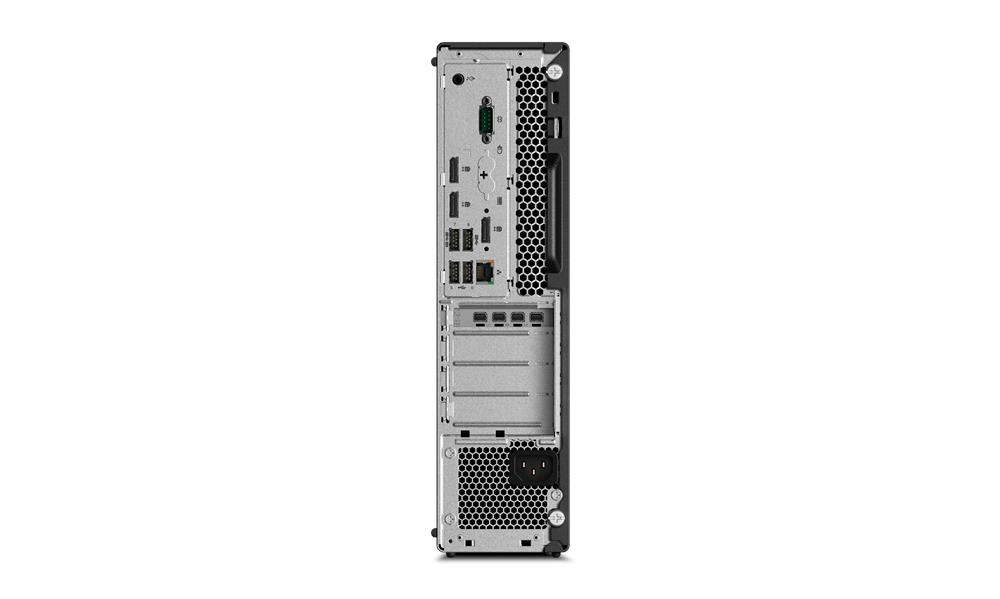

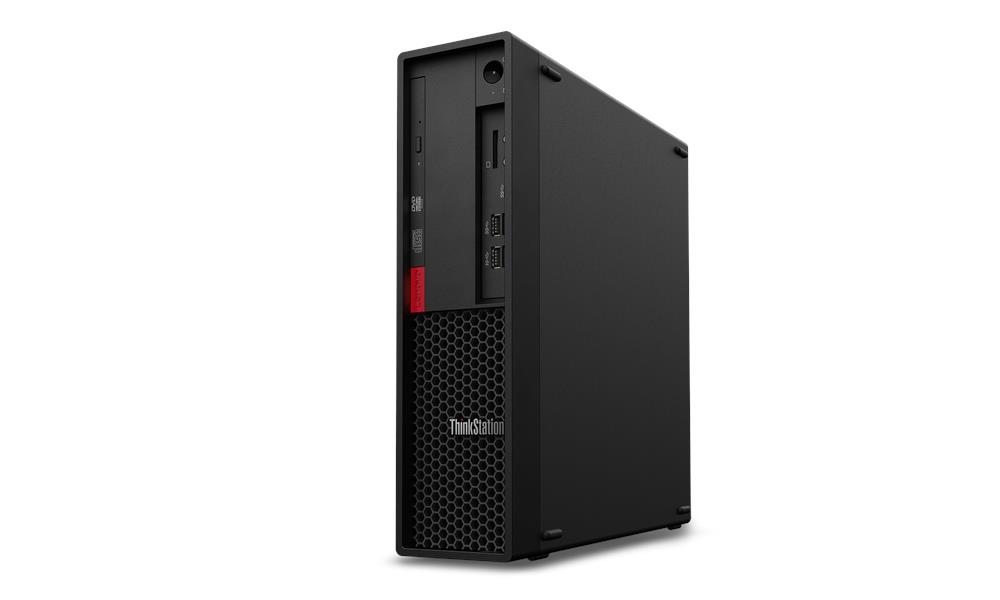

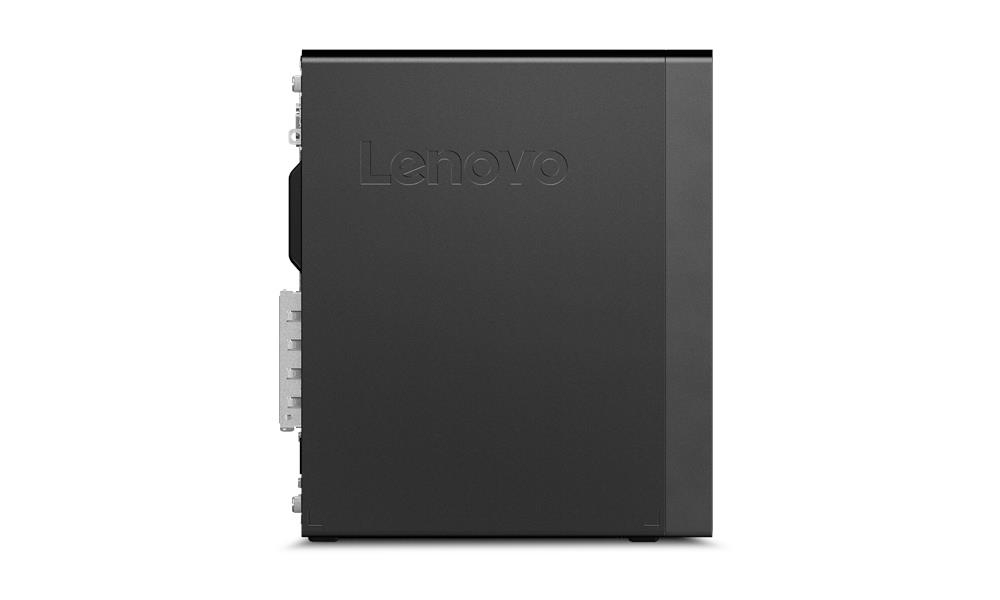

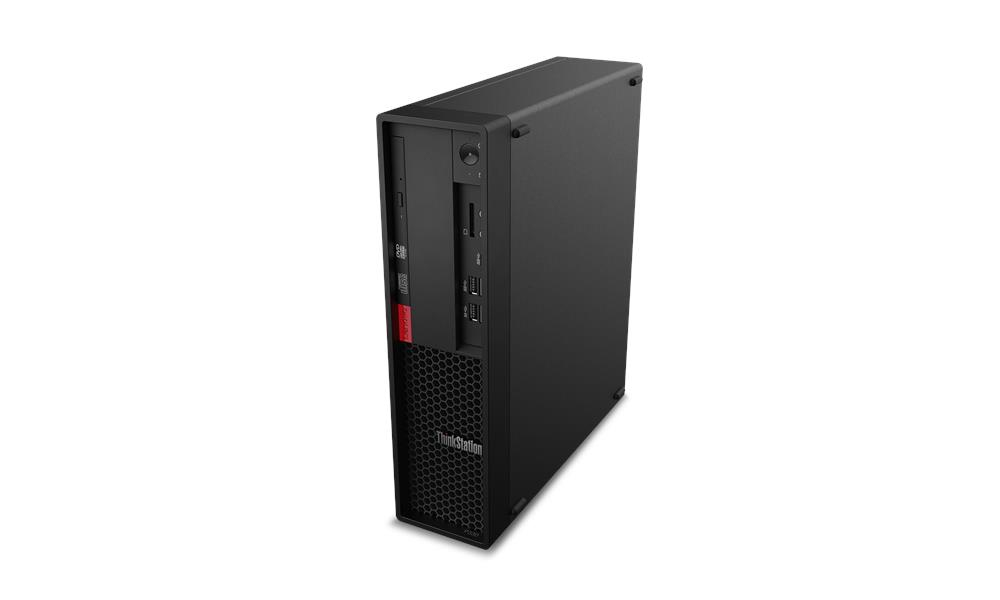

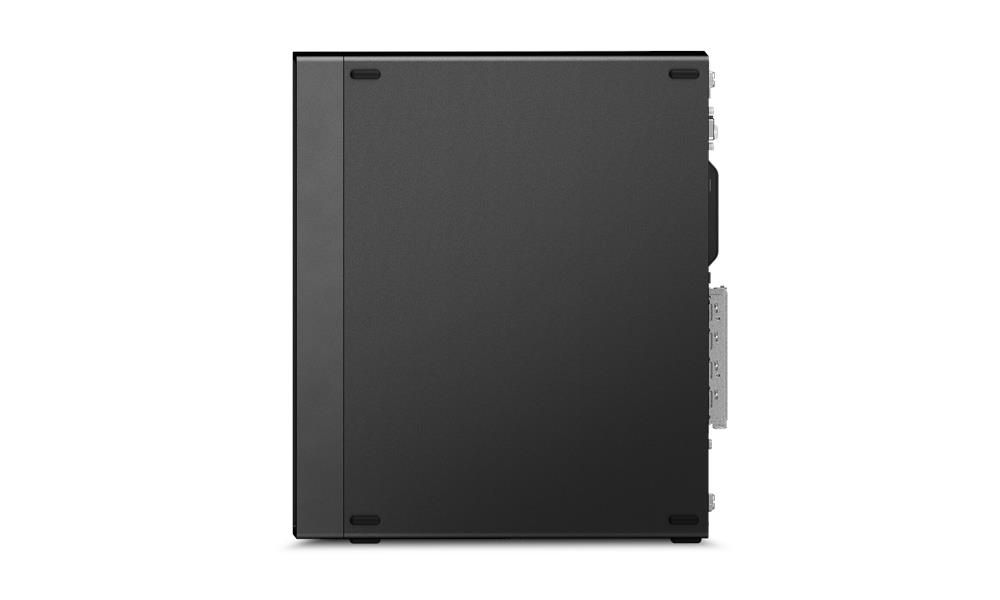

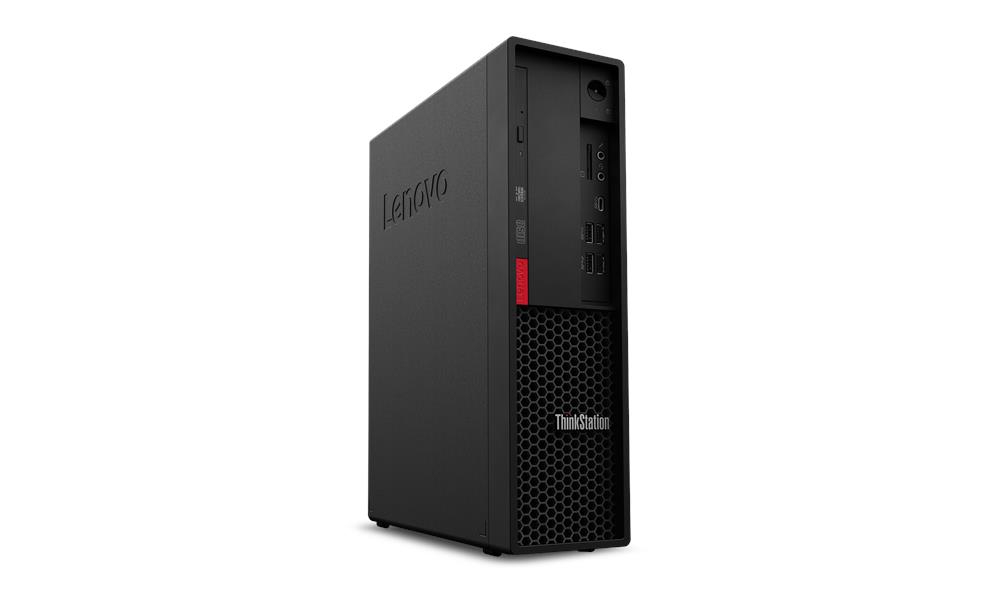

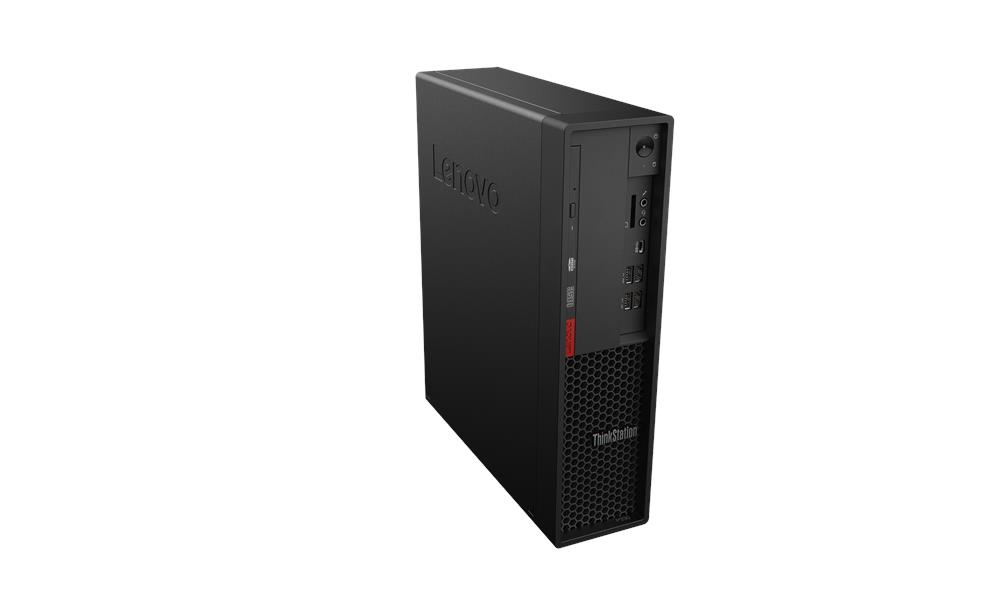

P330 SFF Gen 2
Model P330 SFF Gen 2Part no. 30D10024FREAN 193638445234
140 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypeWorkstation
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- Workstation
- OS
- Windows 10 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- P330 SFF Gen 2
- Part number
- 30D10024FR
- EAN / UPC
- 193638445234
- Also known as
- Lenovo ThinkStation P330 SFF Gen 2 Intel® Core™ i7 i7-9700 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Workstation Black
Specifications
140 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor model | i7-9700 |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 3 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 65 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2666 MHz |
| ECC | No |
| Memory channels | Quad-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E98 |
| On-board graphics card OpenGL version | 4.5 |
| Graphics card Open GL support | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel C246 |
| Password protection | Yes |
| Password protection type | Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | No |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 260 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Volume | 8.4 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Country of origin | France |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | French |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 191792 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC233 |
| Audio system | High Definition Audio |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 30 - 90% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.5 mm |
| Depth | 305.6 mm |
| Height | 343.5 mm |
| Weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
