P310 + Nvidia Quadro K620 2GB DDR3

Model P310 + Nvidia Quadro K620 2GB DDR3Part no. 30AV000RSP+4X60G69028

146 specifications

ProcessorIntel® Core™ i7
Memory4 GB
Storage256 GB
GraphicsNot available
TypeWorkstation
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 256 GB
Graphics: Not available
Type: Workstation
OS: Windows 7 Professional

Brand: Lenovo
Category: PCs/Workstations
Model: P310 + Nvidia Quadro K620 2GB DDR3
Part numbers: 30AV000RSP+4X60G69028, 30AT002GSP+4X60G69028, 30AT0025SP+4X60G69028, 30AT002ESP+4X60G69028
Also known as: Lenovo ThinkStation P310 + Nvidia Quadro K620 2GB DDR3 Intel® Core™ i7 i7-6700 4 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional SFF Workstation Black

Specifications

146 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700
Processor cores	4
Processor threads	8
Processor boost frequency	4 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	65 W
Tcase	71 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory clock speed	2133 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	DVD±RW
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	SATA III
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C236

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

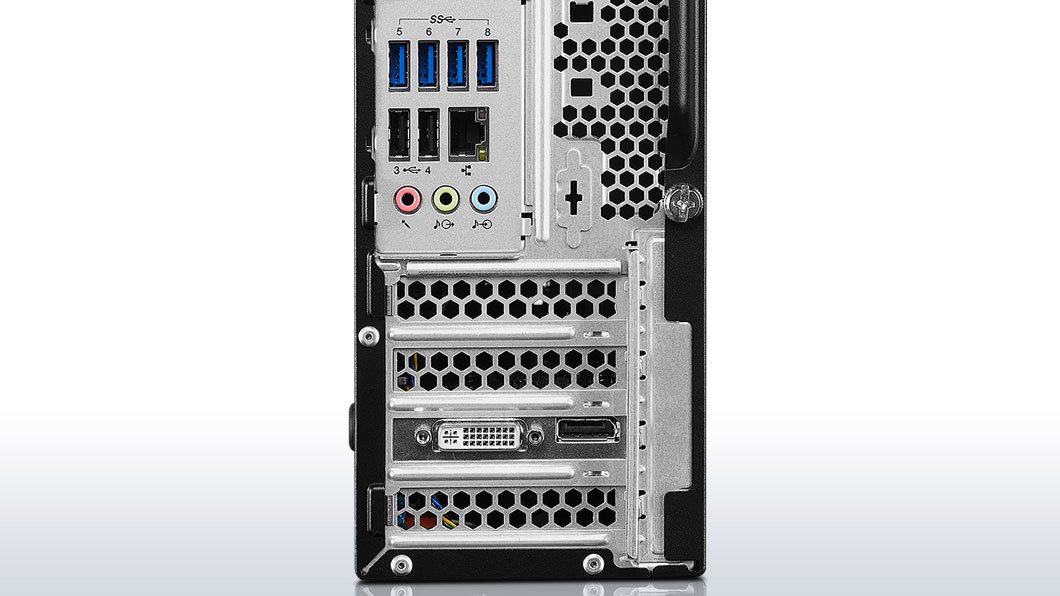

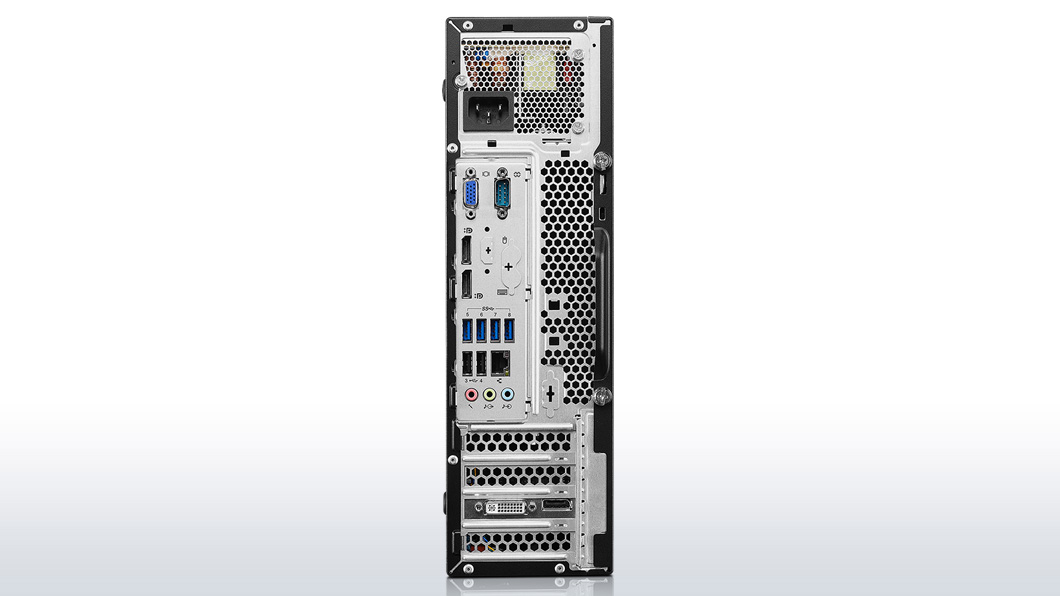

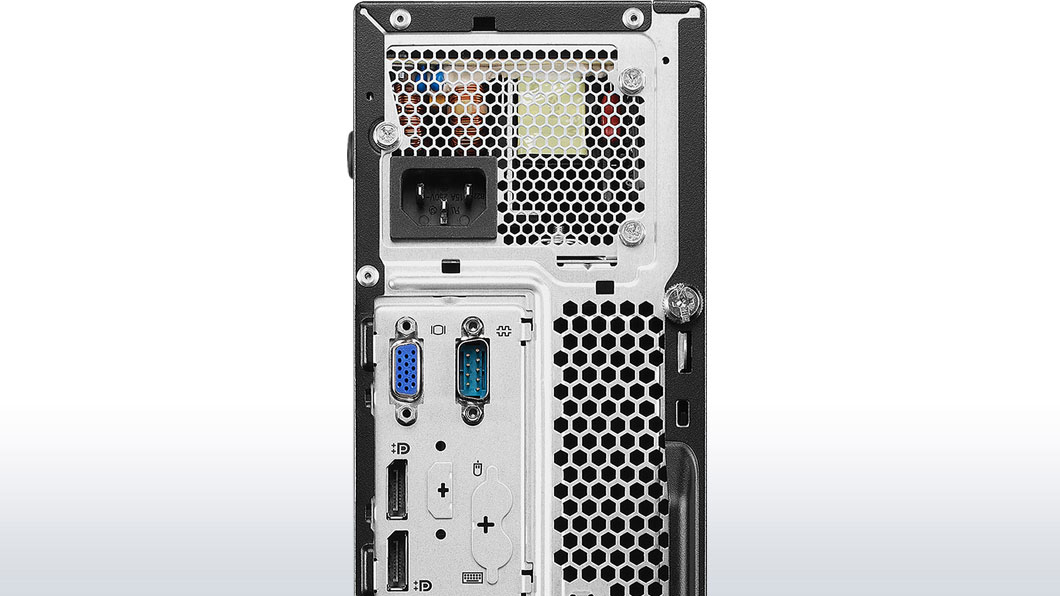

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	2

Power

Specification	Value
Power supply	210 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88196
Processor code	SR2BT
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
