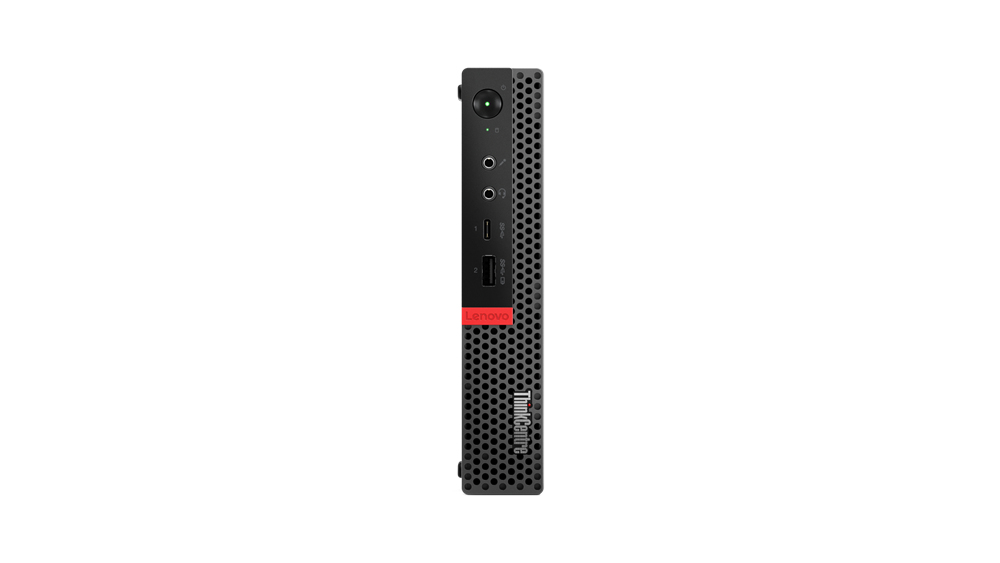

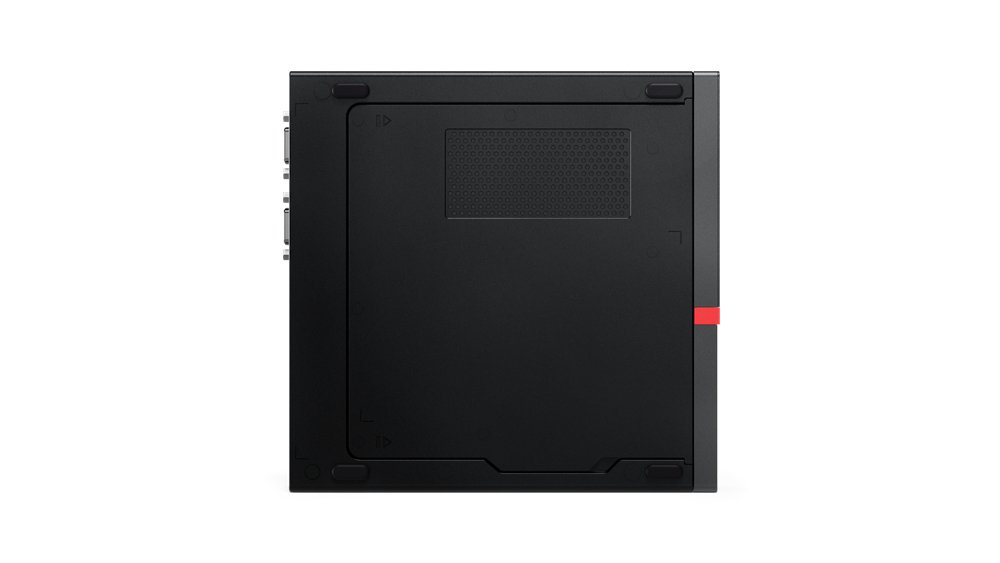

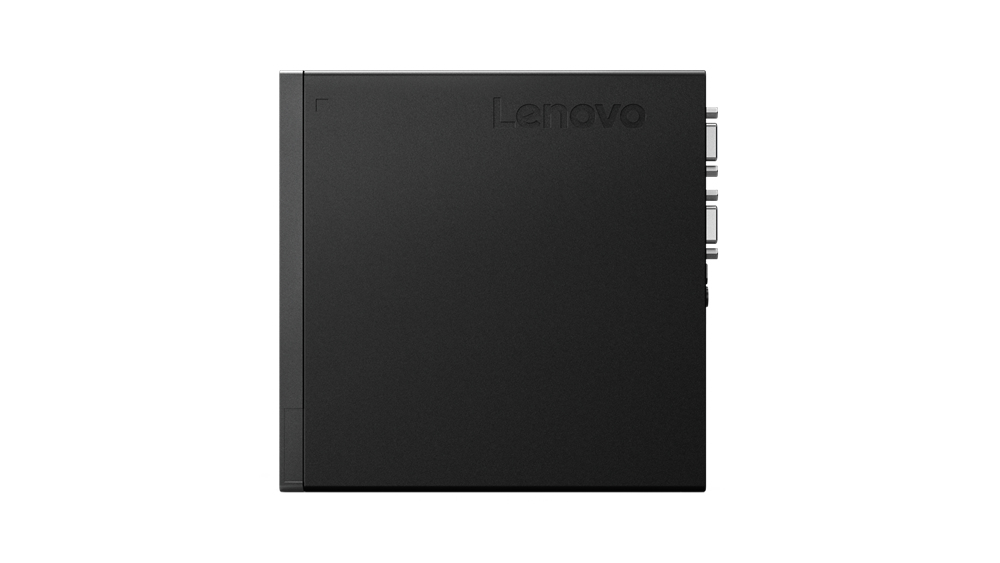

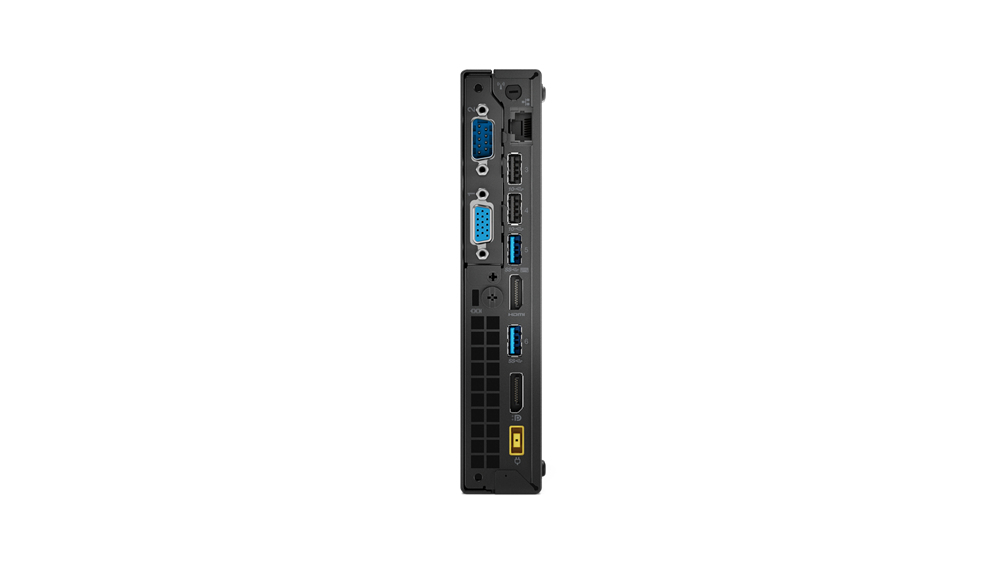

M920x Tiny
Model M920x TinyPart no. 10S10013FR
104 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M920x Tiny
- Part number
- 10S10013FR
- Also known as
- Lenovo ThinkCentre M920x Tiny Intel® Core™ i7 i7-8700 16 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Mini PC Black
Specifications
104 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 8th gen Intel® Core™ i7 |
| Processor model | i7-8700 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 12 MB |
| Bus type | DMI3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Business |
| Motherboard chipset | Intel Q370 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Serial ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 135 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 1 L |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Housing material | Metal |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | French |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC233VB2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 34.5 mm |
| Weight | 1.32 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Numeric keypad | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EPEAT™ Silver, ENERGY STAR® 8.0, ErP Lot 3, TCO Certified ,RoHS compliant, MIL-STD-810G military test passed |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver, ErP, TCO |
Keyboard
| Specification | Value |
|---|---|
| Keyboard layout | QWERTY |
