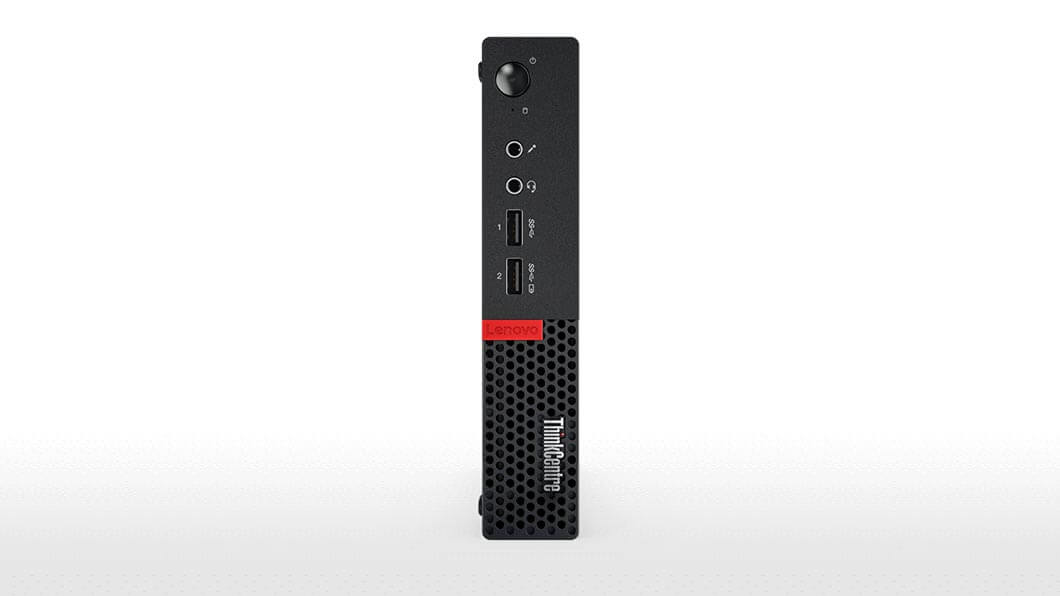

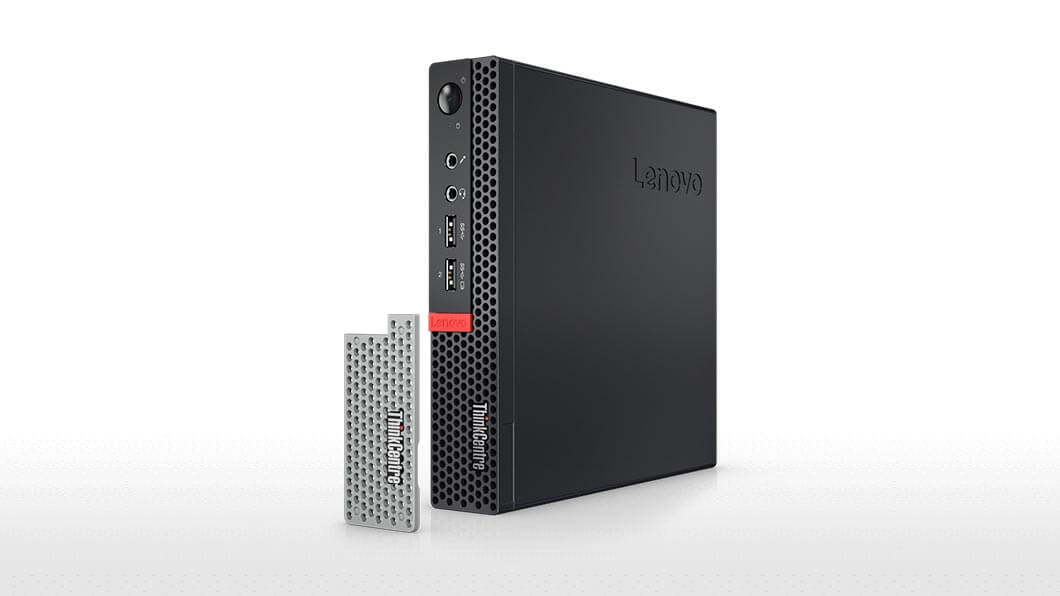

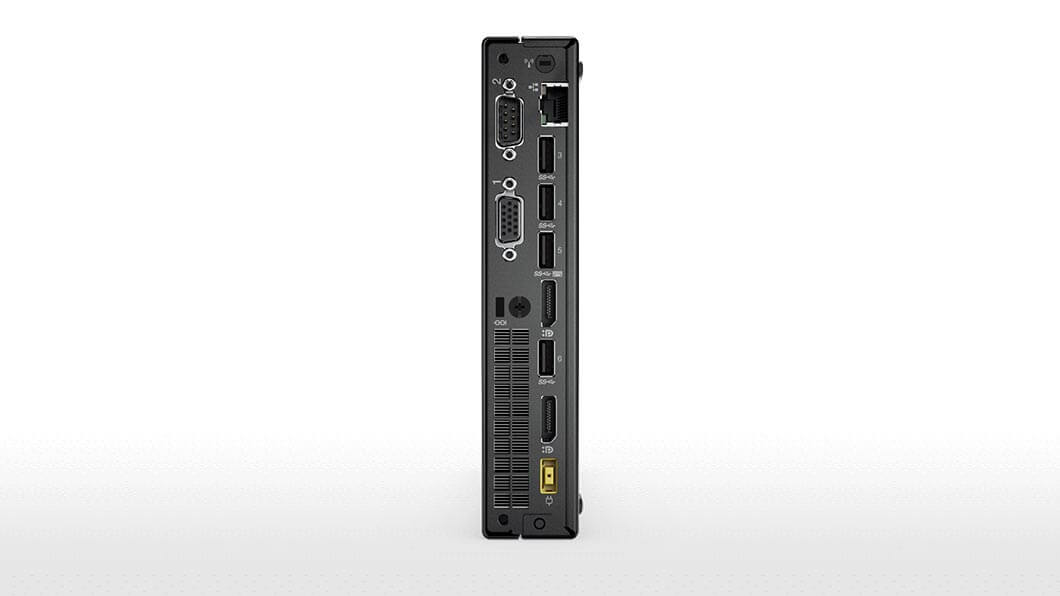

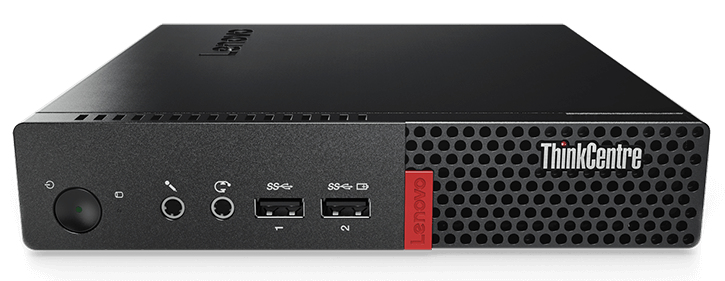

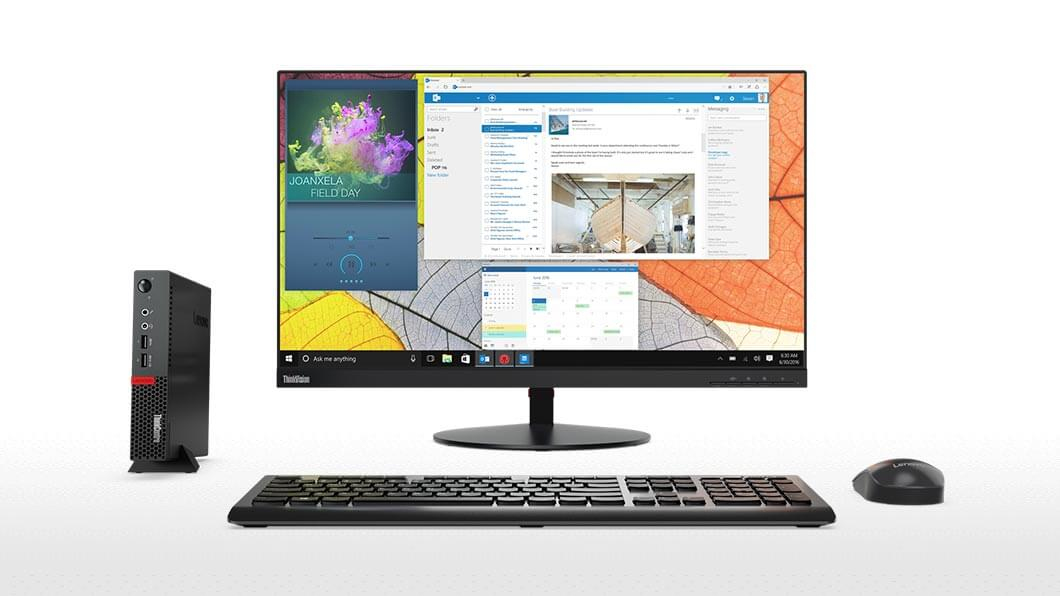

Lenovo M910q Tiny

Model M910q TinyPart no. 10MV0032USEAN 191376857975

120 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
SpeedWi-Fi 5 (802.11ac)
TypeMini PC
OSWindows 10

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC
OS: Windows 10

Brand: Lenovo
Category: PCs/Workstations
Model: M910q Tiny
Part numbers: 10MV0032US, 10MV0036US, 10MV0030US
EAN / UPC: 191376857975, 191376856565, 191376856251
Also known as: Lenovo ThinkCentre M910q Tiny Intel® Core™ i5 i5-6500T 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Mini PC Black

Specifications

120 specifications in 13 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6500T
Processor cores	4
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6500 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	35 W
Tcase	66 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory clock speed	2400 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	M.2

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card burst frequency	1100 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x1912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPorts quantity	3
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Mini PC
Volume	1 L
Placement supported	Horizontal/Vertical
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88183
Processor code	SR2BZ
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	34.5 mm
Depth	182.9 mm
Height	179 mm
Weight	1.32 kg
