M90s Gen 3
Model M90s Gen 3Part no. 11TX000CMZEAN 196379669945
104 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M90s Gen 3
- Part numbers
- 11TX000CMZ, 11TX0002UK-D/B, 11TX0001MZ, 11TX0005MZ, 11TX000TGE, 11TX000BMZ +7 more
- EAN / UPC
- 196379669945, 196379671405, 196801188211, 196379671665 +8 more
- Also known as
- Lenovo ThinkCentre M90s Gen 3 Intel® Core™ i5 i5-12500 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
Specifications
104 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12500 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3 GHz |
| Performance cores | 6 |
| Efficient cores | 0 |
| Performance-core base frequency | 3 GHz |
| Performance-core boost frequency | 4.6 GHz |
| Processor cache | 18 MB |
| Bus type | DMI4 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4400 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Q670 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

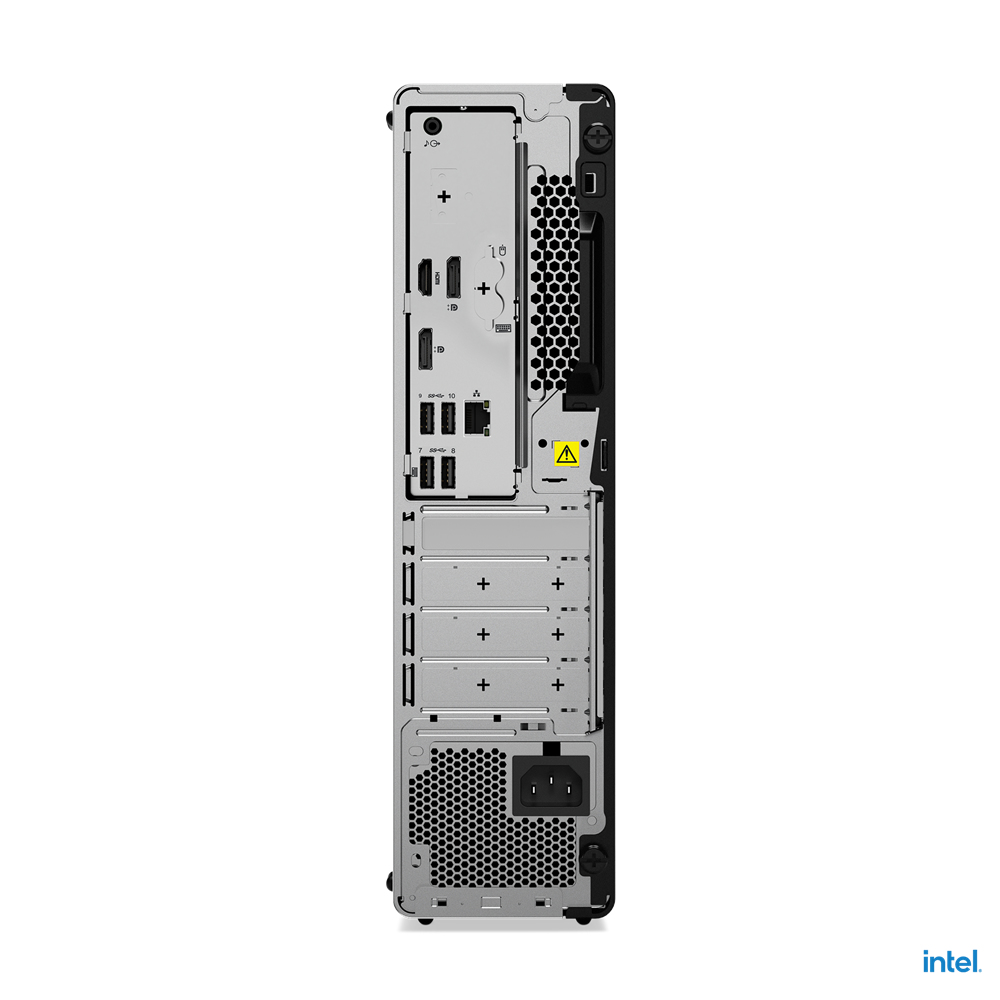

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 260 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Colour name | Black |
| Volume | 8.2 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897Q-CG |
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Height | 339.5 mm |
| Weight | 5.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ErP, TCO |
