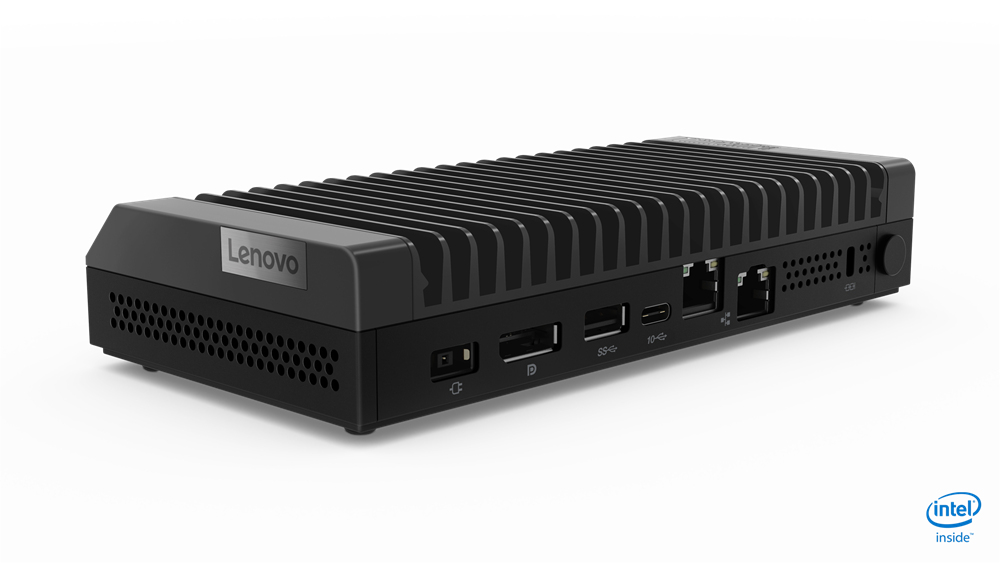

M90n-1 Nano IoT
Model M90n-1 Nano IoTPart no. 11AK0008USEAN 194778080699
120 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage128 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 128 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M90n-1 Nano IoT
- Part numbers
- 11AK0008US, 11AMS00100, 11AH001DGE, 11AH001DMX, 11AJS0WJ03, 11AH000VUS +34 more
- EAN / UPC
- 194778080699, 194778081252, 194778080811, 194778080613 +32 more
- Also known as
- Lenovo ThinkCentre M90n-1 Nano IoT Intel® Celeron® 4205U 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Pro Mini PC Black
Specifications
120 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 4205U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Whiskey Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1528 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133,1866 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 610 |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 900 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3EA1 |
| On-board graphics card OpenGL version | 4.5 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

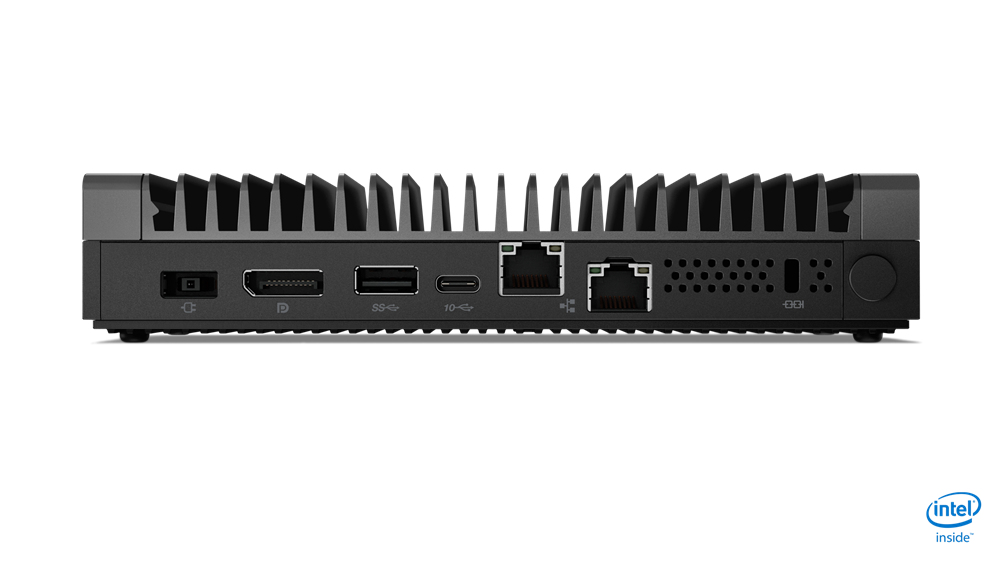

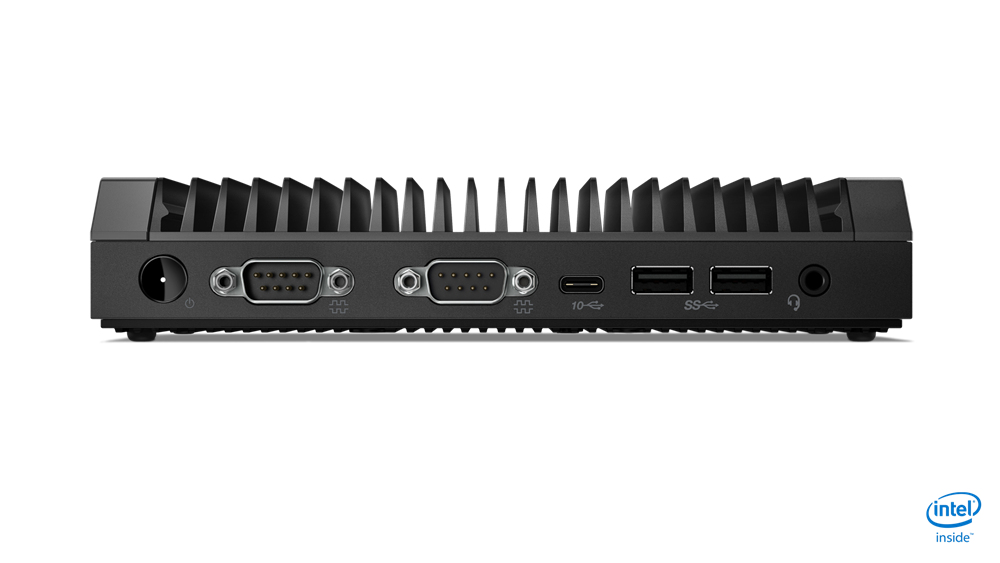

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | No |
| DVI port | No |
| Serial ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 0.55 L |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 189309 |
| Processor package size | 46x24 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC233VB |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 88 mm |
| Height | 34.5 mm |
| Weight | 720 g |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
