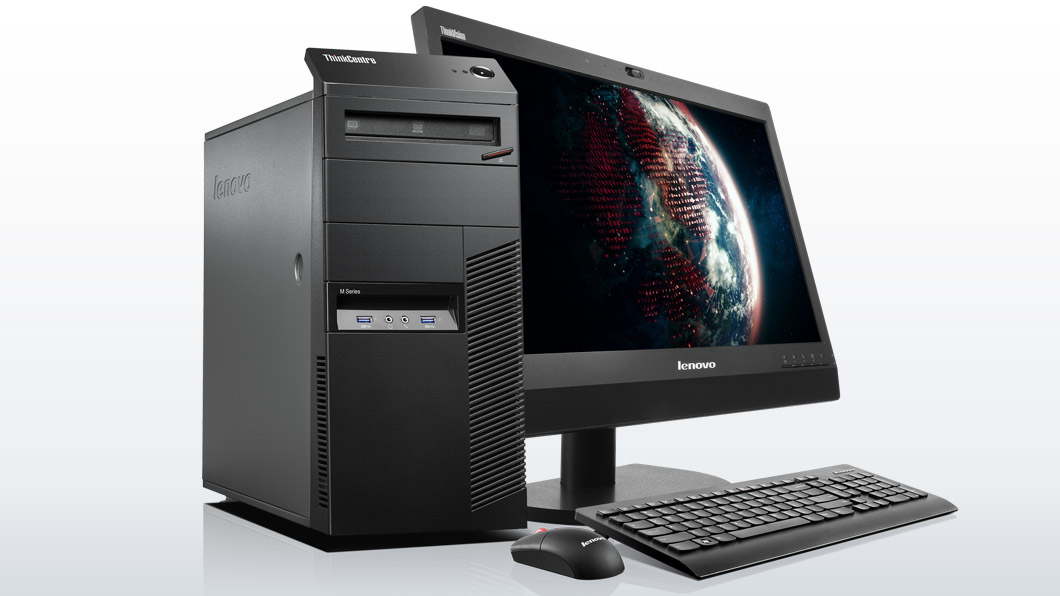

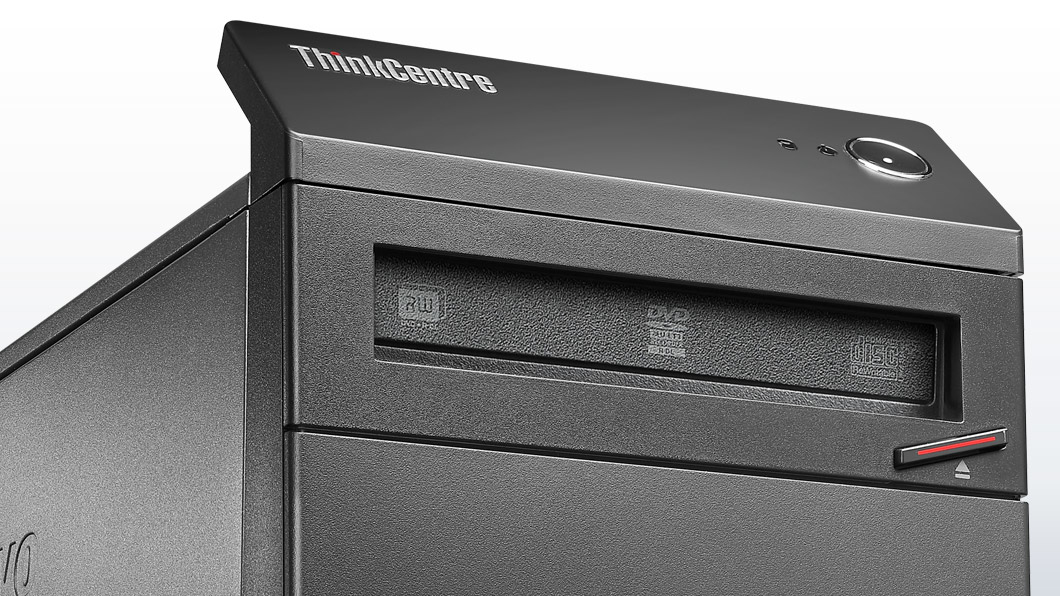

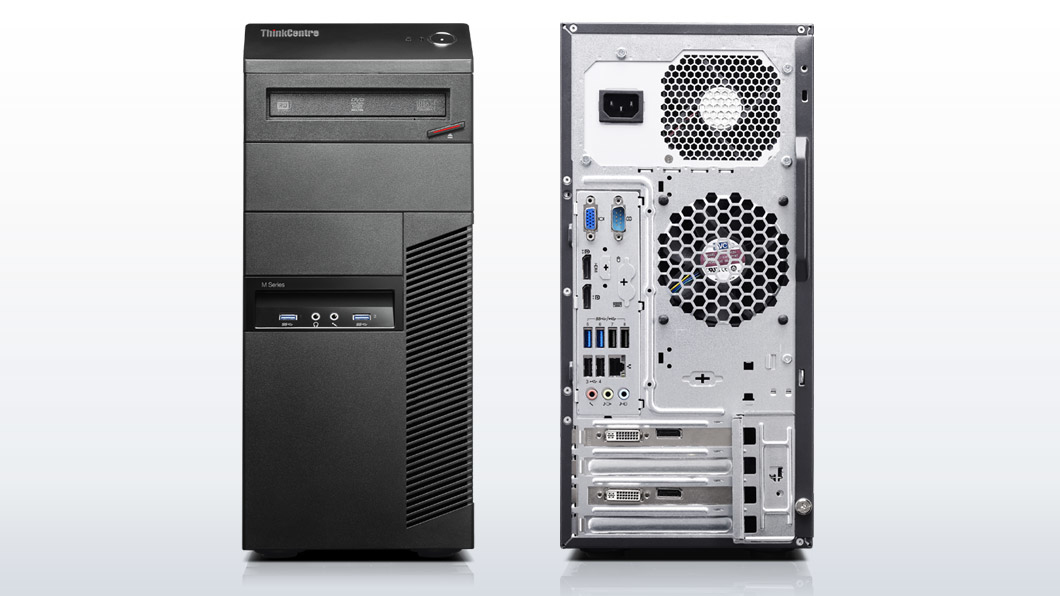

Lenovo ThinkCentre M83 Intel® Core™ i5 i5-4570

4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 8470 Windows 7 Professional Mini Tower PC Black

Model M83Part no. 10AG000RUKEAN 8879421041082

159 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage1 TB
GraphicsAMD Radeon HD 8470
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1 TB
Graphics: AMD Radeon HD 8470
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: Lenovo
Category: PCs/Workstations
Model: M83
Part numbers: 10AG000RUK, 10AG000PUS, 10AG000QUS, 10AG000RUS, 10AH0015US, 10AG000PUK +34 more
EAN / UPC: 8879421041082, 887942481575, 8879424815758, 887942481025 +56 more
Also known as: Lenovo ThinkCentre M83 Intel® Core™ i5 i5-4570 4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 8470 Windows 7 Professional Mini Tower PC Black

Specifications

159 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4570
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	3.2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	28 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4500 Desktop Series
Processor codename	Haswell
Thermal Design Power (TDP)	84 W
Tcase	72.72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD-ROM
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	AMD Radeon HD 8470
Discrete graphics card memory	0.512 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q85
Password protection	Yes
Password protection type	HDD, Power on, Supervisor

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

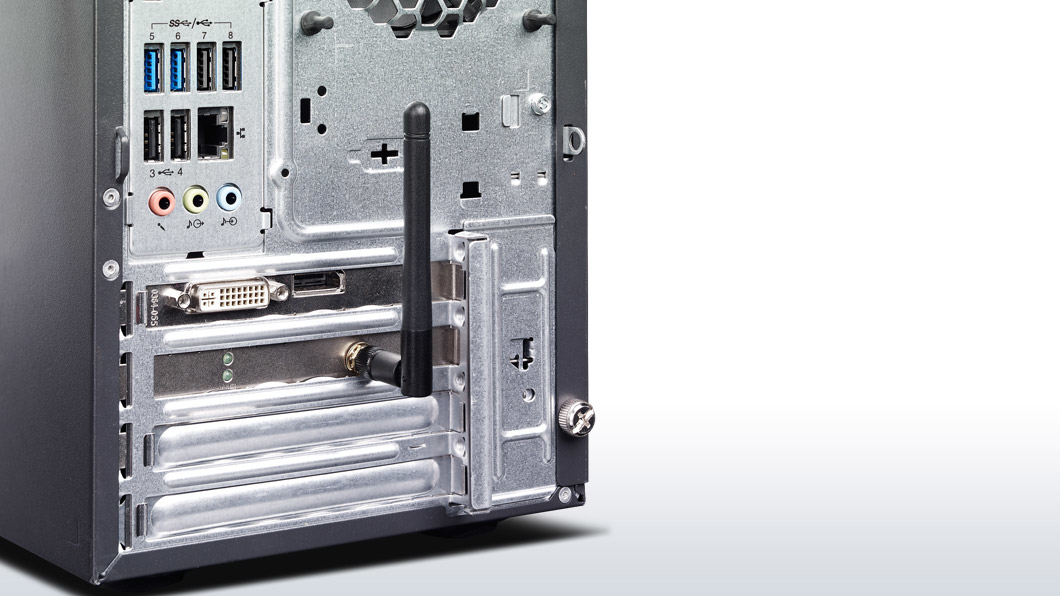

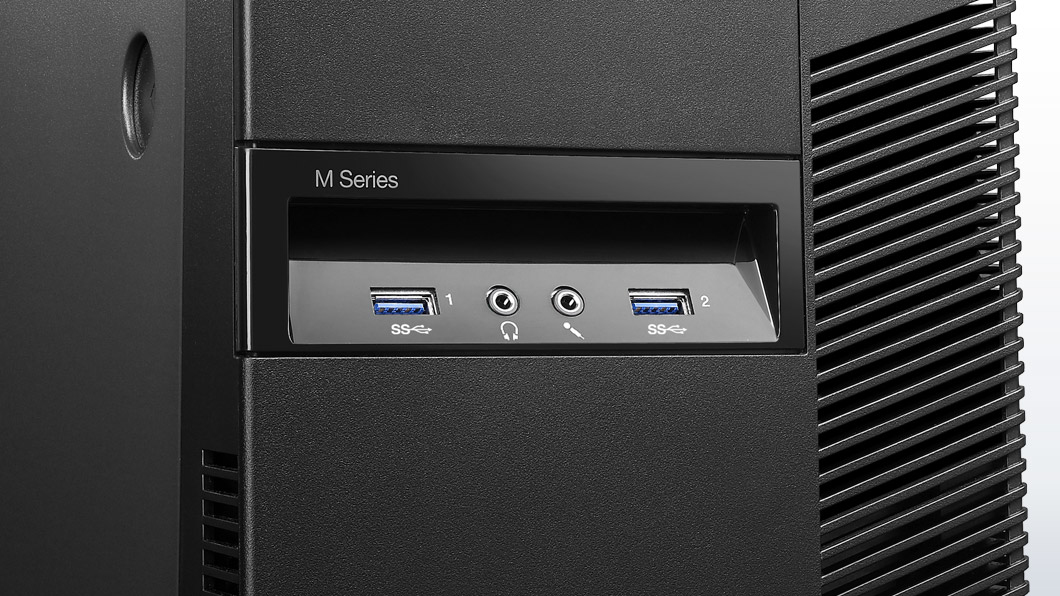

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	2
DVI port	No
PS/2 ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1

Power

Specification	Value
Power supply	280 W

Design

Specification	Value
Chassis type	Mini Tower
Placement supported	Vertical
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Trial software	Norton Internet Security, Microsoft Office
Bundled software	ThinkVantage Product Recovery ThinkVantage System Update ThinkVantage Communication Utility Desktop Power Manager View Management Utility Lenovo Cloud Storage Lenovo Solution Center Lenovo Message Center Plus Adobe Reader SkypeTM Cyberlink PowerDVD Cyberlink Power2Go Cyberlink PowerProducer Evernote

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75043
Processor code	SR14E
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	175 mm
Depth	442.3 mm
Height	414.5 mm
Weight	11.2 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ULE Gold Cisco EnergyWise GREENGUARD

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Intel segment tagging	Enterprise, Professional
