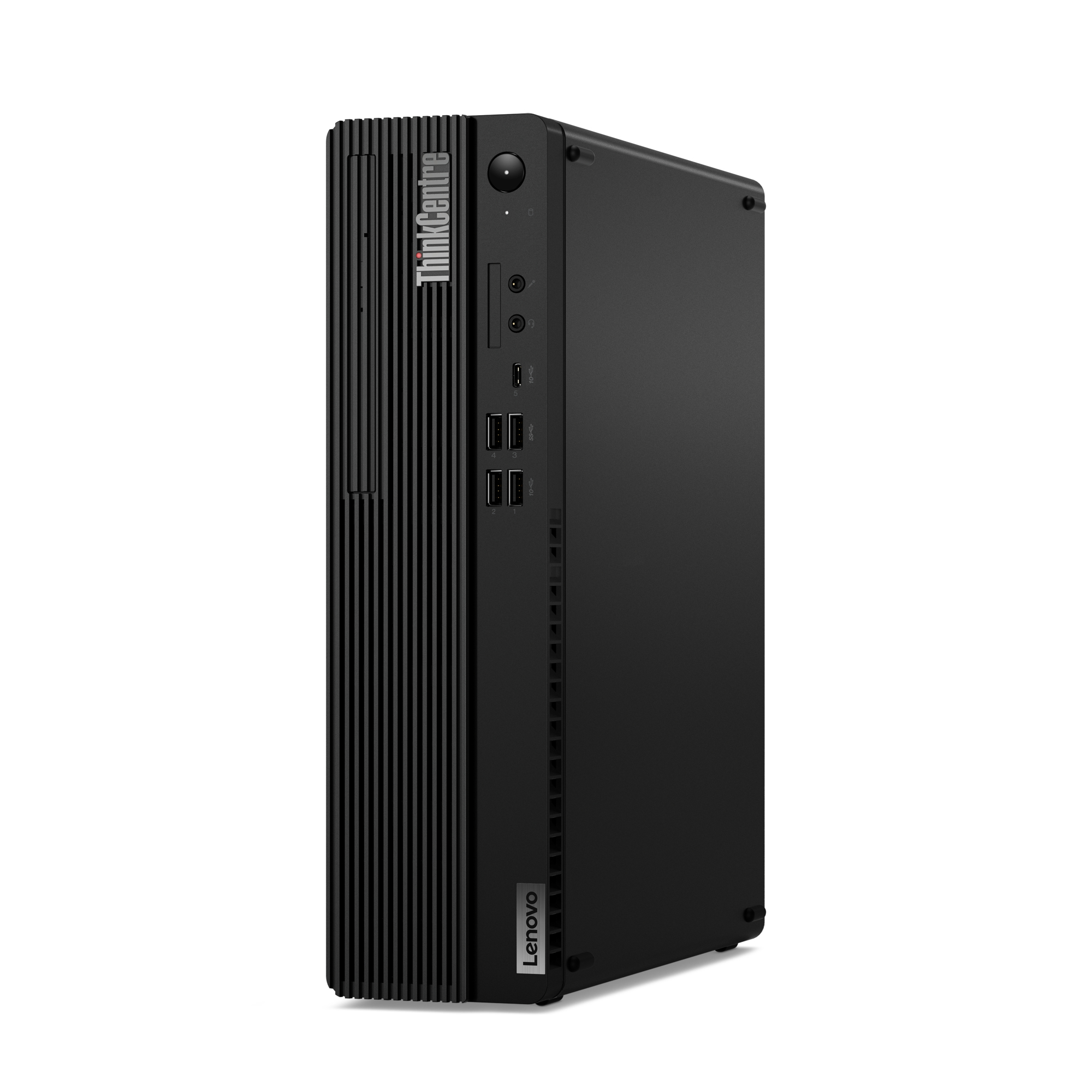

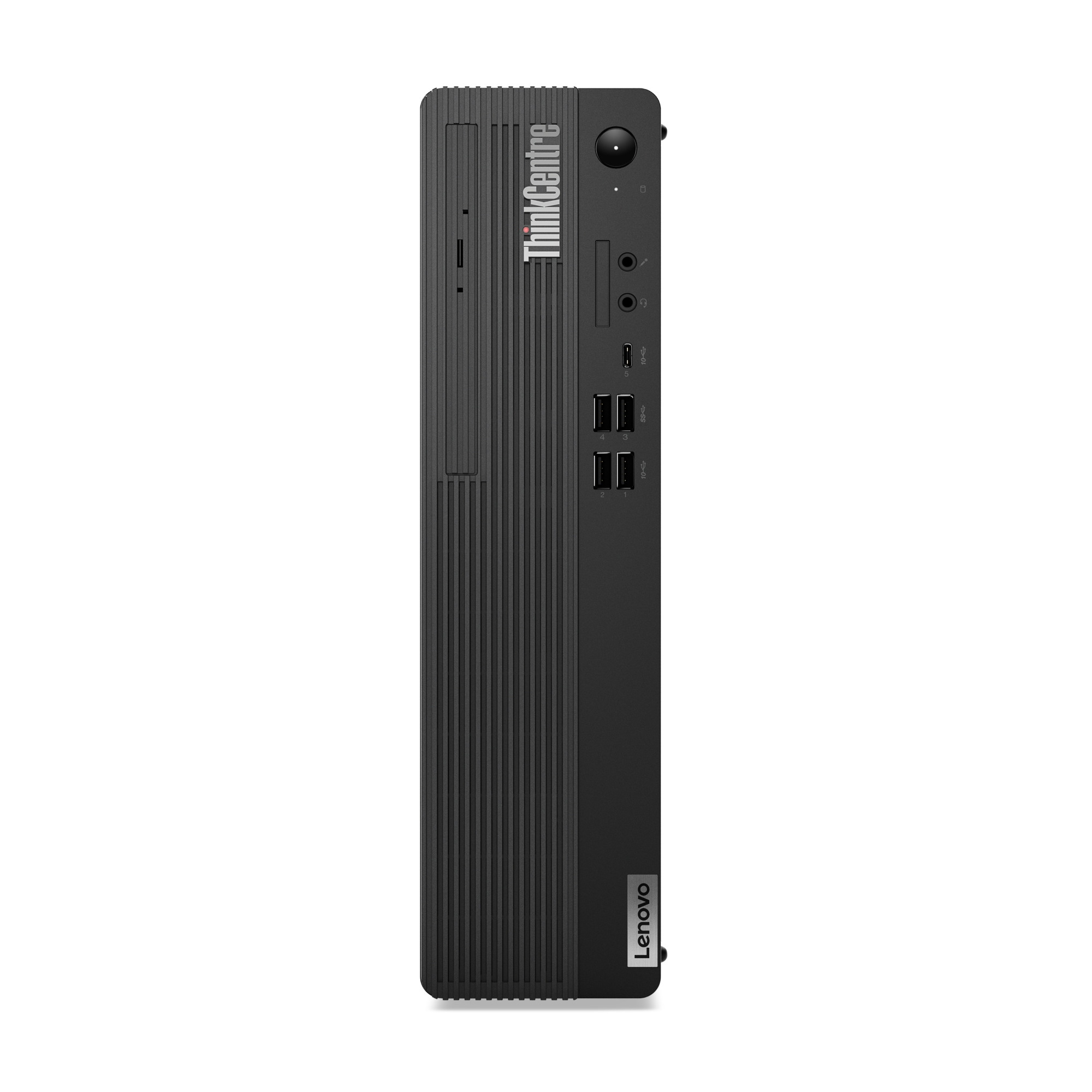

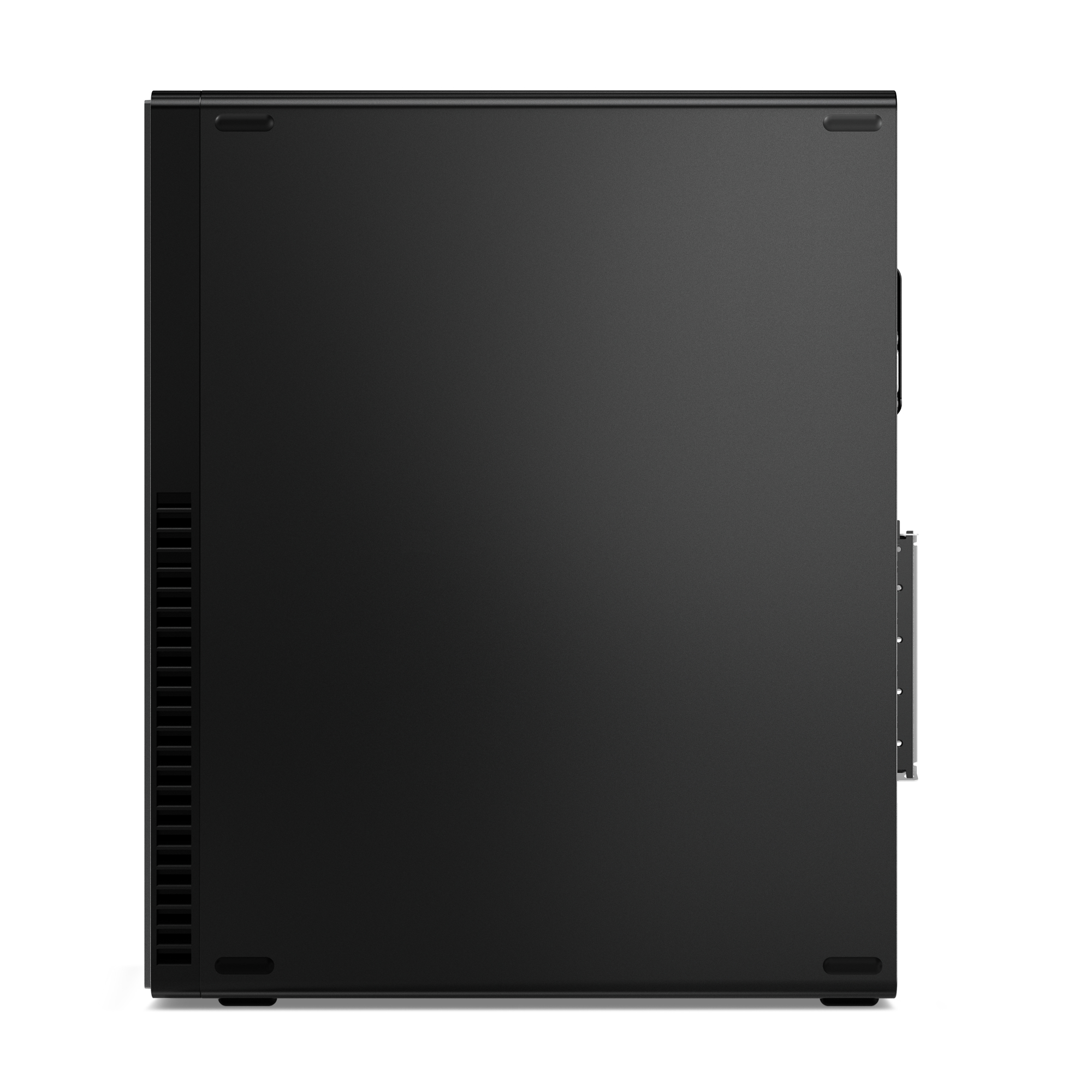

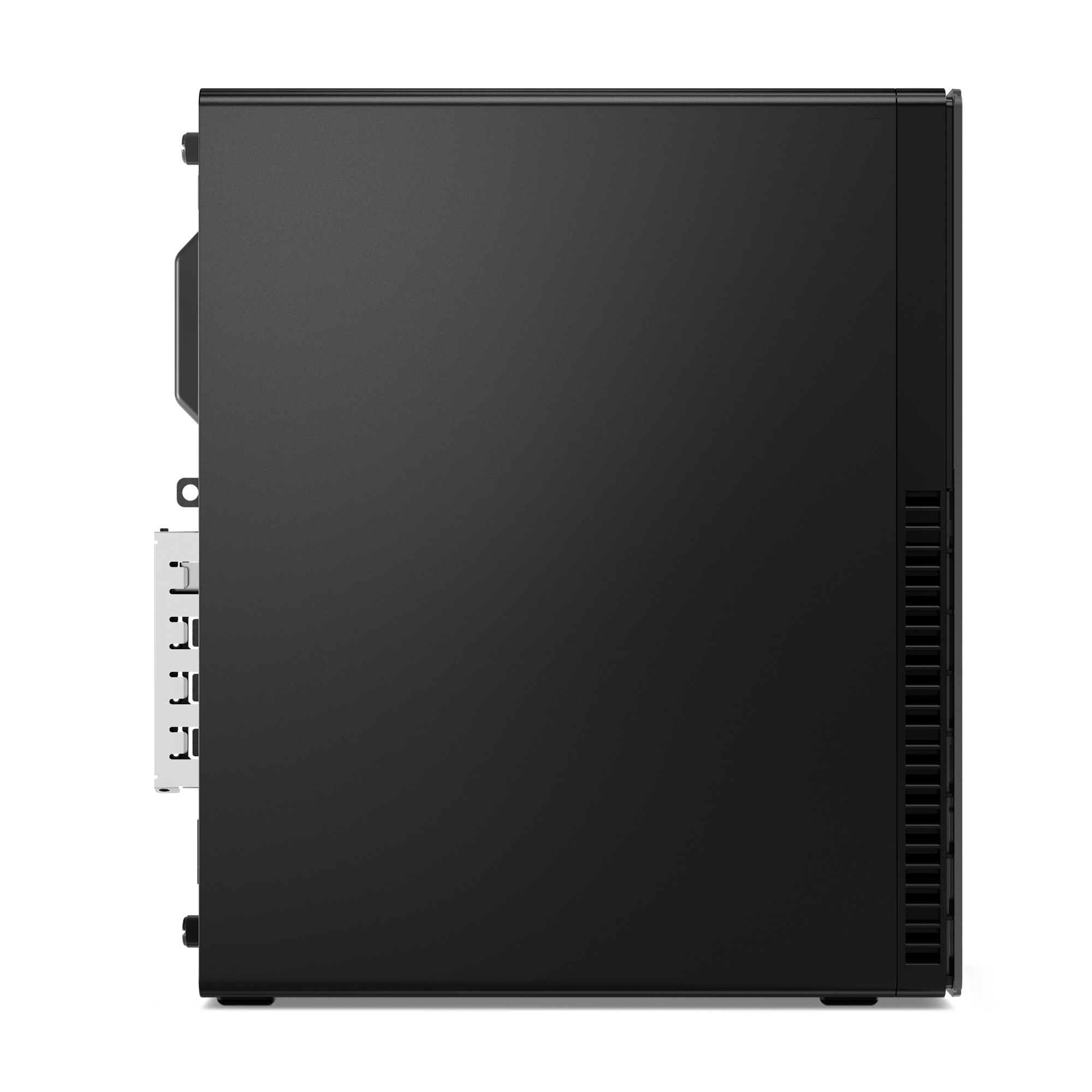

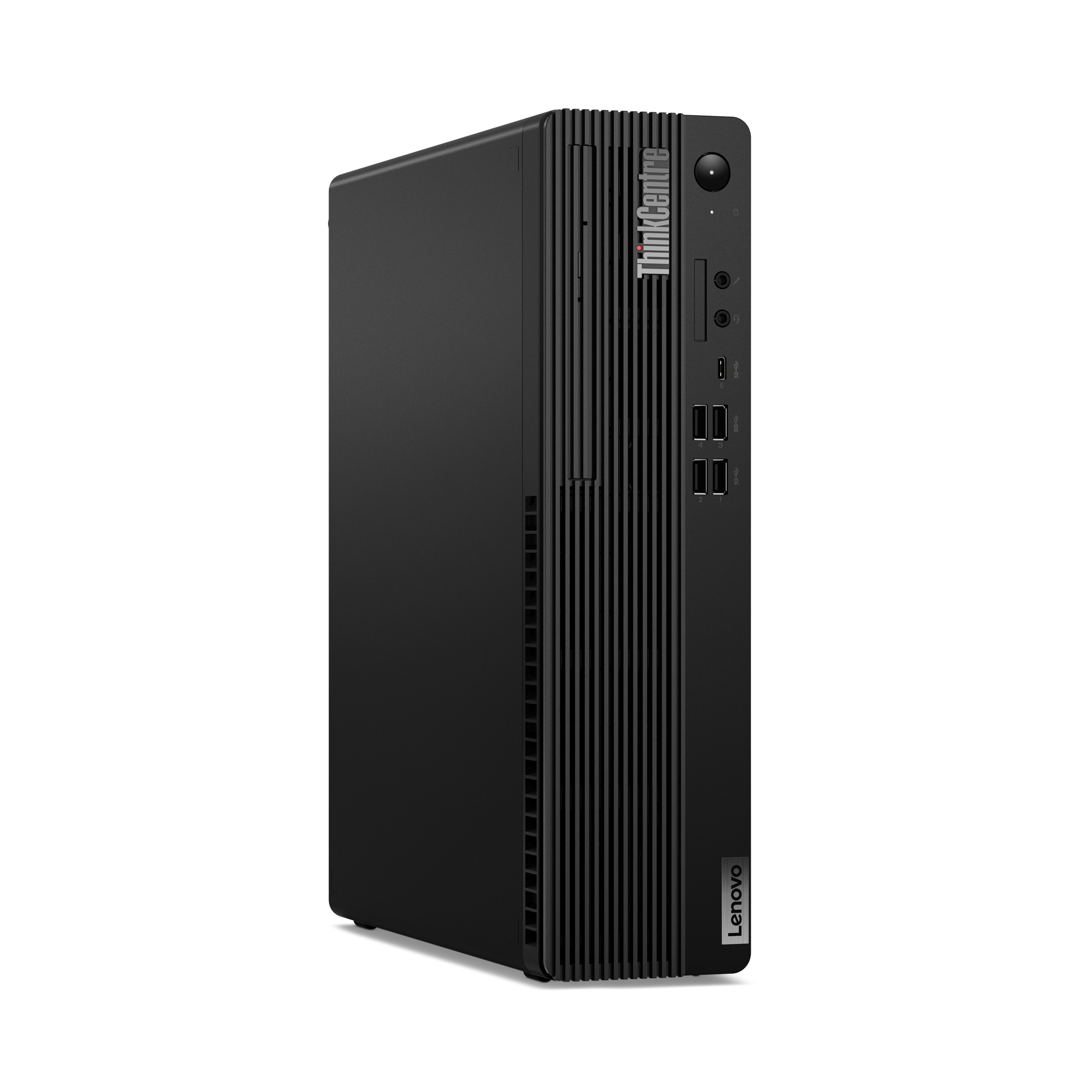

M80s Intel® Core™ i5 i5-12600
16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black
Model M80sPart no. 11CU001DCAEAN 195235852446
96 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage256 GB
- GraphicsNot available
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M80s
- Part numbers
- 11CU001DCA, 11TFS0BT00, 11CU000HUS, 11CU000DUS, 11CU000EUS, 11CU001CCA +34 more
- EAN / UPC
- 195235852446, 195042422108, 195042421811, 195042421736 +56 more
- Also known as
- Lenovo M80s Intel® Core™ i5 i5-12600 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black
Specifications
96 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i5 |
| Processor model | i5-12600 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 6 |
| Efficient cores | 0 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 3 GHz |
| Processor cache | 18 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Maximum turbo power | 117 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4400 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel Q670 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |

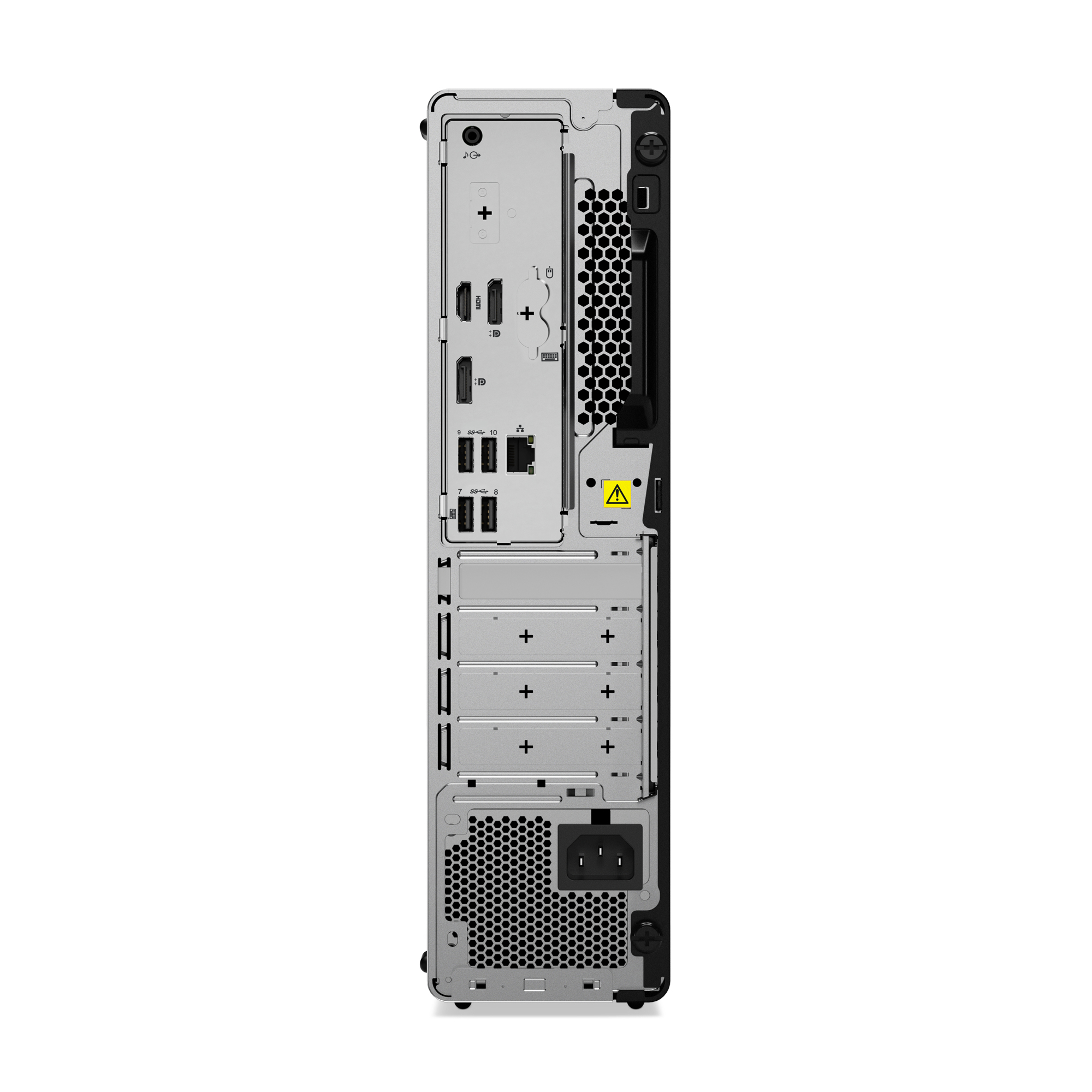

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Volume | 8.2 L |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Intel® vPro™ Platform Eligibility | Yes |
| Viewing window | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Optional operating system supplied | Windows 10 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
| Number of speakers | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92.5 mm |
| Depth | 297.7 mm |
| Height | 339.5 mm |
| Weight | 3.82 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 195 mm |
| Package depth | 395 mm |
| Package height | 530 mm |
| Package weight | 7.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP Lot 3, MIL-STD-810H |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | TCO |
