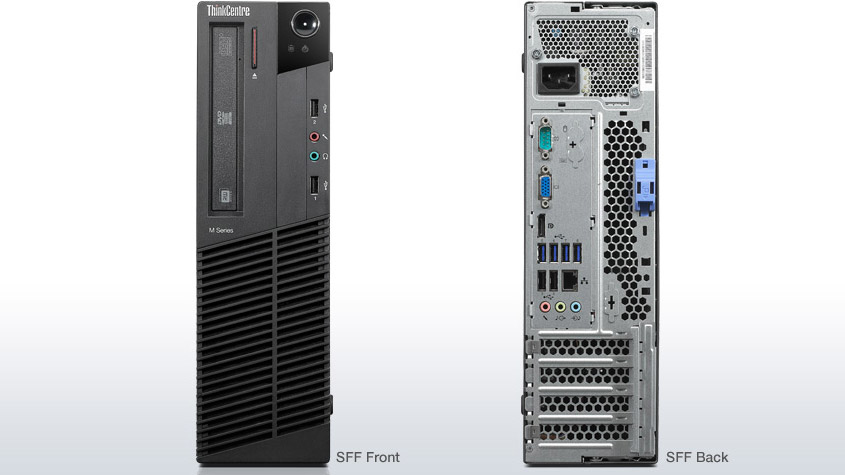

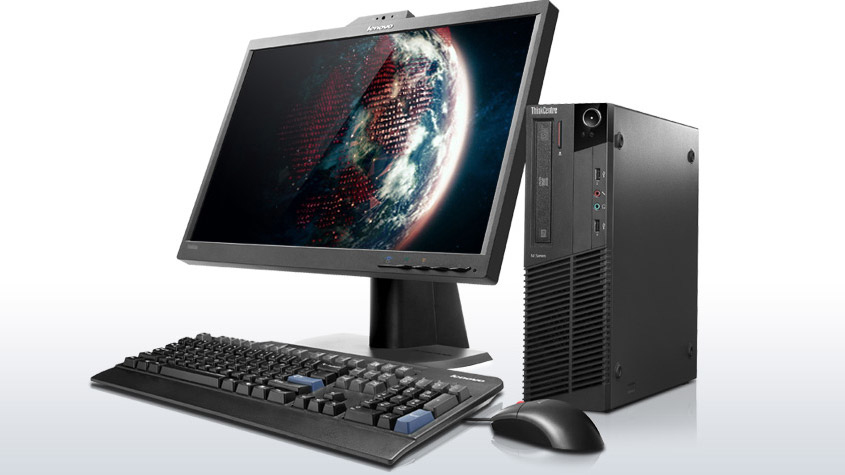

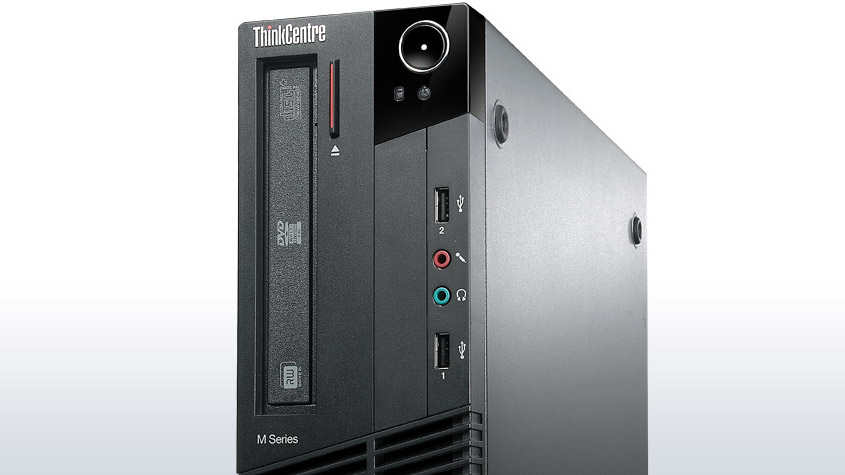

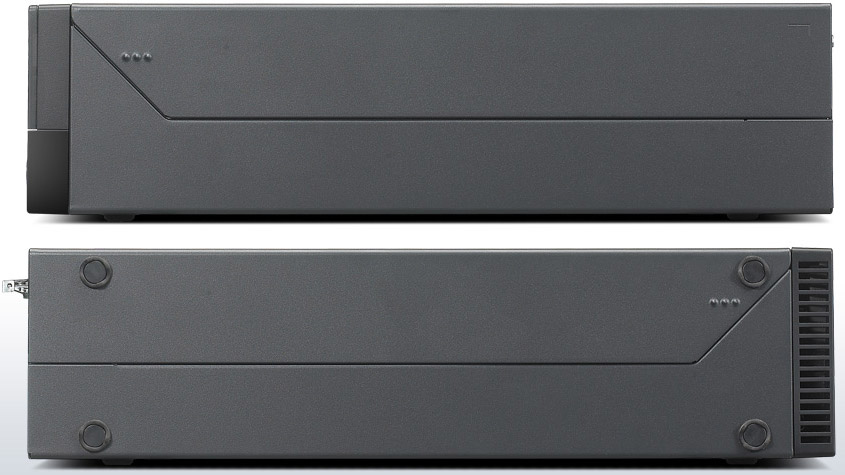

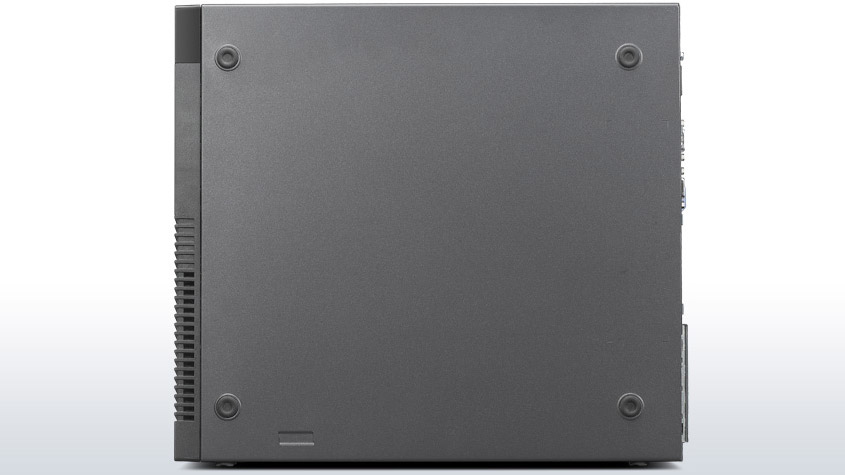

Lenovo M78 Small Form Factor

Model M78 Small Form FactorPart no. 10BU0000USEAN 8882285889882

87 specifications

ProcessorAMD A4
Memory4 GB
Storage500 GB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: AMD A4
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: Lenovo
Category: PCs/Workstations
Model: M78 Small Form Factor
Part numbers: 10BU0000US, 10BT0008US, 10BT0009US, 10BT000AUS, 10BT000BUS, 10BT000CUS +14 more
EAN / UPC: 8882285889882, 888228588919, 8882285889196, 888228588971 +18 more
Also known as: Lenovo ThinkCentre M78 Small Form Factor AMD A4 A4-6300B 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional SFF PC Black

Specifications

87 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD A4
Processor model	A4-6300B
Processor cores	2
Processor boost frequency	3.9 GHz
Processor frequency	3.7 GHz
Processor cache	1 MB
Processor cache type	L2
Number of processors installed	1
Processor socket	Socket FM2

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	AMD Radeon HD 8000
On-board graphics card model	AMD Radeon HD 8370D

Performance

Specification	Value
Product type	PC
Motherboard chipset	AMD A75

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 2.x) slots	1
PCI slots	2

Power

Specification	Value
Power supply	240 W

Design

Specification	Value
Chassis type	SFF
Placement supported	Vertical
Number of 5.25" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Trial software	Norton Internet Security, Microsoft Office
Bundled software	ThinkVantage Product Recovery ThinkVantage System Update ThinkVantage Communication Utility ThinkVantage Power Manager View Management Utility PC Device Stage Lenovo Cloud Storage Lenovo Solution Center Lenovo Message Center Plus Adobe Reader SkypeTM Evernote Cyberlink Power2Go Cyberlink PowerProduc

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	339 mm
Depth	381 mm
Height	100 mm
Weight	7.5 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS

Other features

Specification	Value
HDD user password	Yes
Intel segment tagging	Enterprise, Professional
