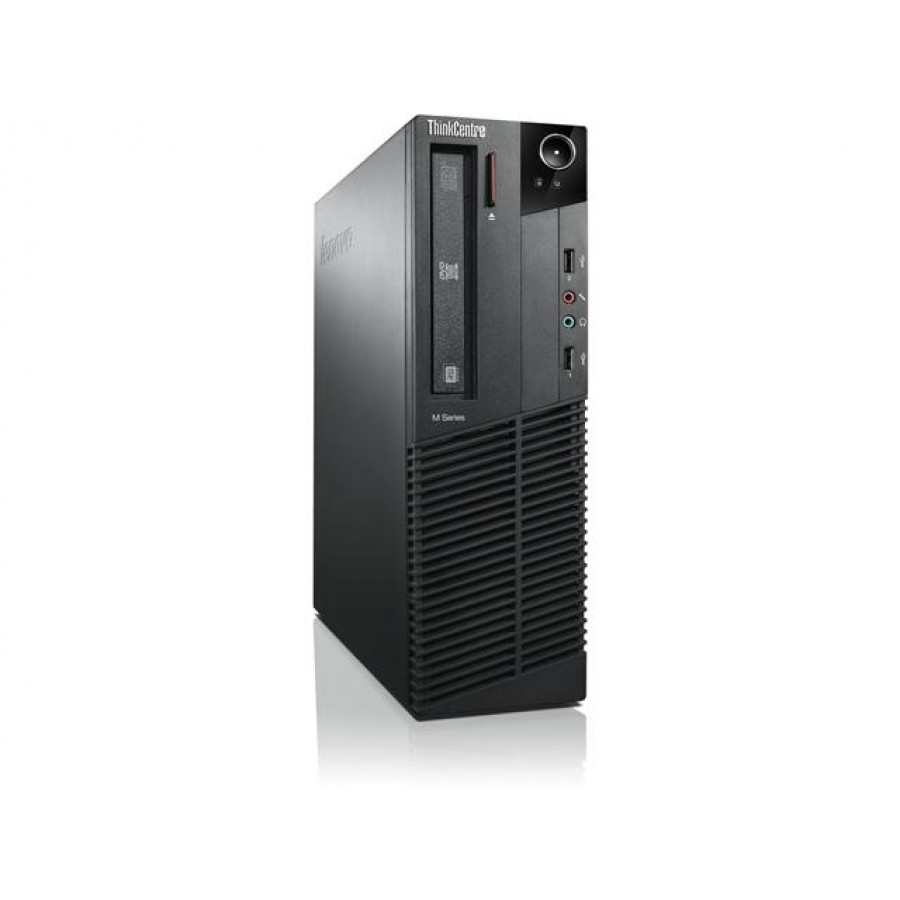

M73 Small Form Factor
Model M73 Small Form FactorPart no. 10B7001XUSEAN 888228206844
164 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage500 GB
- GraphicsNVIDIA® GeForce® GT 620
- SpeedWi-Fi 4 (802.11n)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- NVIDIA® GeForce® GT 620
- Speed
- Wi-Fi 4 (802.11n)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M73 Small Form Factor
- Part numbers
- 10B7001XUS, 10B4000XUS, 10B50001US, 10B6000BUS, 10B6000FUS, 10B6000GUS +7 more
- EAN / UPC
- 888228206844, 887942775063, 8879427750636, 887942775605 +15 more
- Also known as
- Lenovo ThinkCentre M73 Small Form Factor Intel® Core™ i7 i7-4770 8 GB DDR3-SDRAM 500 GB Hybrid-HDD NVIDIA® GeForce® GT 620 Windows 7 Professional SFF PC Black
Specifications
164 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 4th gen Intel® Core™ i7 |
| Processor model | i7-4770 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI2 |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-4700 Desktop series |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 72.72 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.5 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD±RW |
| Storage media | Hybrid-HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Hybrid-HDD cache type | Flash |
| Hybrid-HDD cache memory | 8 GB |
| HDD interface | SATA III |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 620 |
| Discrete graphics card memory | 1 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4600 |
| Maximum on-board graphics card memory | 2 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card DirectX version | 11.2/12 |
| On-board graphics card ID | 0x412 |
| On-board graphics card OpenGL version | 4.3 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H81 |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

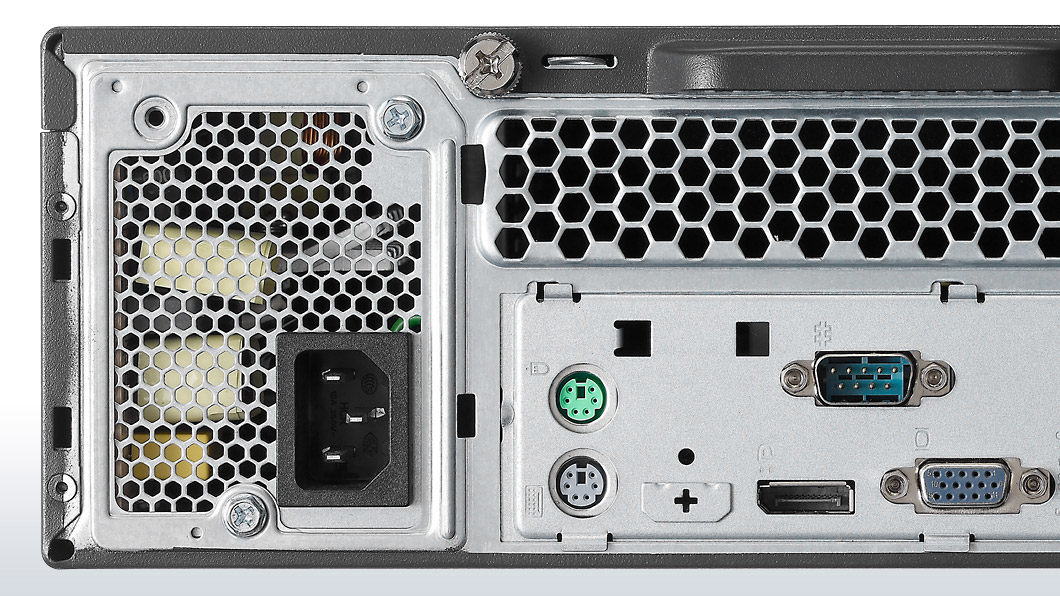

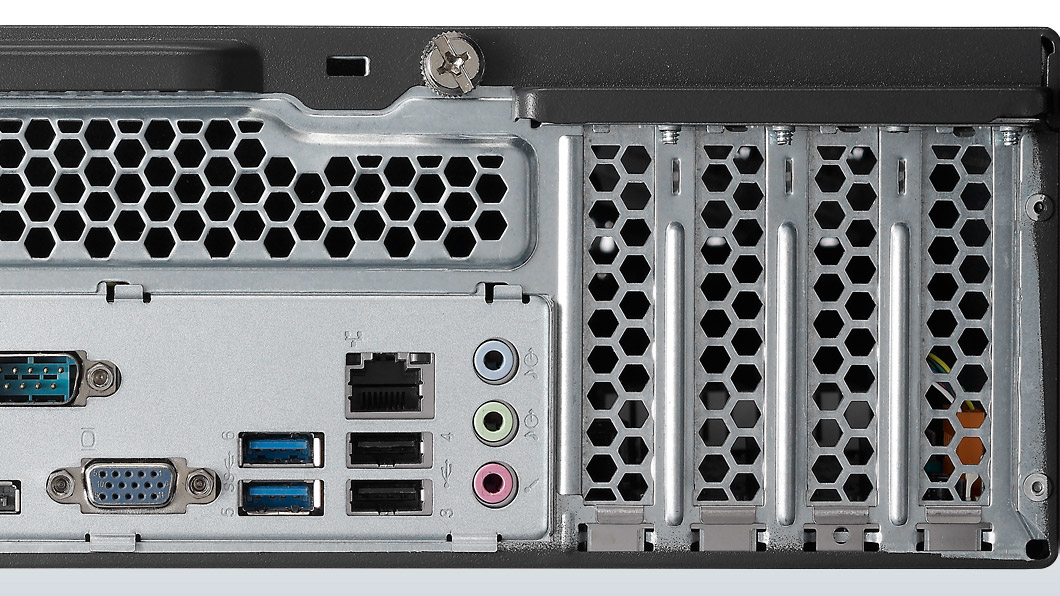

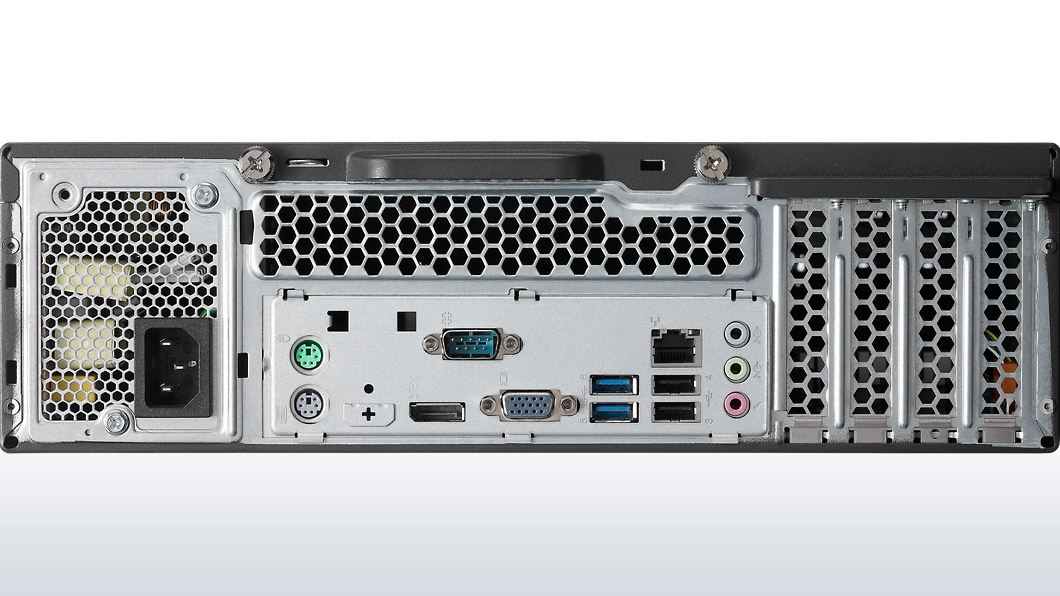

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 2 |
| DVI port | No |
| PS/2 ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 240 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Trial software | Norton Internet Security, Microsoft Office |
| Bundled software | ThinkVantage Product Recovery ThinkVantage System Update ThinkVantage Communication Utility ThinkVantage Power Manager View Management Utility PC Device Stage Lenovo Cloud Storage Lenovo Solution Center Lenovo Message Center Plus Adobe Reader SkypeTM Evernote Cyberlink Power2Go Cyberlink PowerProduc |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 75122 |
| Processor code | SR149 |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 382 mm |
| Height | 101 mm |
| Weight | 6.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Cables included | AC |
| Manual | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | Cisco EnergyWise GREENGUARD |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Enterprise, Professional |
