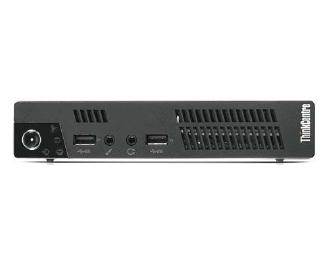

M72e Tiny

Model M72e TinyPart no. RC7C7MSEAN 887037060876

131 specifications

Overview

Brand: Lenovo
Category: PCs/Workstations
Model: M72e Tiny
Part numbers: RC7C7MS, RC7C7MF, RC7C7MD, RC9H5GE, RCAA1GE, RC5F9UK +34 more
EAN / UPC: 887037060876, 886843970652, 887619295894, 887619298161 +9 more
Also known as: Lenovo ThinkCentre M72e Tiny Intel® Core™ i5 i5-3570T 4 GB DDR3-SDRAM 320 GB HDD Windows 7 Professional USFF PC Black

131 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3570T
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.3 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3500 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	45 W
Tcase	69.8 °C
PCI Express configurations	2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	23
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3 1333/1600
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x152
Graphics card family	Intel

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61 Express

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
Power supply	65 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65521
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Thermal solution specification	2011B
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
