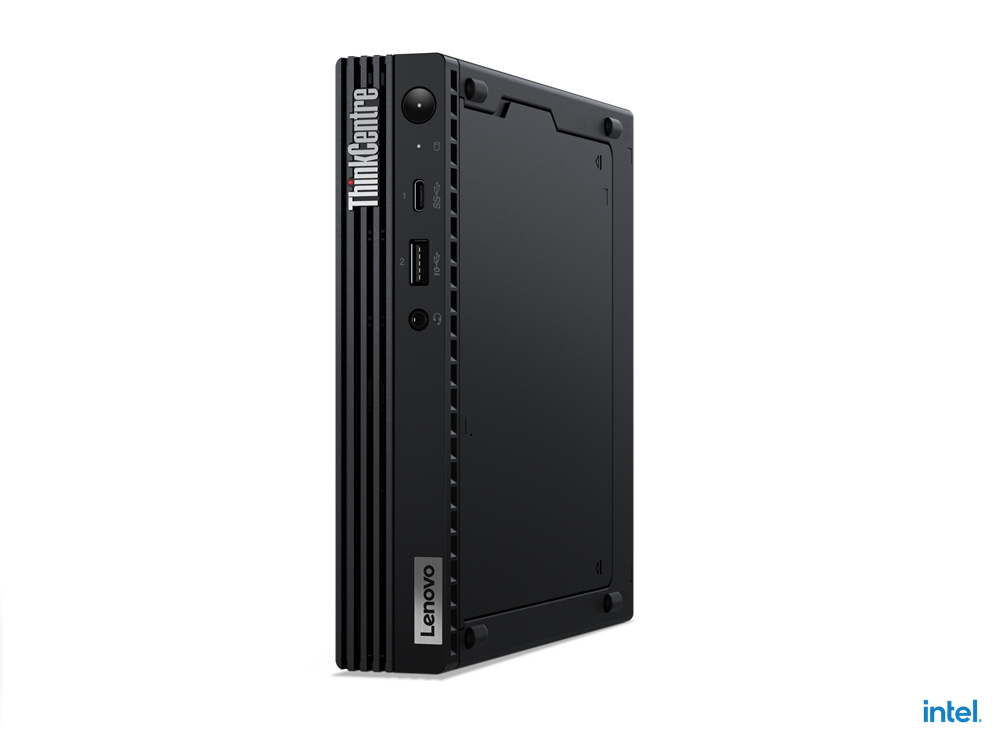

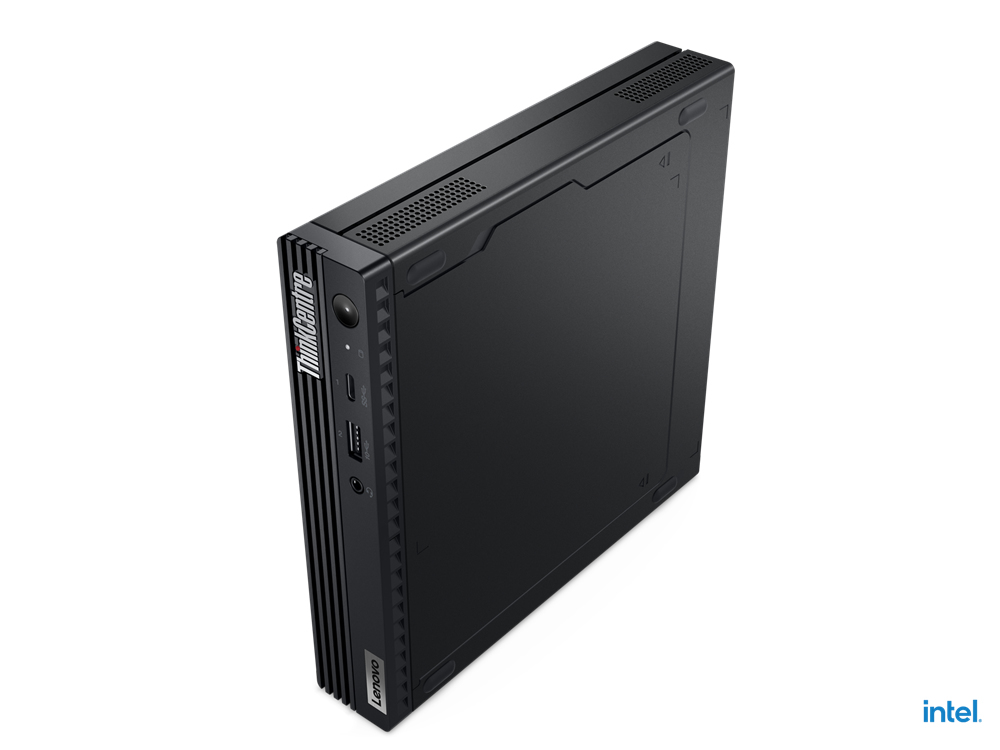

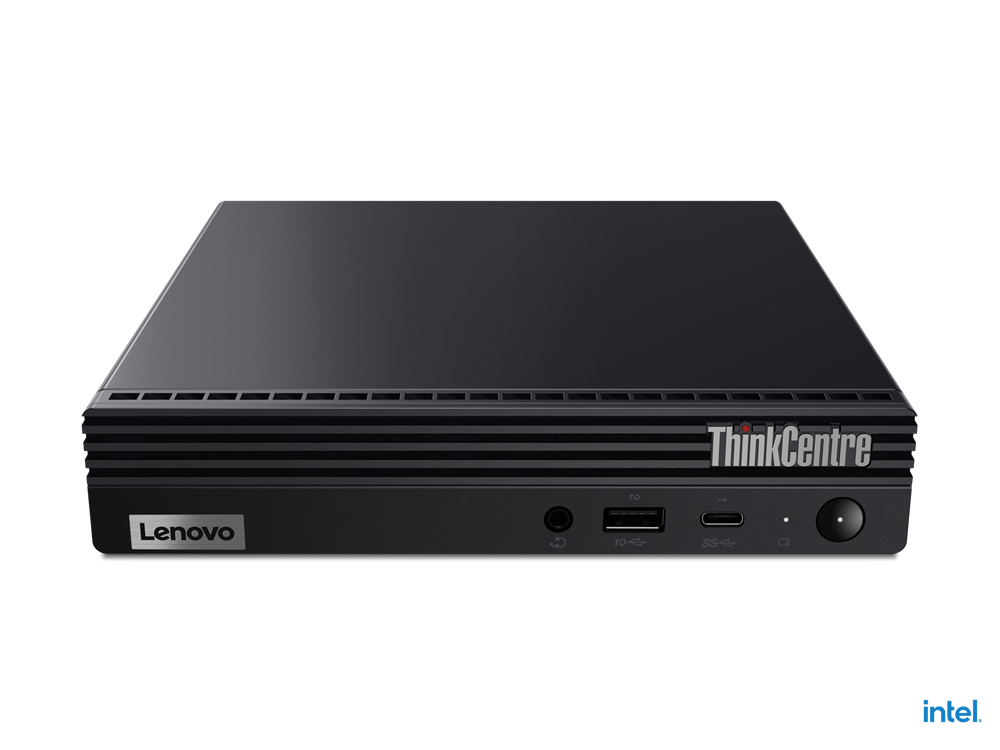

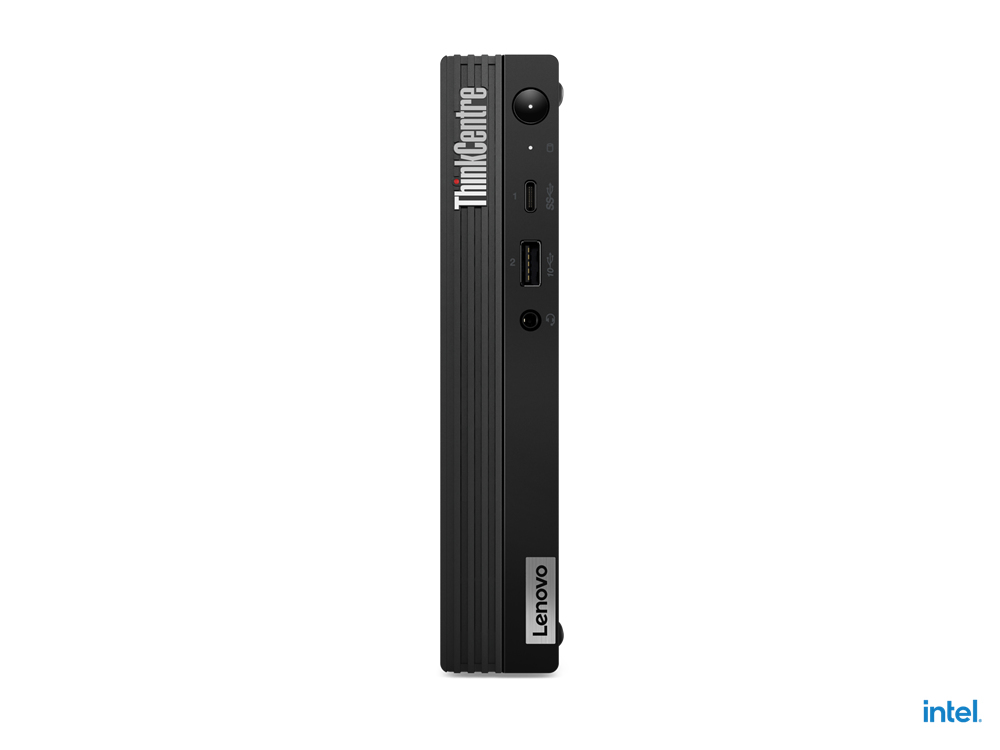

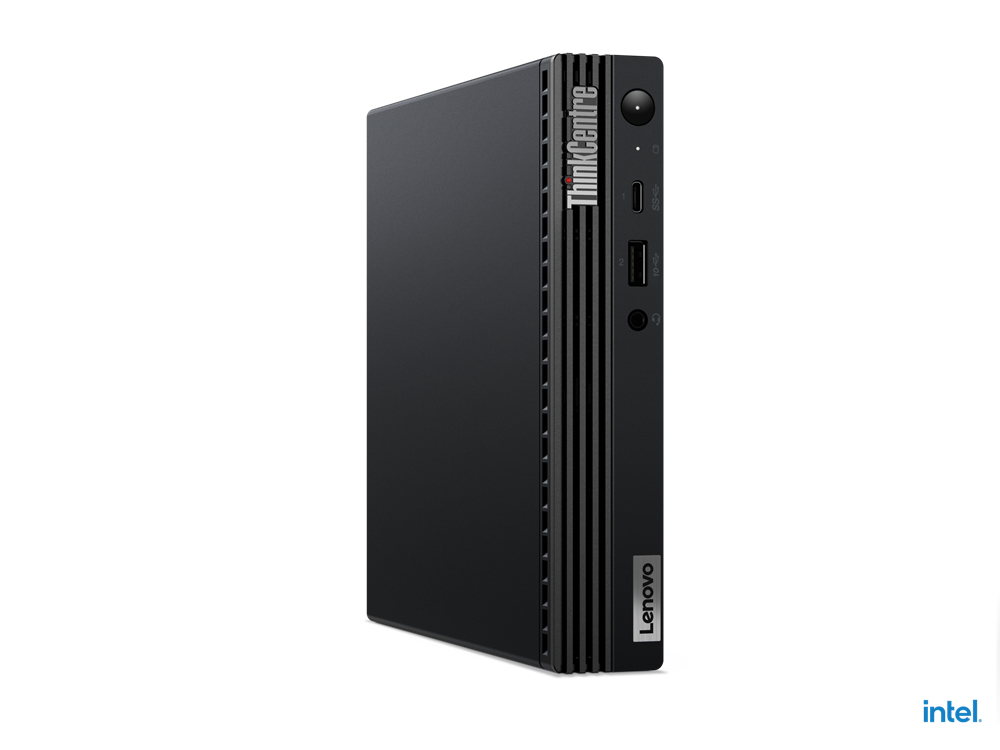

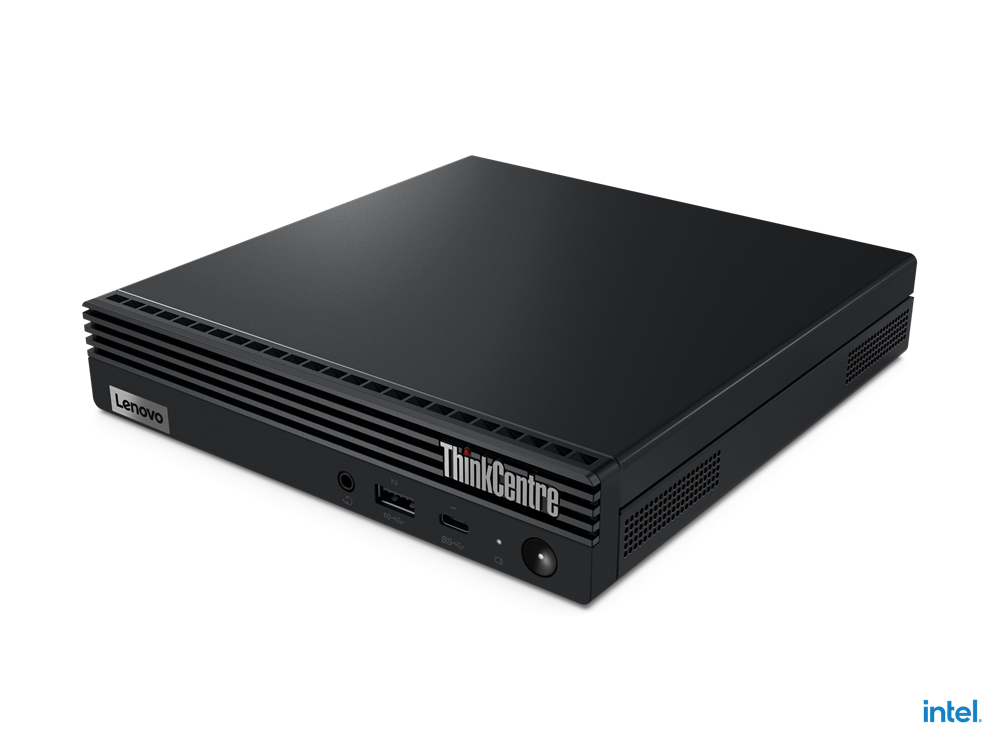

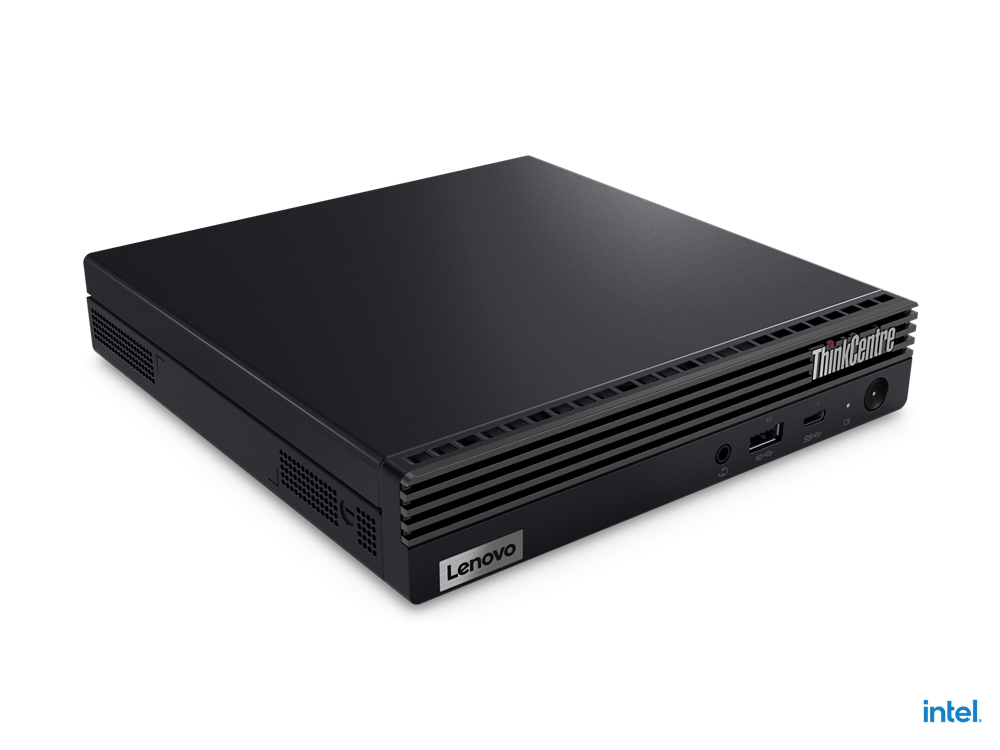

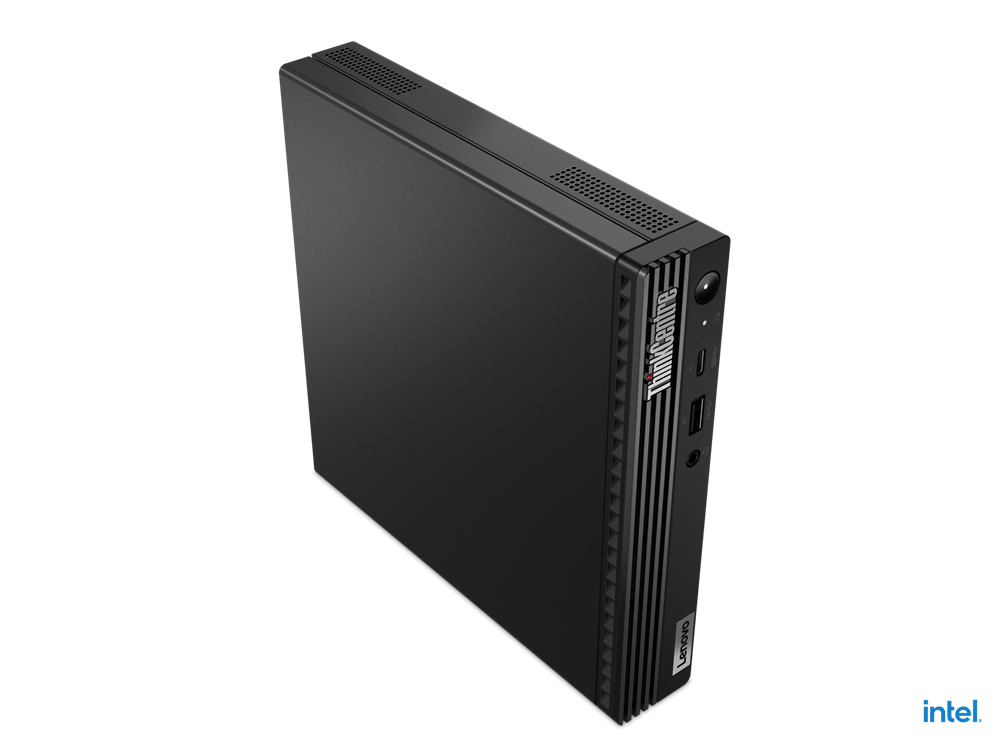

ThinkCentre M60e Intel® Core™ i5 i5-1035G1
16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Mini PC Black
Model M60ePart no. 11LU0003AUEAN 195477406957
88 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- M60e
- Part numbers
- 11LU0003AU, 11LV004UUS, 11LV004TUS, 11LV004NUS, 11LV004QUS, 11LV0053KR +34 more
- EAN / UPC
- 195477406957, 195890220628, 195890220451, 195890221229 +56 more
- Also known as
- Lenovo ThinkCentre M60e Intel® Core™ i5 i5-1035G1 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Mini PC Black
Specifications
88 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-1035G1 |
| Processor cores | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 1 GHz |
| Processor cache | 6 MB |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 1.2 GHz |
| Configurable TDP-down | 13 W |
| Configurable TDP-down frequency | 0.7 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | Intel SoC |
| Password protection | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

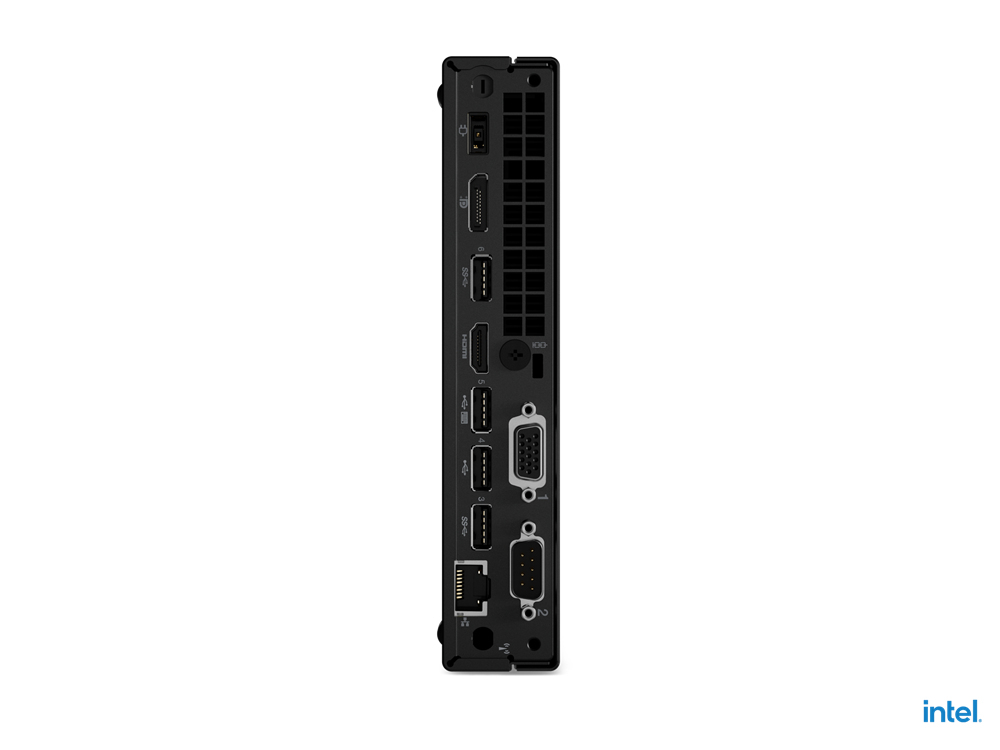

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 1 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Viewing window | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Operating system language | English |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Weight | 1.25 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | MIL-STD-810G |
