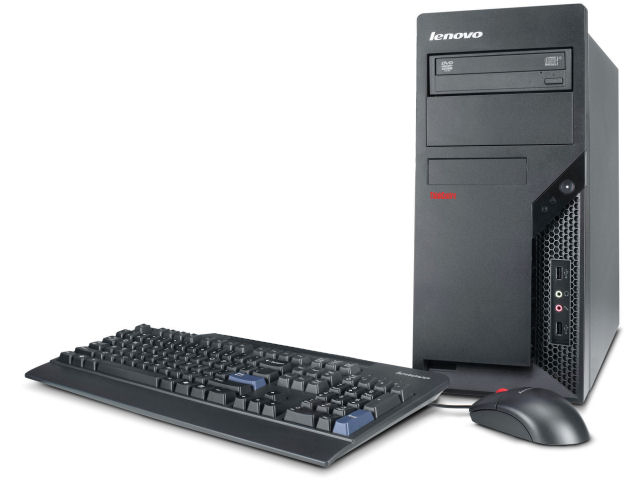

Lenovo M57 Tower

Model M57 TowerPart no. VUZA2SG

110 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage80 GB
GraphicsIntel® GMA 3100
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 80 GB
Graphics: Intel® GMA 3100
Type: PC
OS: Windows Vista Business

Brand: Lenovo
Category: PCs/Workstations
Model: M57 Tower
Part numbers: VUZA2SG, VUZA2DK, VUZA2IX, VUZA2CW, VUZA2HN, VUZA2PO +2 more
Also known as: Lenovo ThinkCentre M57 Tower Intel® Core™2 Duo E6550 1 GB DDR2-SDRAM 80 GB Intel® GMA 3100 Windows Vista Business PC Black

Specifications

110 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6550
Processor cores	2
Processor threads	2
Processor frequency	2.33 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	7
Stepping	G0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	4x DIMM

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD-ROM
Number of HDDs installed	1
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Floppy drive installed	No

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3100
Graphics card family	Intel

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power requirements	110/220V, 50/60Hz
Power supply	280 W

Design

Specification	Value
Chassis type	Tower
Number of 5.25" bays	2
Product colour	Black

Software

Specification	Value
Operating system installed	Windows Vista Business
Operating system architecture	32-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30783
Processor code	SLA9X
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	HDA

Weight & dimensions

Specification	Value
Width	175 mm
Depth	440 mm
Height	402 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
HDD user password	Yes
Intel segment tagging	Enterprise, Professional
