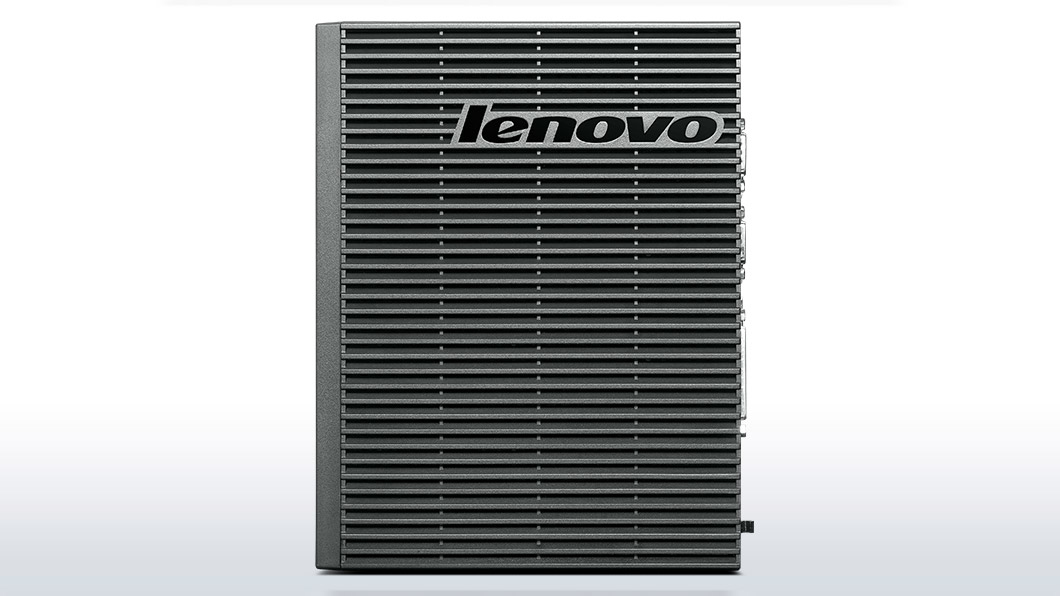

Lenovo ThinkCentre M32 Intel® Celeron® 807

2 GB DDR3-SDRAM Windows Embedded Standard 7 USFF PC Black

Model M32Part no. 10BM000MUSEAN 888228437576

123 specifications

ProcessorIntel® Celeron®
Memory2 GB
GraphicsNot available
TypePC
OSWindows Embedded Standard 7
Weight1.48 kg

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Graphics: Not available
Type: PC
OS: Windows Embedded Standard 7
Weight: 1.48 kg

Brand: Lenovo
Category: PCs/Workstations
Model: M32
Part numbers: 10BM000MUS, 10BM0002US, 10BM0009US, 10BM000AUS
EAN / UPC: 888228437576, 887942936013, 887942946531, 887942946807
Also known as: Lenovo ThinkCentre M32 Intel® Celeron® 807 2 GB DDR3-SDRAM Windows Embedded Standard 7 USFF PC Black

Specifications

123 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	807
Processor cores	1
Processor threads	2
Processor frequency	1.5 GHz
Processor cache	1.5 MB
Processor cache type	L3
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 800 Series for Mobile
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1023
CPU multiplier (bus/core ratio)	15
Stepping	J1
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	1x SO-DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Optical drive type	No
HDD interface	SATA II

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	950 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® NM70 Express
Password protection	Yes
Password protection type	Power on, Supervisor

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

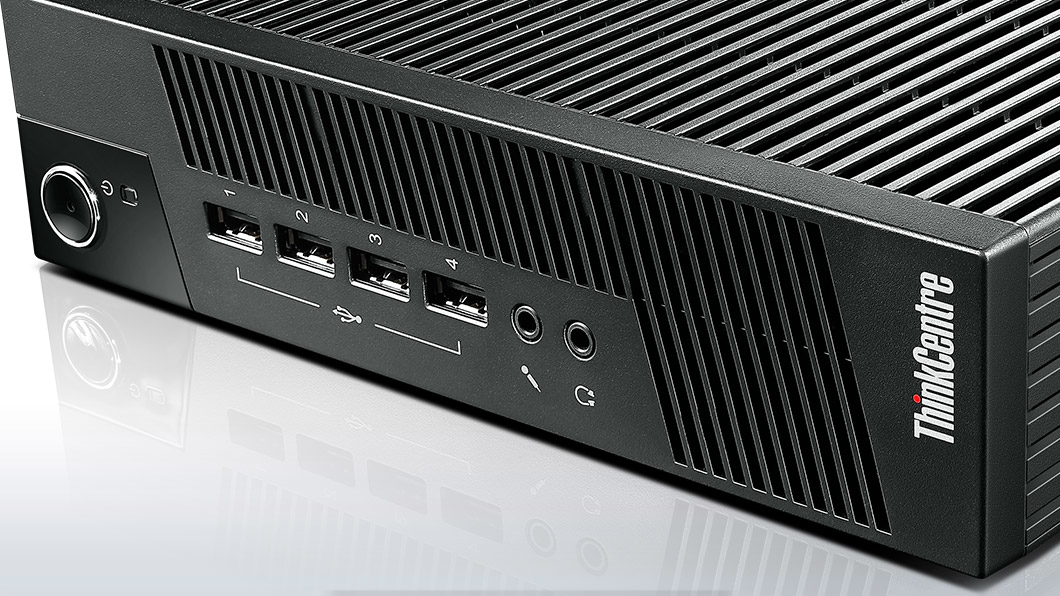

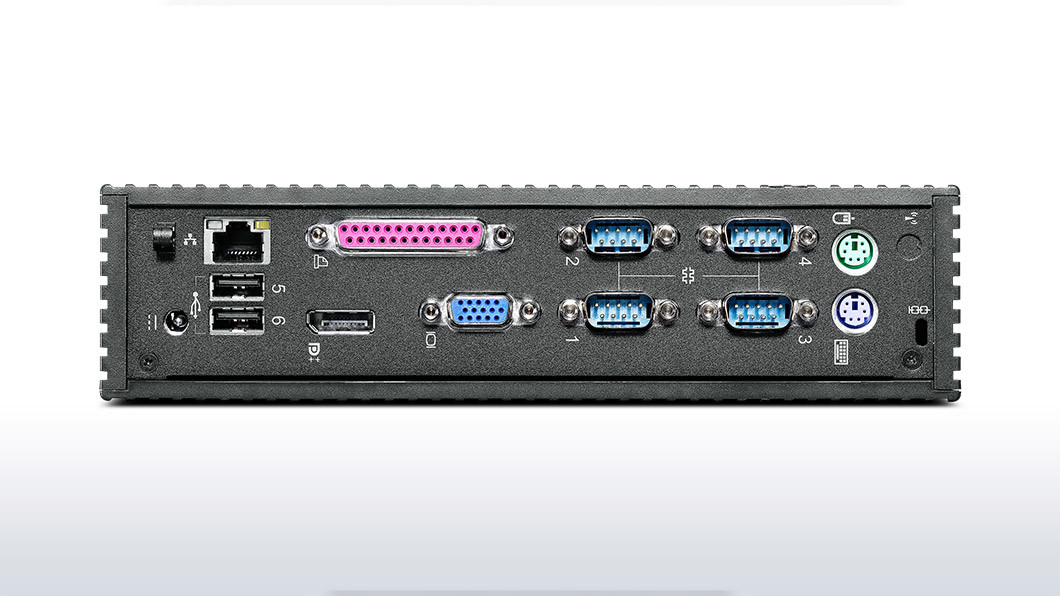

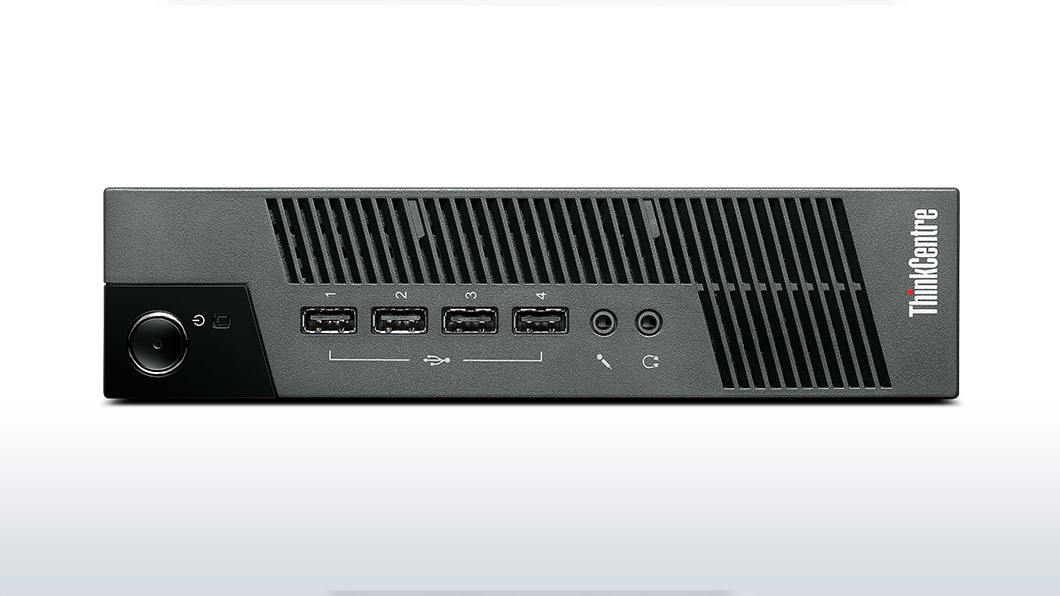

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	USFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows Embedded Standard 7
Bundled software	Microsoft Silverlight .Net Framework Microsoft Management Console WMI Support IE Flash Search Indexing Windows inbox codecs

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	67818
Processor code	SR0PW
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	SSE4.x
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
Integrated 4G WiMAX	No

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	55 mm
Depth	170 mm
Height	220 mm
Weight	1.48 kg

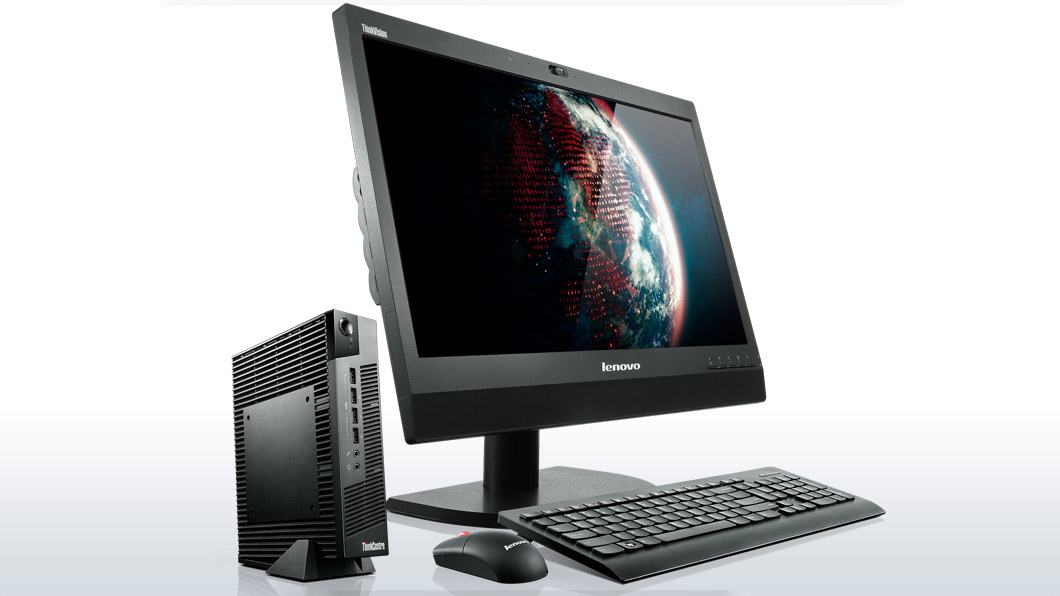

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	GREENGUARD WEEE REACH VMWare Citrix Ready/HDX MS RemoteFX

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Intel segment tagging	Enterprise, Professional
