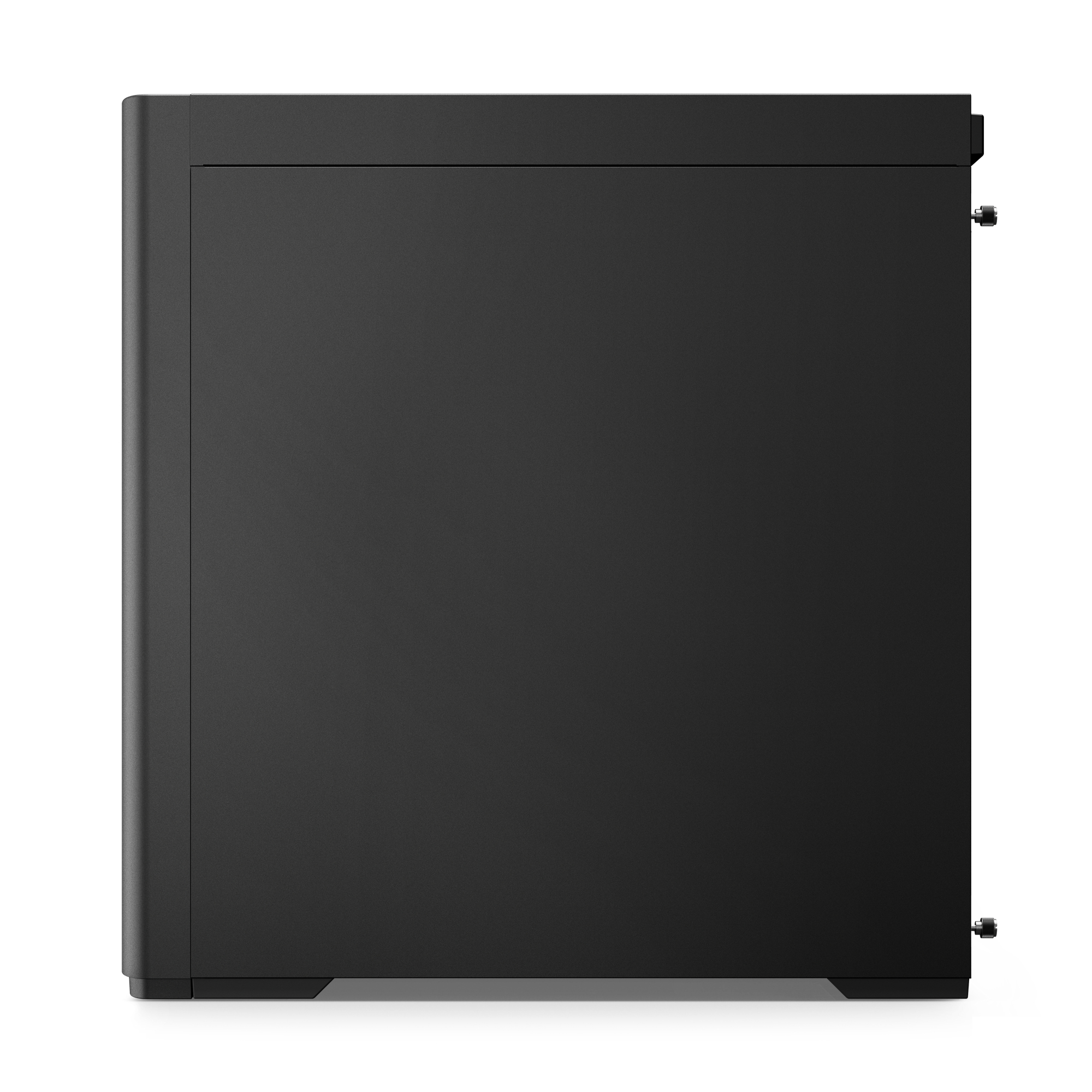

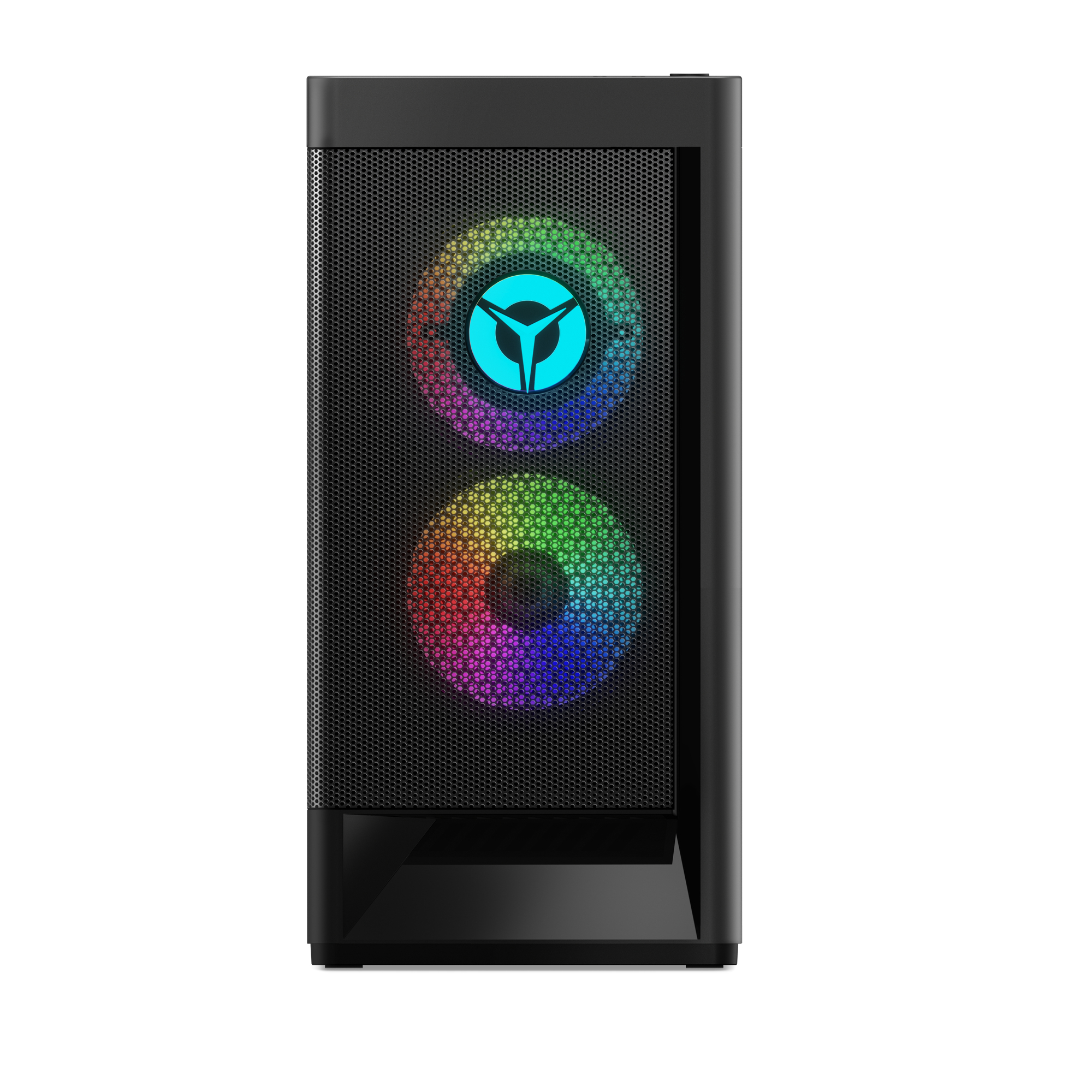

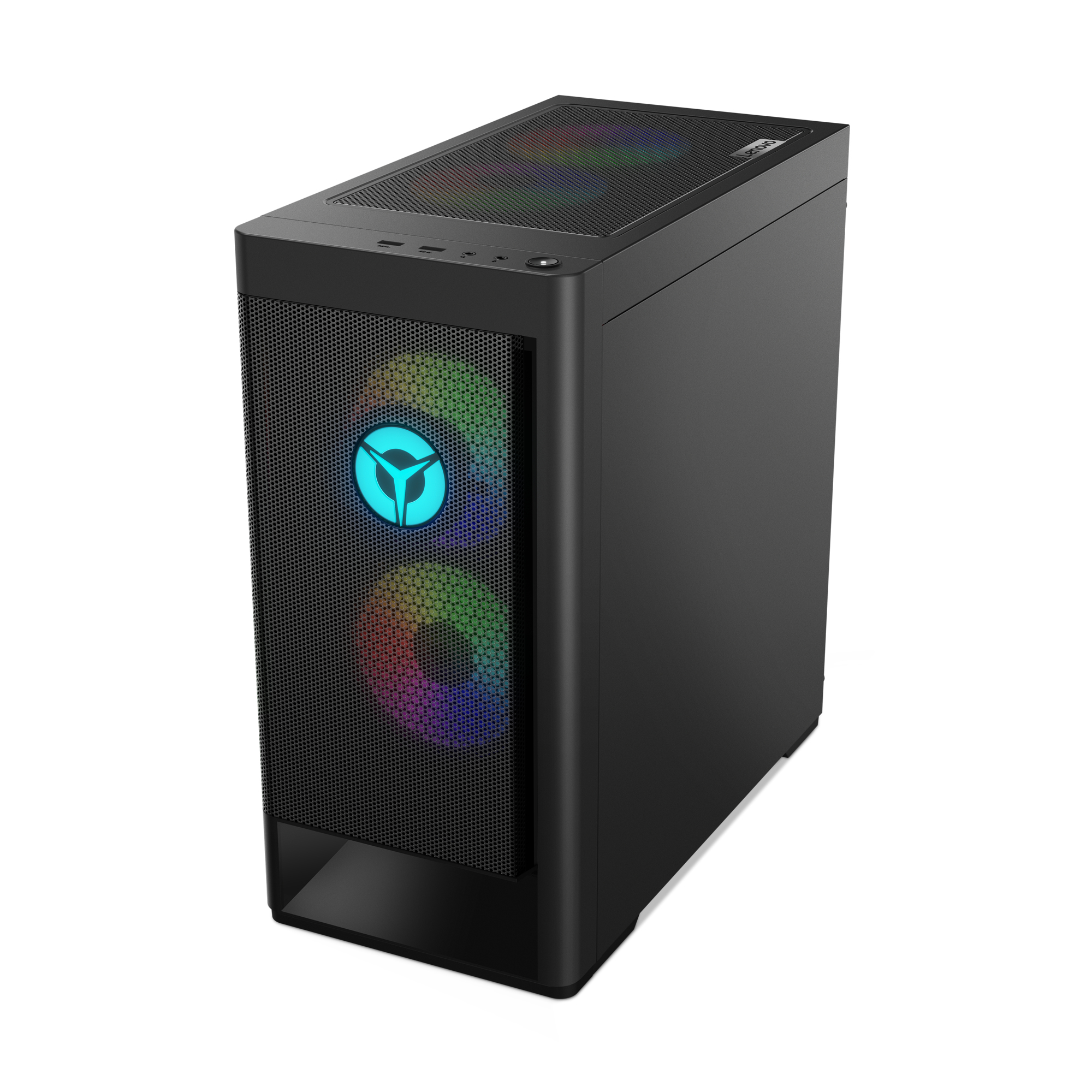

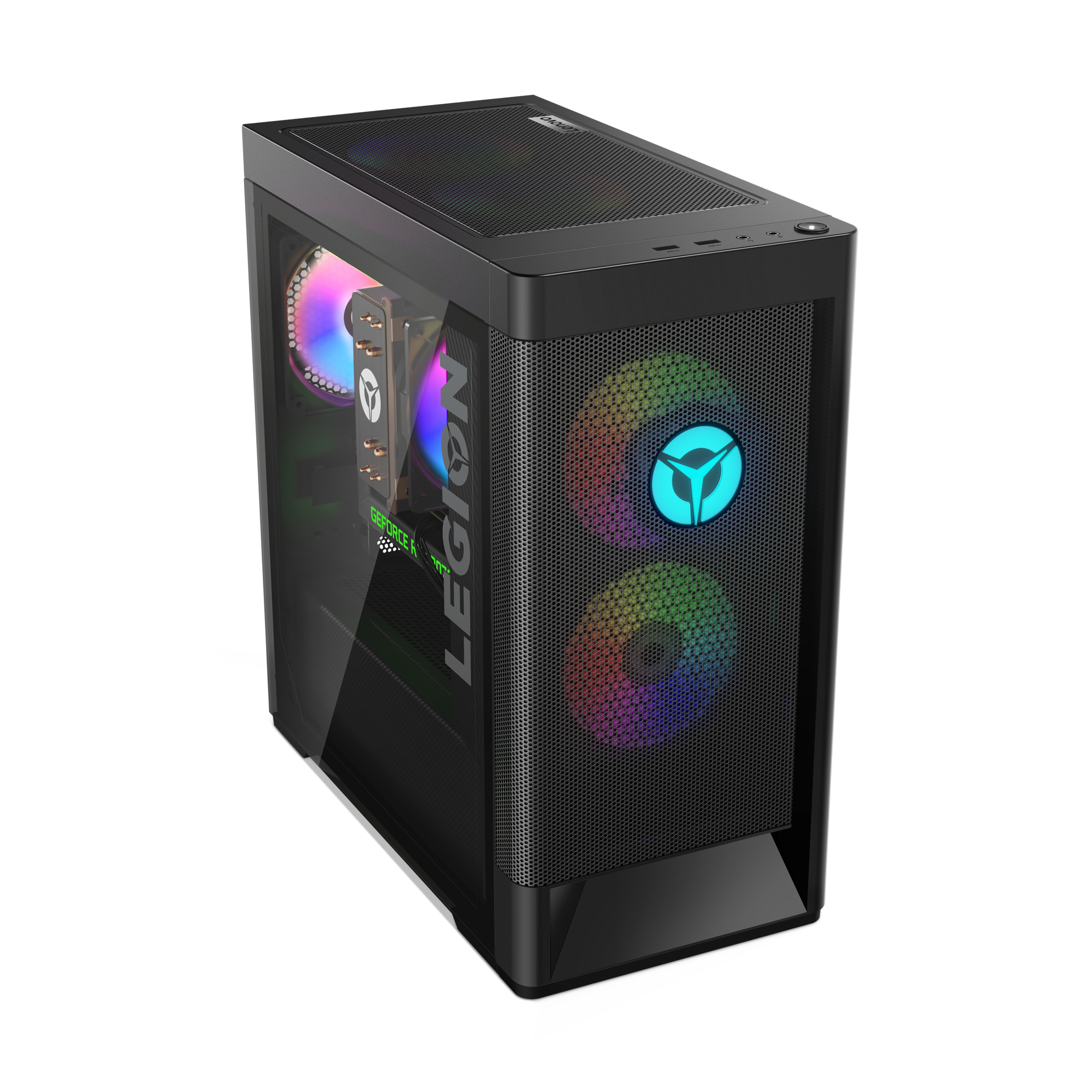

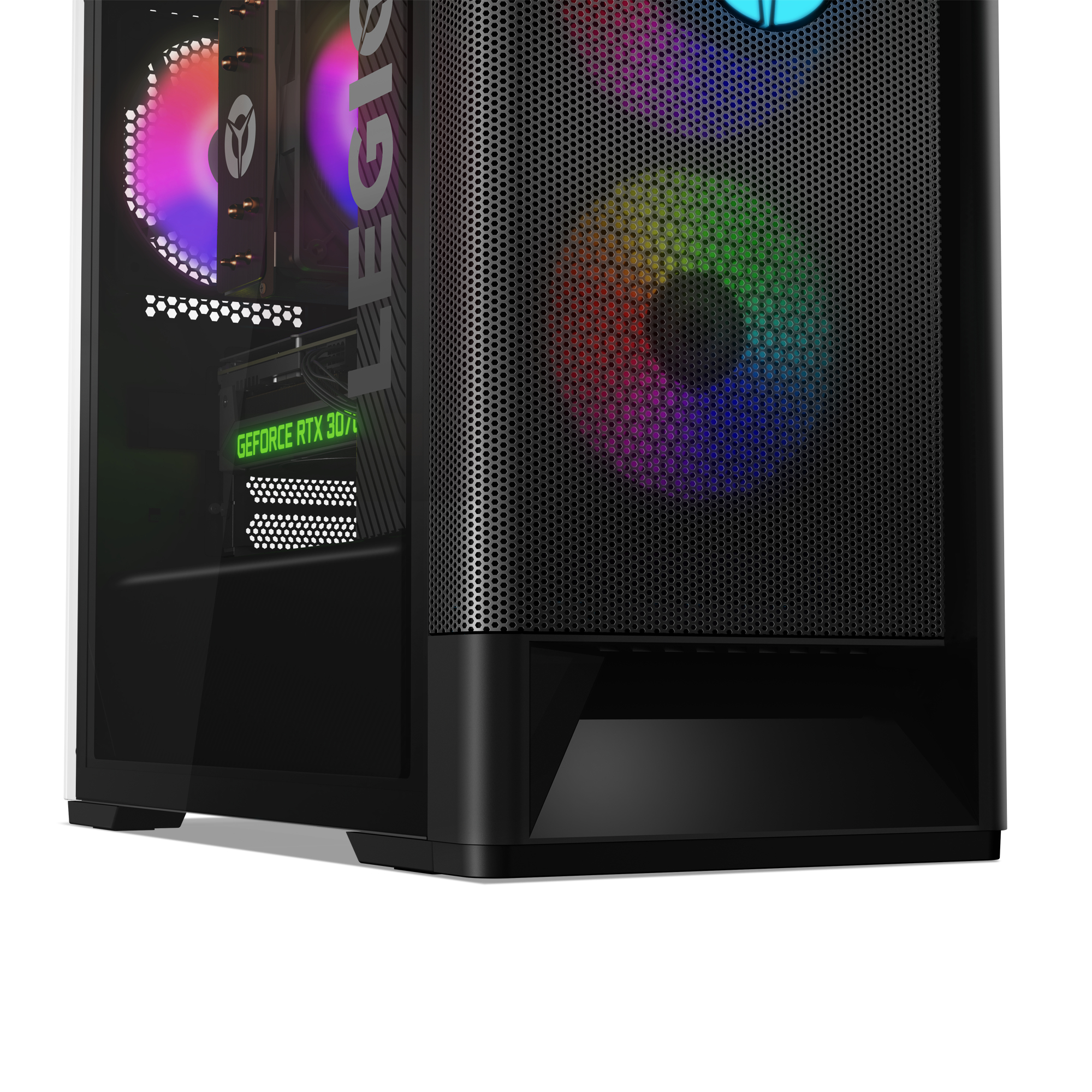

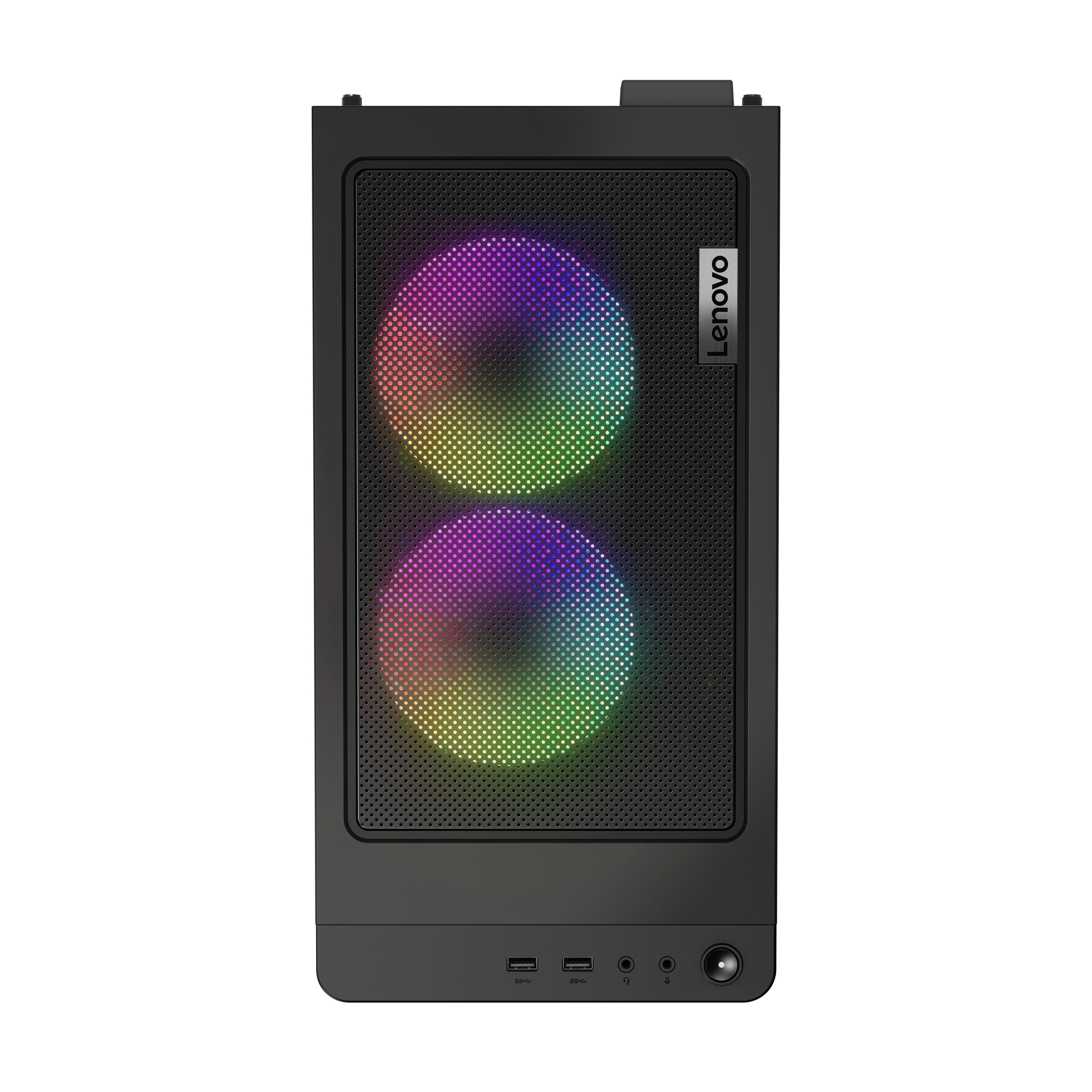

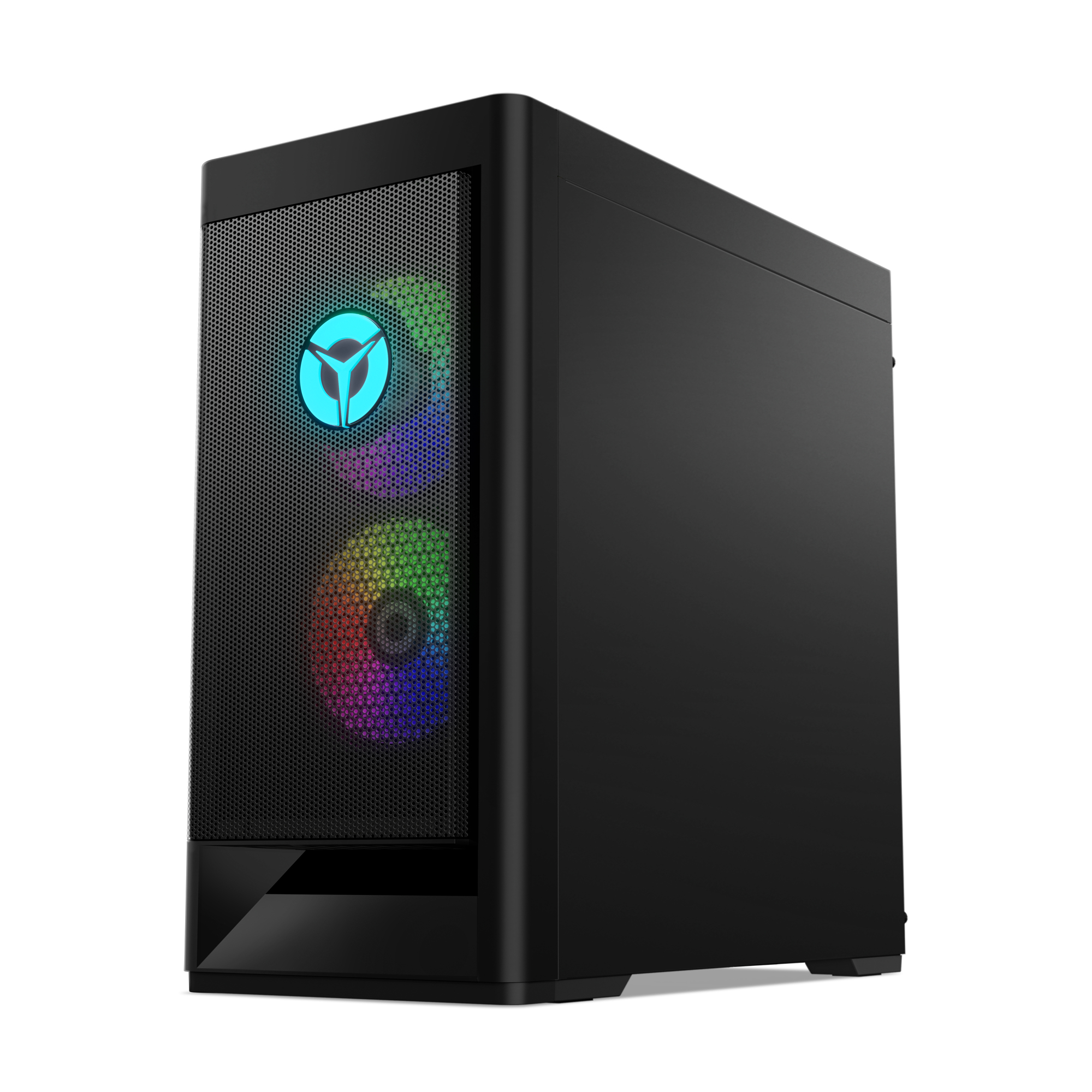

Legion T5 26IAB7
Model Legion T5 26IAB7Part no. 90SV00E4IXEAN 196800817686
69 specifications
- ProcessorIntel® Core™ i7
- Memory32 GB
- Storage2.51 TB
- GraphicsNVIDIA GeForce RTX 3070
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 32 GB
- Storage
- 2.51 TB
- Graphics
- NVIDIA GeForce RTX 3070
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- Lenovo
- Category
- PCs/Workstations
- Model
- Legion T5 26IAB7
- Part numbers
- 90SV00E4IX, 90SV003GST, 90SV005LST, 90SV003VGE, 90SV003XGE, 90SV003SGE
- EAN / UPC
- 196800817686, 196119492581, 196119977767, 196119643570 +2 more
- Also known as
- Lenovo Legion T5 26IAB7 Intel® Core™ i7 i7-12700F 32 GB DDR5-SDRAM 2.51 TB HDD+SSD NVIDIA GeForce RTX 3070 Windows 11 Home Tower PC Black
Specifications
69 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor model | i7-12700F |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.1 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.51 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | No |

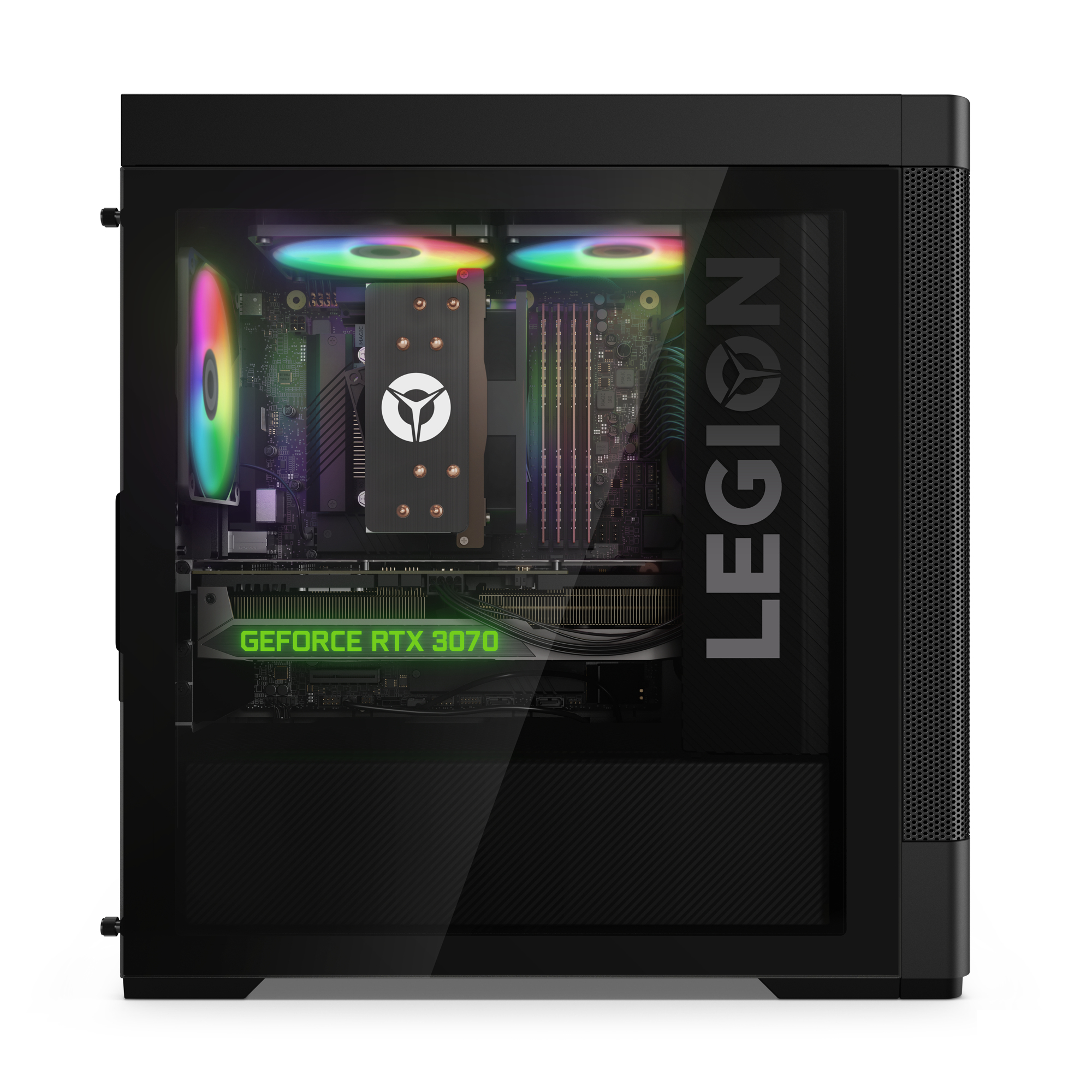

Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel B660 |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

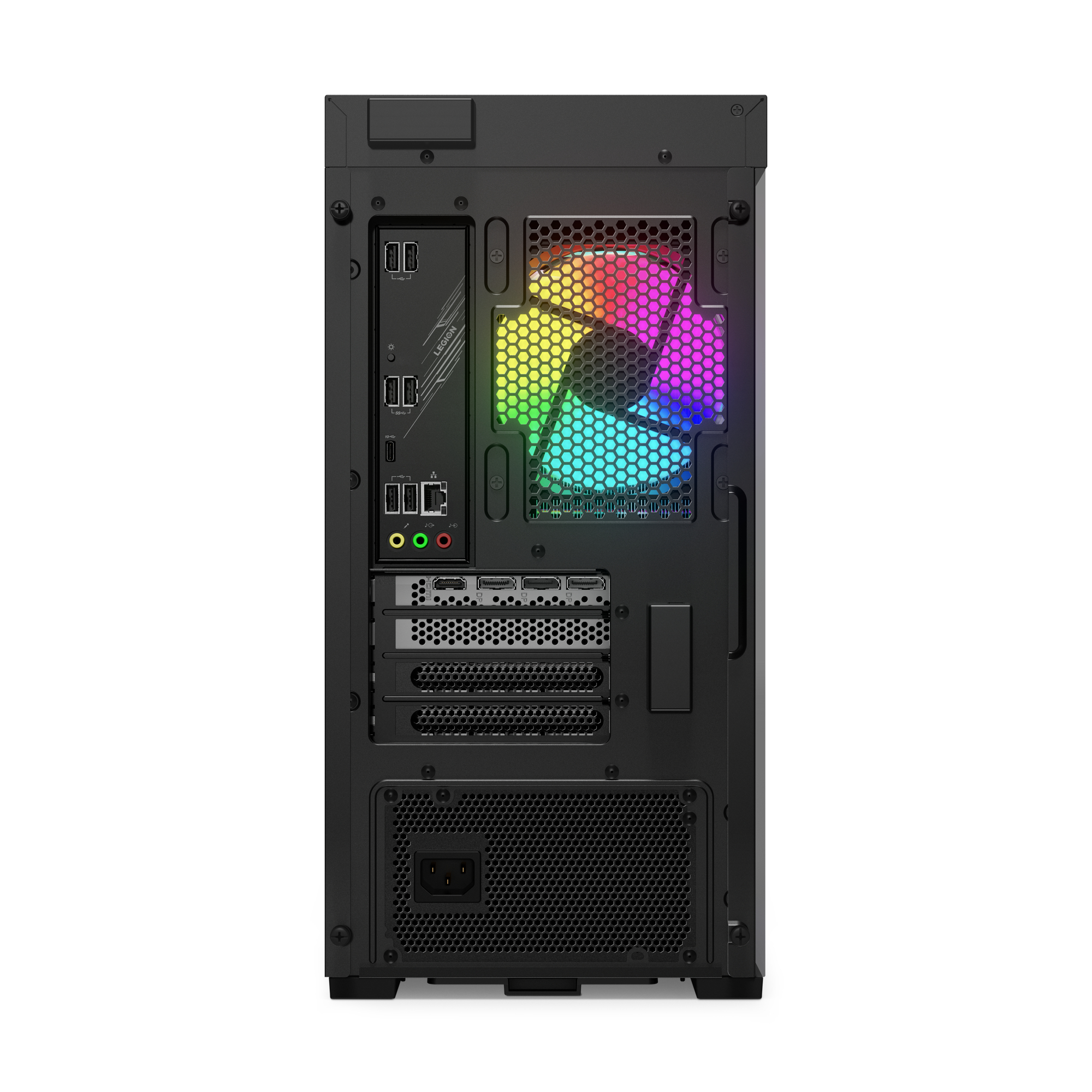

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Volume | 26 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system language | English |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897-Q |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 205 mm |
| Depth | 395.4 mm |
| Height | 420 mm |
| Weight | 14 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
